DROP 28 LED
DROP 28 LED
DROP 28 LED - 1
DROP 28 LED - 2

DROP 28 LED

Part number 303468
  • Wall and ceiling mounted luminaire for indoor and outdoor, comprising:
  • - Housing manufactured from technopolymer
  • - Pressed glass diffuser, internally coated, and matt finished outside
  • - Technopolymer silicone sealing gasket
  • - Side entry for 20 mm conduits (drill out holes in housing arrangement)
  • - Chromed steel spring locks to secure the diffuser to housing
  • - Self-adhesive pictograms available as accessory (ordered separately)
  • - Design by ROBERTO FIORATO

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
2226
Luminaire lumen output
[lm]:
1336
Luminaire
wattage [W]:
16 W
Luminous efficacy [lm/W]:
84
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP55
IK-J-xxIP:
IK06 1J xx3
Protection class:
II
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
2.336
Overall diameter [mm]:
276
Overall width [mm]:
99

Mechanical features

Shape:
Round 150 ≤ x ≤ 300 mm
Housing material:
Plastic
Diffuser material:
Glass
Glow wire test [°C]:
750 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
5 / 50
C10 1.5 mm²:
52
C16 2.5 mm²:
85
B10 1.5 mm²:
31
B16 2.5 mm²:
50

Installation

Application area:
Outdoor
Mounting type:
Wall / Ceiling surface
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
25

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct

Photometric data

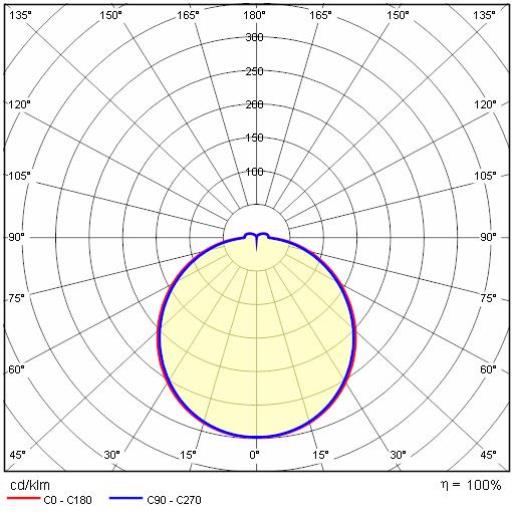

Photometric Lvk DROP 28 LED 1

Technical drawings

Tech Design DROP 28 LED 1++

Optional accessories

DROP 28

Part number Colour /
Finishing		 Description Downloads
Right
008350
Right
Left
008351
Left
Up/Right
008352
Up/Right
Up/Left
008353
Up/Left
Down/Right
008354
Down/Right
Down/Left
008355
Down/Left
Arrow
008356
Arrow
Exit
008357
Exit
