DROP 22 LED
DROP 22 LED
DROP 22 LED - 1
DROP 22 LED - 2

DROP 22 LED

Part number 303472
  • Wall and ceiling mounted luminaire for indoor and outdoor, comprising:
  • - Housing manufactured from technopolymer
  • - Pressed glass diffuser, internally coated, and matt finished outside
  • - Class II
  • - Technopolymer silicone sealing gasket
  • - Side entry for 20 mm conduits (drill out holes in housing arrangement)
  • - Chromed steel spring locks to secure the diffuser to housing
  • - Self-adhesive pictograms available as accessory (ordered separately)
  • - LED SMD versions are complete with mid-power boards
  • - Design by ROBERTO FIORATO

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
1214
Luminaire lumen output
[lm]:
758
Luminaire
wattage [W]:
11 W
Luminous efficacy [lm/W]:
69
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP55
IK-J-xxIP:
IK06 1J xx3
Protection class:
II
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
1.792
Overall diameter [mm]:
228
Overall width [mm]:
95

Mechanical features

Shape:
Round 150 ≤ x ≤ 300 mm
Housing material:
Plastic
Diffuser material:
Glass
Glow wire test [°C]:
750 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
5 / 50
C10 1.5 mm²:
52
C16 2.5 mm²:
85
B10 1.5 mm²:
31
B16 2.5 mm²:
50

Installation

Application area:
Outdoor
Mounting type:
Wall / Ceiling surface
Min. ambient temperature [°C]:
-25
Max. ambient temperature [°C]:
25

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct

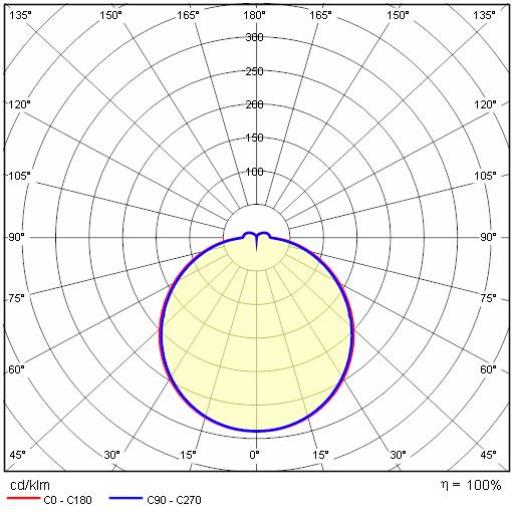

Photometric data

Photometric Lvk DROP 22 LED 1

Technical drawings

Tech Design DROP 22 LED 1++

Optional accessories

DROP 22

Part number Colour /
Finishing		 Description Downloads
Arrow
008342
Arrow
Extinguisher
008343
Extinguisher
Man
008344
Man
Woman
008345
Woman
Disabled
008346
Disabled
Toilet
008347
Toilet
