PADO 900
PADO 900
PADO 900
PADO 900 - 1
PADO 900 - 2
PADO 900 - 3

PADO 900

Part number 304088
  • Series of LED landscaping outdoor bollard and pole-top luminaires, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Internally frosted glass diffuser
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - IP-rated external socket-plug fast connector (QUICK), complete with factory pre-wired cable
  • - Stainless steel locking hardware
  • - Polyester powder coat finish extruded aluminium post (H 900 mm) with base plate for the PADO 900 model
  • - Design by ALESSANDRO PEDRETTI

Product data

ETIM Group:
EG000027
ETIM Class:
EC000301

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
1974
Luminaire lumen output
[lm]:
1080
Luminaire
wattage [W]:
20 W
Luminous efficacy [lm/W]:
54
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP65
Impact resistance / impact energy:
IK05 0.7J xx3
Protection class:
I
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
2.333
Overall diameter [mm]:
208
Overall height [mm]:
959

Mechanical features

Shape:
Round 150 ≤ x ≤ 300 mm
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
5 / 50
C10 1.5 mm²:
52
C16 2.5 mm²:
85
B10 1.5 mm²:
31
B16 2.5 mm²:
50

Installation

Application area:
Outdoor
Mounting type:
Posts / garden co-ords
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
35

Light features

MacAdam:
3
Lumen maintenance:
L80B10@60000h
Distribution of light emission:
Direct
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):

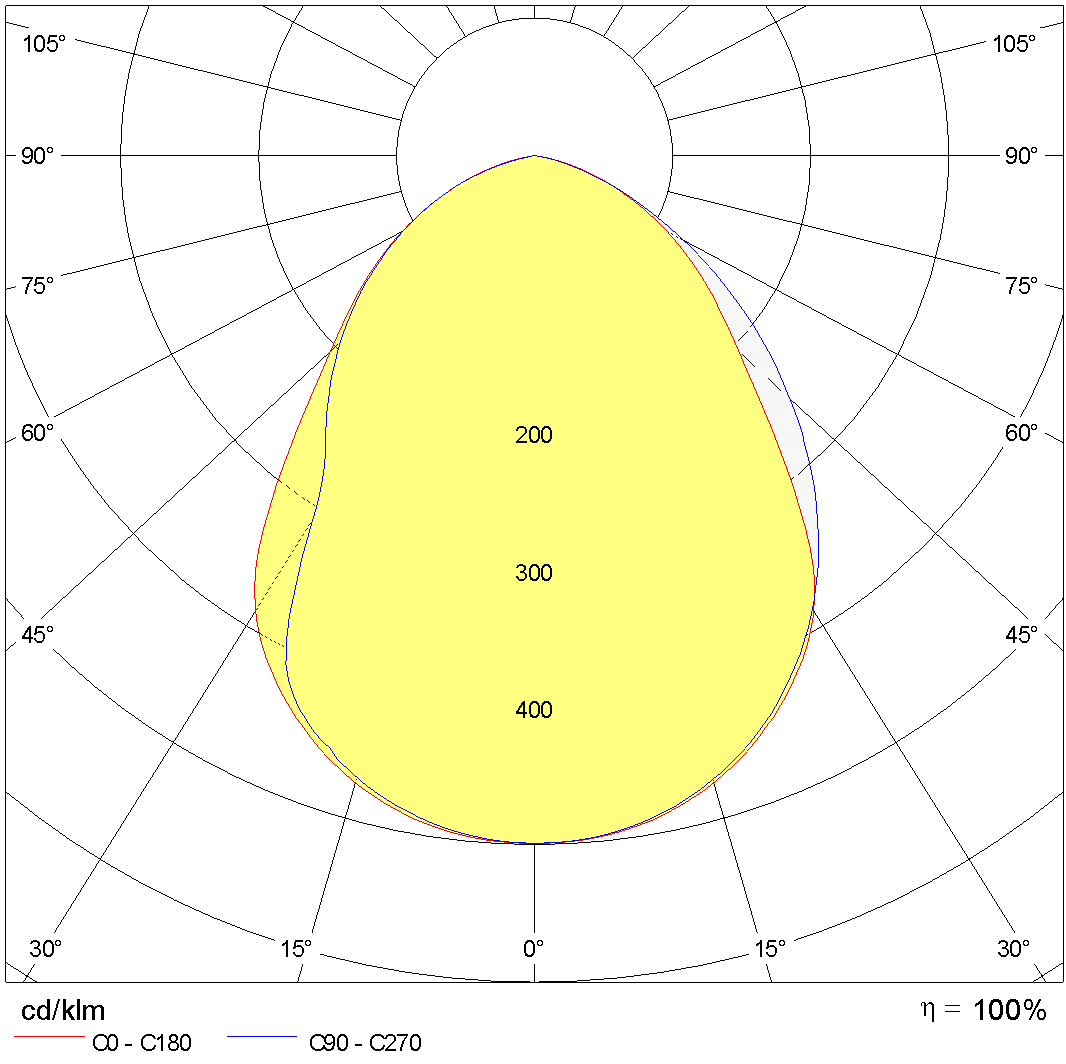

Photometric data

Photometric Lvk PADO 900 1

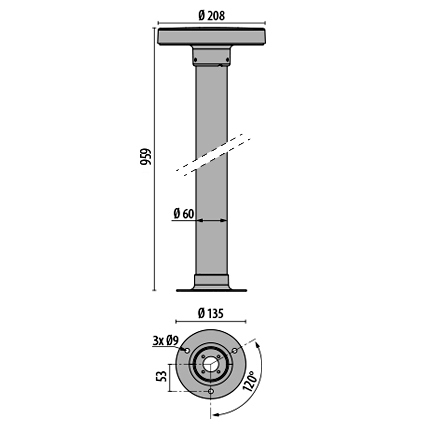

Technical drawings

Tech Design PADO 900 1++
