INSERT+ 1
INSERT+ 1 - 1

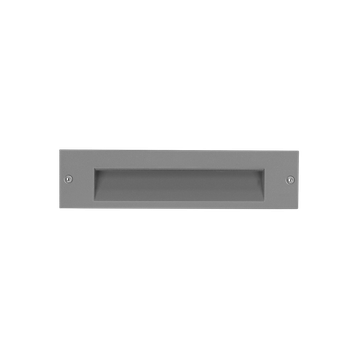

INSERT+ 1

Part number 304116
  • Wall recessed luminaire, for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Inner satin toughened flat glass diffuser
  • - EPDM sealing gasket
  • - IP-rated external socket-plug fast connector (QUICK), complete with factory pre-wired cable
  • - Electrical connector for cables Ø 7 - Ø 12 mm
  • - Stainless steel locking hardware
  • - Recessed box to be ordered separately
  • - The recessed box removable cover features two integral spirit levels for installation ease

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
825
Luminaire lumen output
[lm]:
250
Luminaire
wattage [W]:
6 W
Luminous efficacy [lm/W]:
42
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP65
IK-J-xxIP:
IK07 2J xx5
Protection class:
I
Optic:
Asymmetric Medium
Net weight [kg]:
0.461
Overall length [mm]:
224
Overall width [mm]:
64
Overall height [mm]:
55

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC/DC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
0/50/60
Power factor / COS Φ:
0.6
Input voltage [V DC]:
176/264
Inrush current [A/μs]:
20 / 170
C10 1.5 mm²:
52
C16 2.5 mm²:
85
B10 1.5 mm²:
31
B16 2.5 mm²:
50

Installation

Application area:
Outdoor
Mounting type:
Step lighting
Min. ambient temperature [°C]:
-10
Max. ambient temperature [°C]:
35

Light features

MacAdam:
3
Lumen maintenance:
L80B10@60000h
Distribution of light emission:
Direct

Photometric data

Technical drawings

Tech Design INSERT+ 1 1++

Mandatory accessories

INSERT+ 1

Part number Colour /
Finishing
Description Downloads
Recessed box INSERT+ 1
310475
Recessed box INSERT+ 1
Downloads

Optional accessories

INSERT+ 1

Part number Colour /
Finishing
Description Downloads

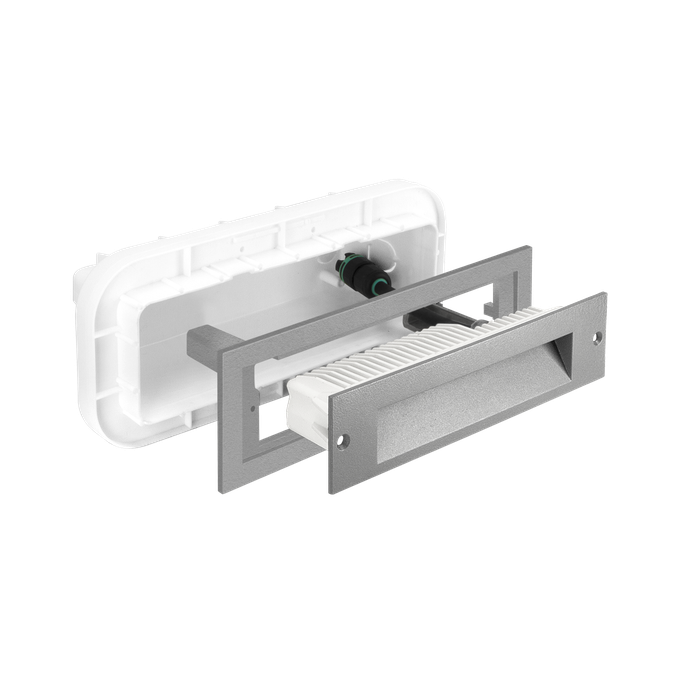

Adaptor INSERT+ 1 (retrofit kit Insert 1)
310477
Adaptor INSERT+ 1 (retrofit kit Insert 1)
Downloads
