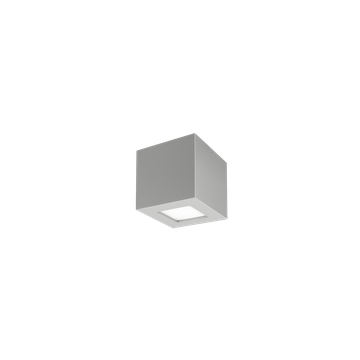

QUASAR 10 CEILING
QUASAR 10 CEILING - 1

QUASAR 10 CEILING

Part number 304487
  • Ceiling surface mounted LED luminaire, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Inner satin toughened flat glass diffuser
  • - Foam polymer sealing gasket
  • - Built-in driver
  • - Stainless steel locking hardware
  • - Openable and maintainable luminaire (future-proof)

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
500
Luminaire lumen output
[lm]:
268.48
Luminaire
wattage [W]:
5 W
Luminous efficacy [lm/W]:
54
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP40
IK-J-xxIP:
IK06 1J xx3
Protection class:
I
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
0.579
Overall length [mm]:
100
Overall width [mm]:
100
Overall height [mm]:
100

Mechanical features

Shape:
Square ≤ 150 mm
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
230
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
2 / 136
C10 1.5 mm²:
133
C16 2.5 mm²:
173
B10 1.5 mm²:
83
B16 2.5 mm²:
133

Installation

Application area:
Outdoor
Mounting type:
Ceiling surface
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@66800h
Distribution of light emission:
Direct
Zero light pollution (ULR = 0%):

Photometric data

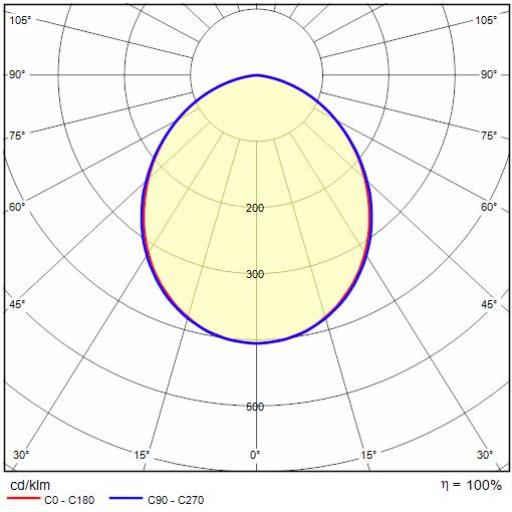

Photometric Lvk QUASAR 10 CEILING 1

Technical drawings

Tech Design QUASAR 10 CEILING 1++
