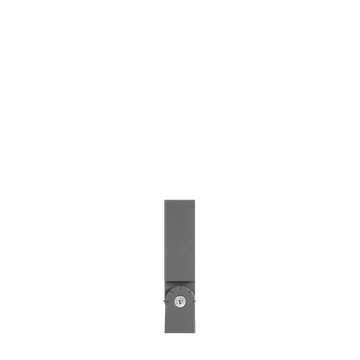

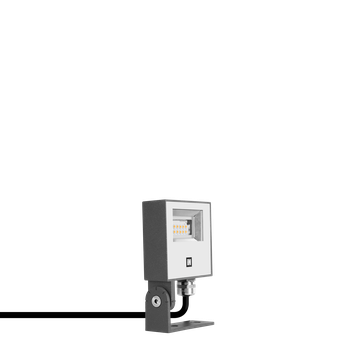

FOCUS+ ZERO S/EW

Part number 304610

LED floodlight for indoor and outdoor, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Adjustable mounting bracket made of die-cast aluminium, painted
- Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
- Aluminium reflector
- Driver On Board 220-240V 50/60Hz LED module protected against surges up to 500 V
- Stainless steel locking hardware
- Waterproof cable gland M16x1.5 for cables Ø 5- Ø 10 mm
- Complete with 1 m factory pre-wired cable H05RN-F 3G1 mm²

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1350

Luminaire lumen output
[lm]:

1106.61

Luminaire
wattage [W]:

9.5 W

Luminous efficacy [lm/W]:

116

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

IK-J-xxIP:

IK06 1J xx3

Protection class:

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

0.4

Overall length [mm]:

Overall width [mm]:

132

Overall height [mm]:

Mechanical features

Shape:

Square ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Glass

Top exposed area [m²]:

0.01

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

2 / 135

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Feature Spot Lights

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.10

Light features

MacAdam:

Lumen maintenance:

L80B10@66800h

Distribution of light emission:

Direct

Zero light pollution (ULR = 0%):

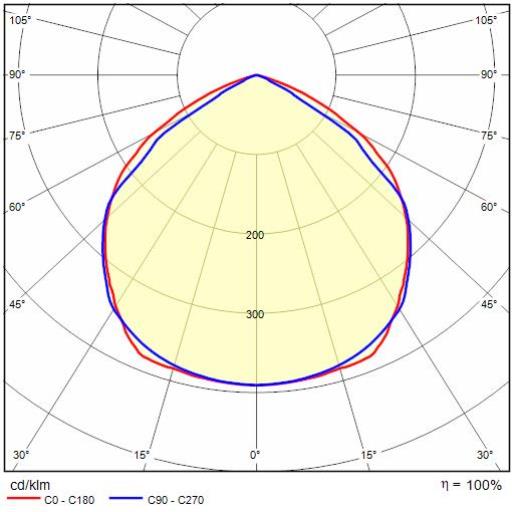

Photometric data

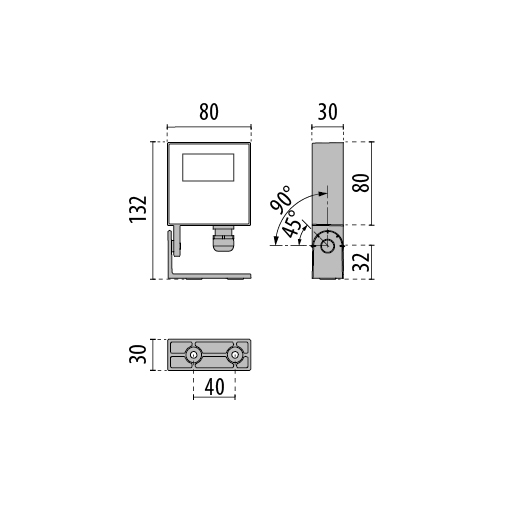

Technical drawings

Optional accessories

FOCUS+ ZERO - FOCUS+ ZERO KIT

	Part number	Colour / Finishing	Description	Downloads
	310496		Connection Kit Y 3-way Ø 7-10.5 mm IP68	Add to technical datasheetRemove from technical datasheet
	310495		Connection Kit Y 3-way Ø 14-17 mm IP68	Add to technical datasheetRemove from technical datasheet
