MIMIK 10 M C/I
MIMIK 10 M C/I
MIMIK 10 M C/I
MIMIK 10 M C/I
MIMIK 10 M C/I - 1
MIMIK 10 M C/I - 2
MIMIK 10 M C/I - 3
MIMIK 10 M C/I - 4

MIMIK 10 M C/I

Part number 304848
  • Wall-mounted LED luminaire, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Built-in driver
  • - Stainless steel locking hardware
  • - Single (M) and dual (B) emission versions available
  • - The MIMIK versions are available with asymmetric (CP) or circular (C/I) optic options. In the dual emission versions (B), the two different beam types are combined.
  • - Optimised asymmetric distribution for wide spacing and lighting-class levels matching (CP options)
  • - Openable and maintainable luminaire (future-proof)

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
561
Luminaire lumen output
[lm]:
398
Luminaire
wattage [W]:
5 W
Luminous efficacy [lm/W]:
80
CRI:
70
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP65
IK-J-xxIP:
IK05 0.7J xx3
Protection class:
I
Optic:
Circular Intensive
Beam
angle:
20°
Net weight [kg]:
0.939
Overall length [mm]:
127
Overall width [mm]:
65
Overall height [mm]:
127

Mechanical features

Shape:
Square ≤ 150 mm
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
5 / 25
C10 1.5 mm²:
64
C16 2.5 mm²:
103
B10 1.5 mm²:
64
B16 2.5 mm²:
103

Installation

Application area:
Outdoor
Mounting type:
Wall surface
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@60000h
Distribution of light emission:
Direct
Zero light pollution (ULR = 0%):

Photometric data

Technical drawings

Tech Design MIMIK 10 M C/I 1++

Optional accessories

P.O.

Part number Colour /
Finishing
Description Downloads

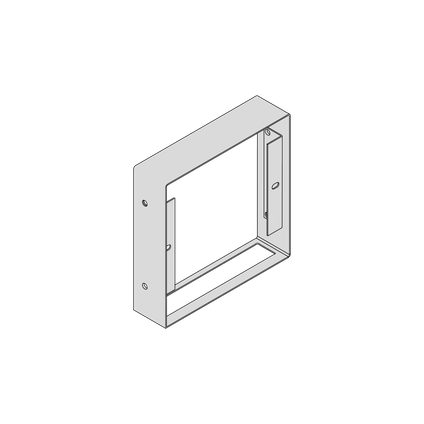

Customising ring / Facade Accessory M
3106887
Customising ring / Facade Accessory M
