OMBRA 1500

Part number 304957

Wall-mounted LED luminaire, comprising:
- Extruded anodised aluminium housing
- Toughened, glass diffuser, silk-screened on the inside
- Stainless steel AISI 304 end caps
- Anti-ageing custom moulded silicone sealing gasket(s)
- Through wiring
- Aluminium heat sink
- Stainless steel locking hardware
- For luminaire installation, please select the appropriate bracket (available as mandatory accessory)
- Built-in driver
- Dimmable DALI options available. Consult factory

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

6064

Luminaire lumen output
[lm]:

4581

Luminaire
wattage [W]:

54 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

GR-11 / Anodised grey / Matt

IP degree
of protection:

IP66

IK-J-xxIP:

IK07 2J xx5

Protection class:

Optic:

S/M - Symmetric Medium

Net weight [kg]:

8.541

Overall length [mm]:

1440

Overall width [mm]:

Overall height [mm]:

100

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

850 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

>0.9

Input voltage [V DC]:

186/250

Inrush current [A/μs]:

21 / 220

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Linear surface

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Zero light pollution (ULR = 0%):

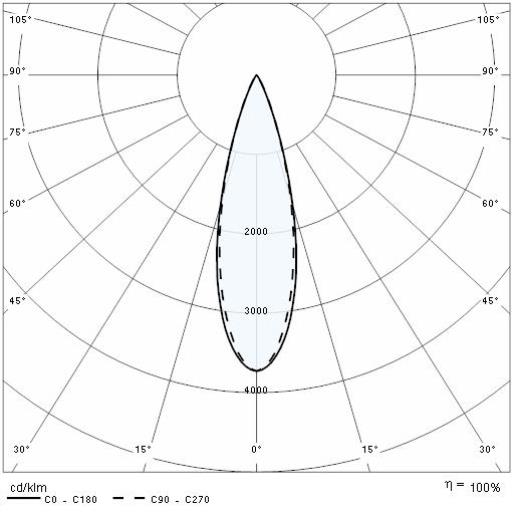

Photometric data

Technical drawings

Mandatory accessories

OMBRA

Part number	Description	Downloads
310522	OMBRA bracket (nr. 2)	Add to technical datasheetRemove from technical datasheet
310524	Bracket (nr. 2)	Add to technical datasheetRemove from technical datasheet
310977	OMBRA telescopic bracket OMBRA (nr. 2)	Add to technical datasheetRemove from technical datasheet Downloads Documentation: OMBRA - 310977
310979	OMBRA ground support bracket (nr. 2)	Add to technical datasheetRemove from technical datasheet Downloads Documentation: OMBRA - 310979

Optional accessories

OMBRA

	Part number	Colour / Finishing	Description	Downloads
	310569		Wire for continuous power supply 3x1.5 mm	Add to technical datasheetRemove from technical datasheet
