FOCUS+1 ELL

FOCUS+1 ELL

FOCUS+1 ELL

FOCUS+1 ELL

FOCUS+1 ELL - 1

FOCUS+1 ELL - 2

FOCUS+1 ELL - 3

FOCUS+1 ELL - 4

FOCUS+1 ELL

Part number 305095

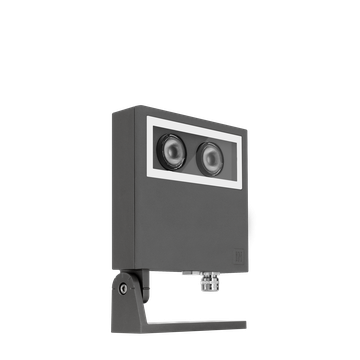

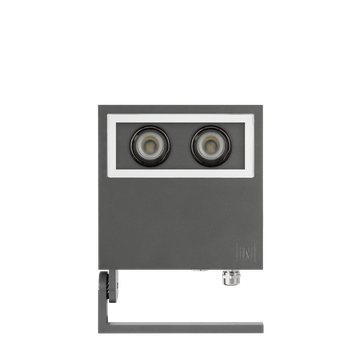

LED floodlight for indoor and outdoor, comprising:
- Die-cast aluminium housing and trim, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Adjustable mounting bracket made of die-cast aluminium, painted
- Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
- Anti-ageing custom moulded silicone sealing gasket(s)
- Stainless steel locking hardware
- Waterproof cable gland M16x1.5 for cables Ø 5- Ø 10 mm
- Technopolymer ground spike available for anchoring to the ground

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1680

Luminaire lumen output
[lm]:

1307

Luminaire
wattage [W]:

18 W

Luminous efficacy [lm/W]:

73

CRI:

70

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP66

IK-J-xxIP:

IK06 1J xx3

Protection class:

I

Optic:

ELL - Elliptical

Beam
angle:

15°x40°

Net weight [kg]:

1.395

Overall length [mm]:

160

Overall width [mm]:

223

Overall height [mm]:

43

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Frontal exposed area [m²]:

0.01

Lateral exposed area [m²]:

0.01

Top exposed area [m²]:

0.03

Electrical features

Voltage type:

AC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 70

C10 1.5 mm²:

41

C16 2.5 mm²:

66

B10 1.5 mm²:

27

B16 2.5 mm²:

44

Installation

Application area:

Outdoor

Mounting type:

Feature Spot Lights

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

40

Min. distance from lighted object [m]:

0.10

Light features

MacAdam:

3

Lumen maintenance:

L70B10@60000h

Distribution of light emission:

Direct

Zero light pollution (ULR = 0%):

Photometric data

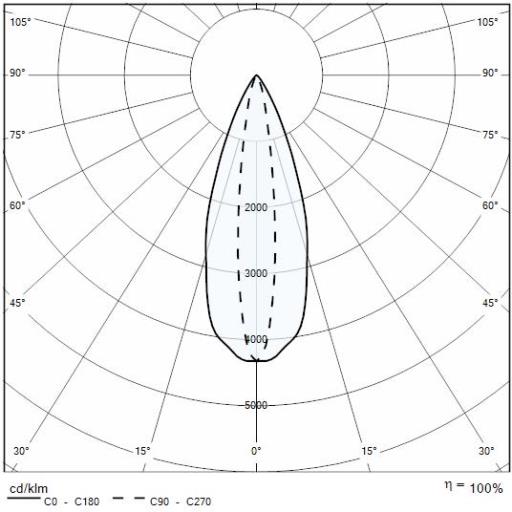

Photometric Lvk FOCUS+1 ELL 1

Technical drawings

Tech Design FOCUS+1 ELL 1++

Optional accessories

FOCUS+ 1

	Part number	Colour / Finishing	Description	Downloads
	700191		Ground spike	Add to technical datasheetRemove from technical datasheet
