AS425 LED MEDIUM REFLECTOR

Part number 8425463173380

LED track light for indoor, comprising:
- Extruded aluminium profile and die-cast aluminium spotlight housing, powder-coated
- Tilting and turning spotlight head
- High-brilliance spherical faceted reflector for maximum performance and neutral colour rendering index
- Bayonet-closure ring for a toolless replacement of the reflector and the louvre
- Reflector in Medium design
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Universal tri-phase adaptor included
- Built-in driver
- Quick and toolless installation
- Clear safety glass
- The luminaire is suitable for installation on standard tracks such as EUROSTANDARD PLUS®

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2580

Luminaire lumen output
[lm]:

2160

Luminaire
wattage [W]:

20 W

Luminous efficacy [lm/W]:

108

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

BK-RAL9005 / Black RAL9005 / Textured

IP degree
of protection:

IP20

IK-J-xxIP:

IK02 0.2J xx0

Protection class:

Optic:

C/M - Circular Medium

Beam
angle:

2 x 15°

Net weight [kg]:

0.986

Overall diameter [mm]:

Overall length [mm]:

119

Overall width [mm]:

Overall height [mm]:

208

Mechanical features

Shape:

Round ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Transparent glass

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

EEI:

Installation

Application area:

Indoor

Mounting type:

Track lights

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.10

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

DFF - Downward Flux Fraction [%]:

100

UFF - Upward Flux Fraction [%]:

Photometric data

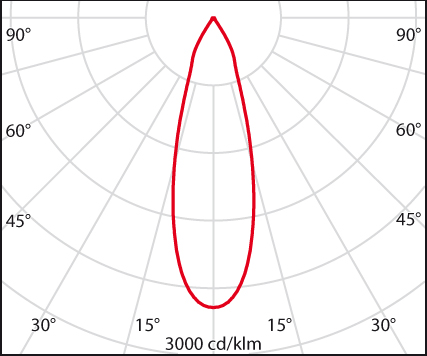

Photometric Lvk AS425 LED MEDIUM REFLECTOR 1

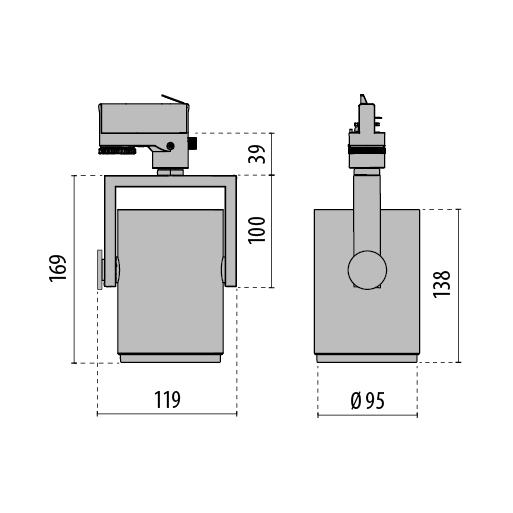

Technical drawings

Optional accessories

AS425 LED

Part number	Description	Downloads
8414900	Frosted safety glass pane	Add to technical datasheetRemove from technical datasheet
8433961	Food glass filter for meat products	Add to technical datasheetRemove from technical datasheet
8433962	Food glass filter for bakery products	Add to technical datasheetRemove from technical datasheet
8433963	Food glass filters for fruits and cheese	Add to technical datasheetRemove from technical datasheet
8433964	Food glass filter for vegetables	Add to technical datasheetRemove from technical datasheet
8433965	Food glass filter for fish products	Add to technical datasheetRemove from technical datasheet
