FL ROUND+ 777 PL MP DIRECT

Part number 3124391

Suspended, round LED luminaire for indoor, comprising:
- Housing made from sheet steel and die-cast aluminium, powder-coated
- Future-proof thanks to simple revisions (replaceable light engine and converter)
- Micro-prismatic diffuser for efficient light distribution, glare reduction and high uniformity (MP)
- LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
- Direct light distribution
- Depending on the version, glare-free light for office applications in accordance with DIN EN 12464-1 (UGR<19 and <3000cd/m² >65°)
- In the tunable white version, the illuminance level and light colour can be manually adjusted from 2700K to 6500K (DALI DT8)
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Built-in driver
- Complete with steel suspension cable (1.5 m), transparent power cable and canopy

Documentation

Documentation
Technical Datasheets
Instruction sheets
Tender Text

2D / 3D
3D .3ds

Photometric data
Polar Diagram .jpg
Photometric file .ies
Photometric file .ldt
DIALUX .uld
Select items to download
Send by email
Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC001743

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

11640

Luminaire lumen output
[lm]:

8670

Luminaire
wattage [W]:

67 W

Luminous efficacy [lm/W]:

129

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

WH-RAL9016 / White RAL9016 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

S/A - Symmetric direct

Beam
angle:

2 x 45/45

Net weight [kg]:

7.993

Overall diameter [mm]:

725

Overall height [mm]:

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 0/50/60Hz

Power factor / COS Φ:

>0.9

Installation

Application area:

Indoor

Mounting type:

Suspended

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

DFF - Downward Flux Fraction [%]:

100

UFF - Upward Flux Fraction [%]:

UGR max.:

21.0

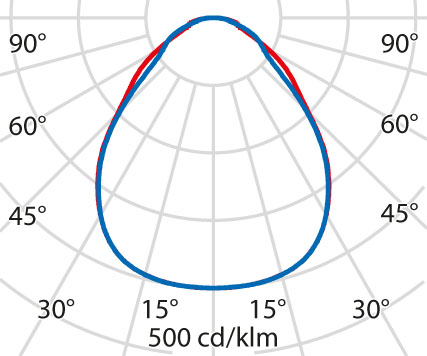

Photometric data

Photometric Lvk FL ROUND+ 777 PL MP DIRECT 1

Technical drawings

Optional accessories

FL ROUND+ 777 PL

Part number	Description	Downloads
3122584	Casambi module for installation	Add to technical datasheetRemove from technical datasheet
3122586	Single wireless wall switch	Add to technical datasheetRemove from technical datasheet
3122587	Double wireless wall switch	Add to technical datasheetRemove from technical datasheet
