PLATO 600 MULTIPOWER

Part number 3117957

Ultra-flat LED luminaire, includes:
- Extruded aluminium profile, powder-coated mounting frame
- Microprism technopolymer diffuser for efficient light diffusion, reduced glare and high uniformity
- UGR<19
Options:
- Optional fixing clamps for suspended ceiling mounting
- Installation kit for ceiling mounting available

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

3550/4440/5180/5840

Luminaire lumen output
[lm]:

2894/3623/4230/4766

Luminaire
wattage [W]:

22/28/33/38 W

Luminous efficacy [lm/W]:

132

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

WH-87 / White / Textured

IP degree
of protection:

IP40

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

2.865

Overall length [mm]:

595

Overall width [mm]:

595

Overall height [mm]:

Mechanical features

Shape:

Square ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

750 °C

Electrical features

Voltage type:

Input voltage [V AC]:

198/264

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Indoor

Mounting type:

Ceiling recessed

Min. ambient temperature [°C]:

-30

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@108000h

Distribution of light emission:

Direct

UGR max.:

19.0

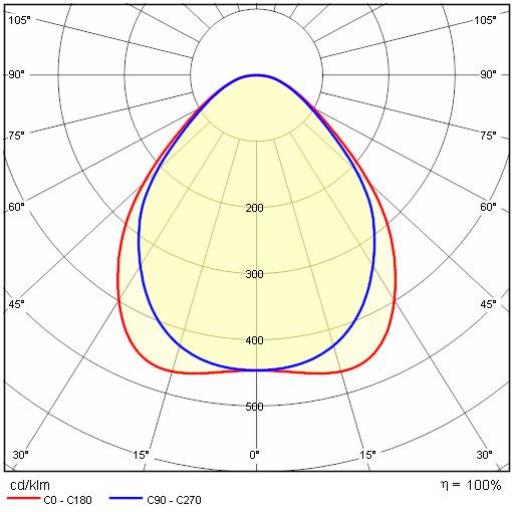

Photometric data

Technical drawings

Optional accessories

PLATO 600

	Part number	Colour / Finishing	Description	Downloads
	3121971		Suspension kit	Add to technical datasheetRemove from technical datasheet
	3116983		Ceiling kit	Add to technical datasheetRemove from technical datasheet
