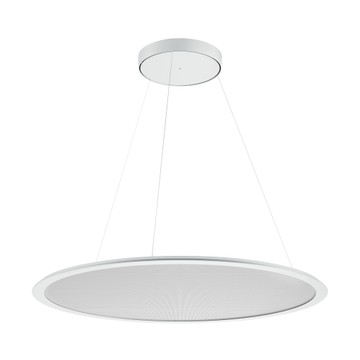

SL713PL ROUND LED MICROPRISMATIC L

Part number 8713461766310

Suspended, round LED luminaire for indoor, comprising:
- Aluminium profile lightframe, steel sheet canopy, painted
- Micro-prismatic diffuser for efficient light distribution, glare reduction and high uniformity (MP)
- Direct / indirect light distribution
- LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Complete with steel suspension cable (1.5 m), transparent power cord and canopy
- Built-in driver
- VDU application suitable acc. to EN 12464-1
- Special colour versions available. Consult factory

Product data

ETIM Group:

EG000027

ETIM Class:

EC001743

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

10670

Luminaire lumen output
[lm]:

8930

Luminaire
wattage [W]:

70 W

Luminous efficacy [lm/W]:

128

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

WH-RAL9016 / White RAL9016 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK05 0.7J xx3

Protection class:

Optic:

S/C - Symmetric direct-indirect

Beam
angle:

2 x 52°

Net weight [kg]:

Overall diameter [mm]:

749

Overall height [mm]:

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 0/50/60Hz

Power factor / COS Φ:

0.9

EEI:

Installation

Application area:

Indoor

Mounting type:

Suspended

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

UGR max.:

13.0

Photometric data

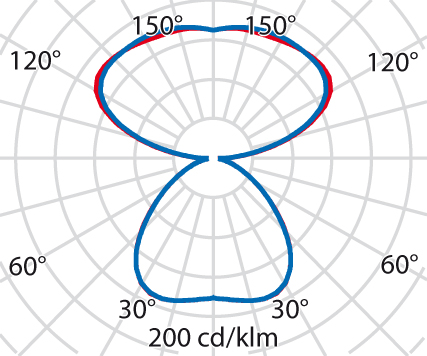

Photometric Lvk SL713PL ROUND LED MICROPRISMATIC L 1

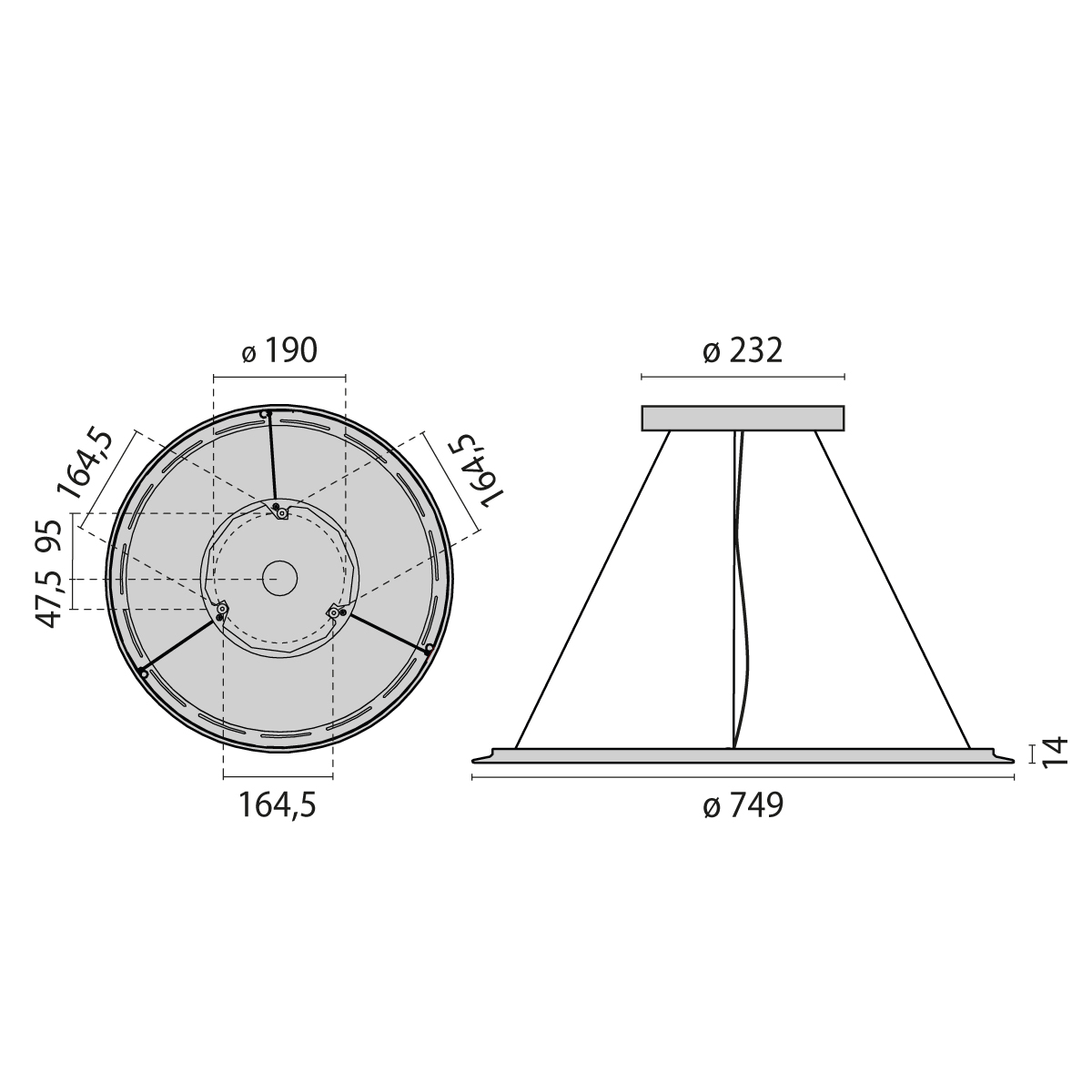

Technical drawings

Optional accessories

SL713PL ROUND LED

Part number	Description	Downloads
3122584	Casambi module for installation	Add to technical datasheetRemove from technical datasheet
3122586	Single wireless wall switch	Add to technical datasheetRemove from technical datasheet
3122587	Double wireless wall switch	Add to technical datasheetRemove from technical datasheet
