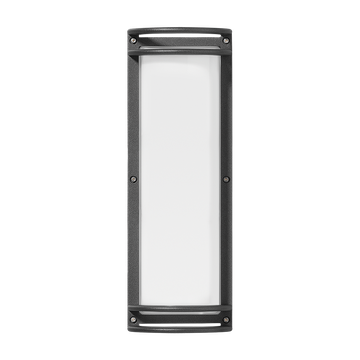

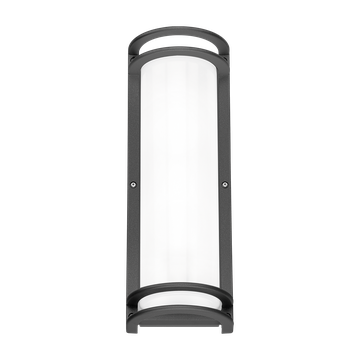

NIKKO+45 LED DA

Part number 303104

Wall, ceiling, bracket and post mounted luminaire for indoor and outdoor, comprising:
- Die-cast aluminium housing and trim, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Pressed glass diffuser, internally coated, secured with the ring
- Technopolymer silicone sealing gasket
- Stainless steel locking hardware
- DA versions are dual power switch versions, designed with two drivers in parallel. Requires two separate lines
- Design by ROBERTO FIORATO

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED+LED

Light source:

LED LED

Lightsource lumen output
[lm]:

1086

Luminaire lumen output
[lm]:

843

Luminaire
wattage [W]:

7.5 W + 7.5 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

3.233

Overall length [mm]:

148

Overall width [mm]:

130

Overall height [mm]:

423

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

4 / 50

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Bulkheads

Min. ambient temperature [°C]:

-10

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

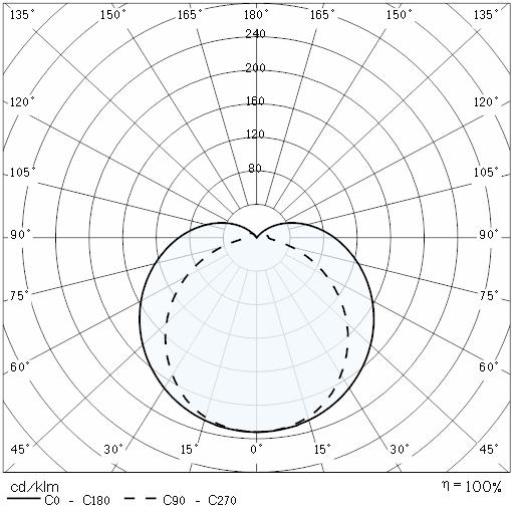

Photometric data

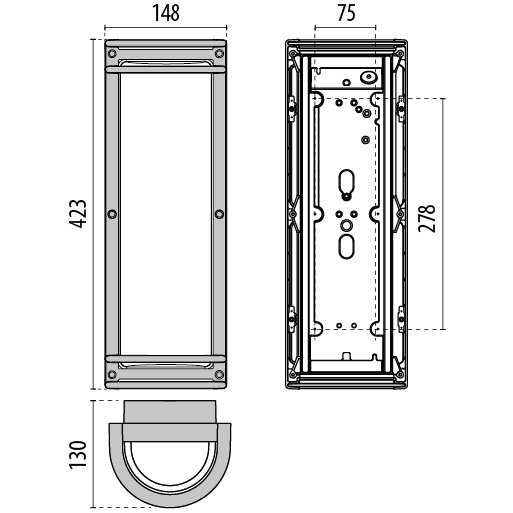

Technical drawings

Optional accessories

NIKKO+45

Part number	Description	Downloads

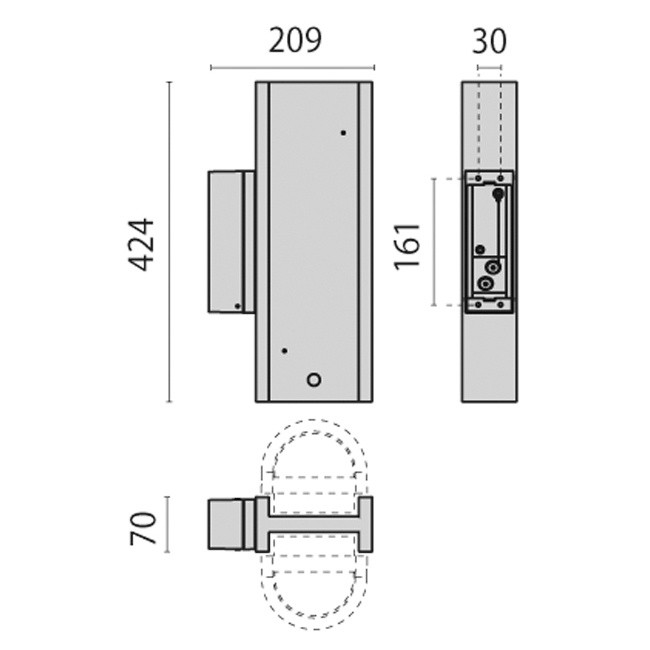

000442	Wall bracket 45	Add to technical datasheetRemove from technical datasheet Downloads Documentation: NIKKO+45 - 000442

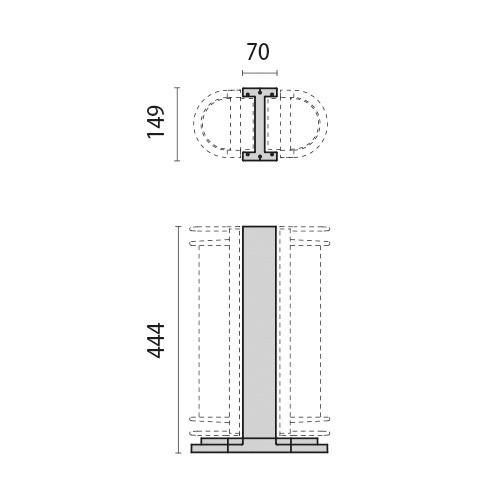

000446	Post 45 444 mm	Add to technical datasheetRemove from technical datasheet Downloads Documentation: NIKKO+45 - 000446

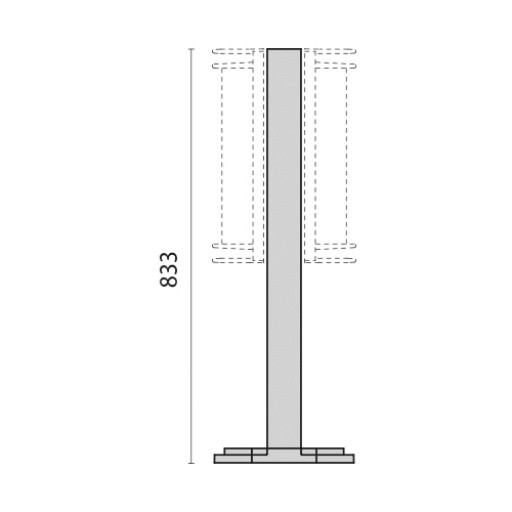

000450	Post 45 833 mm	Add to technical datasheetRemove from technical datasheet Downloads Documentation: NIKKO+45 - 000450

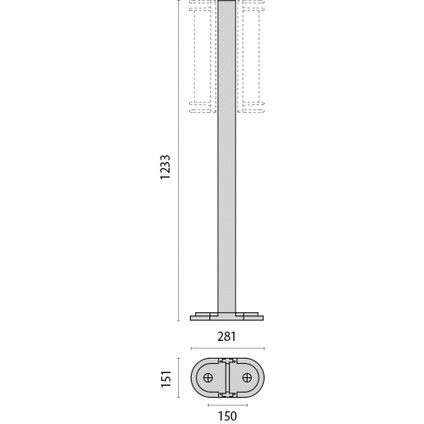

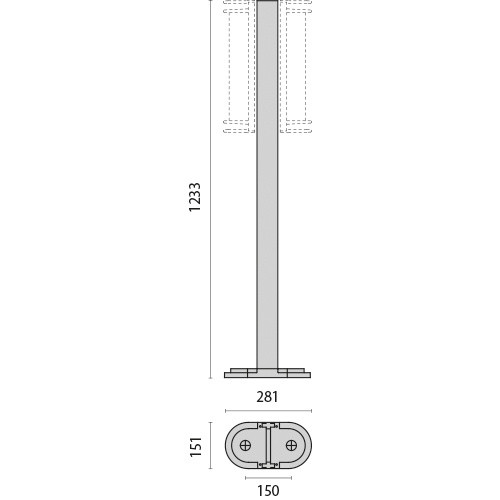

000454	Post 45 1233 mm	Add to technical datasheetRemove from technical datasheet Downloads Documentation: NIKKO+45 - 000454
