FL ROUND+ 333 PL OP CORONA

Part number 3123827

Suspended, round LED luminaire for indoor, comprising:
- Housing made from sheet steel and die-cast aluminium, powder-coated
- Future-proof thanks to simple revisions (replaceable light engine and converter)
- Opal white diffuser for optimum light distribution and excellent uniformity (OP)
- LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
- Predominantly direct light distribution
- 2 power levels adjustable
- In the tunable white version, the illuminance level and light colour can be manually adjusted from 2700K to 6500K (DALI DT8)
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Built-in driver
- Complete with steel suspension cable (1.5 m), transparent power cable and canopy

Product data

ETIM Group:

EG000027

ETIM Class:

EC001743

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1260/3880

Luminaire lumen output
[lm]:

1030/3110

Luminous efficacy [lm/W]:

129

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

WH-RAL9016 / White RAL9016 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

S/B - Symmetric mainly direct

Beam
angle:

2 x 56°/56°

Net weight [kg]:

2.712

Overall diameter [mm]:

329

Overall height [mm]:

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Opal plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 0/50/60Hz

Power factor / COS Φ:

>0.9

Installation

Application area:

Indoor

Mounting type:

Suspended

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct/Indirect

DFF - Downward Flux Fraction [%]:

UFF - Upward Flux Fraction [%]:

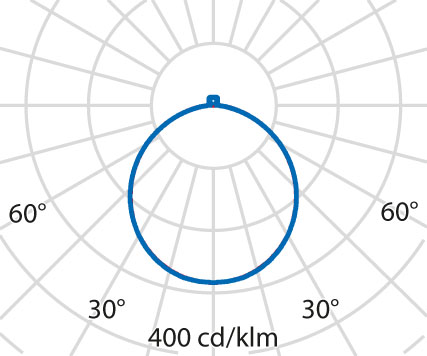

Photometric data

Photometric Lvk FL ROUND+ 333 PL OP CORONA 1

Photometric Lvk FL ROUND+ 333 PL OP CORONA 2

Technical drawings

Optional accessories

FL ROUND+ 333 PL

Part number	Description	Downloads
3122584	Casambi module for installation	Add to technical datasheetRemove from technical datasheet
3122586	Single wireless wall switch	Add to technical datasheetRemove from technical datasheet
3122587	Double wireless wall switch	Add to technical datasheetRemove from technical datasheet
