FL ROUND+ 777 SM OP CORONA

Part number 3124192

Wall and ceiling mounted LED luminaire for indoor, comprising:
- Housing made from sheet steel and die-cast aluminium, powder-coated
- Future-proof thanks to simple revisions (replaceable light engine and converter)
- Opal white diffuser for optimum light distribution and excellent uniformity (OP)
- LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
- Predominantly direct light distribution
- In the tunable white version, the illuminance level and light colour can be manually adjusted from 2700K to 6500K (DALI DT8)
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Built-in driver

Documentation

Documentation
Technical Datasheets
Instruction sheets

2D / 3D
3D .3ds

Photometric data
Polar Diagram .jpg
Photometric file .ies
Photometric file .ldt
Select items to download
Send by email
Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

11500

Luminaire lumen output
[lm]:

9080

Luminaire
wattage [W]:

67 W

Luminous efficacy [lm/W]:

136

CRI:

Colour
temperature [K]:

tw 2700-6500

Colour /
Finishing:

BK-RAL9005 / Black RAL9005 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

S/B - Symmetric mainly direct

Beam
angle:

2 x 56/57

Net weight [kg]:

8.087

Overall diameter [mm]:

725

Overall height [mm]:

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Opal plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 0/50/60Hz

Power factor / COS Φ:

>0.9

Installation

Application area:

Indoor

Mounting type:

Wall and ceiling surface

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct/Indirect

DFF - Downward Flux Fraction [%]:

UFF - Upward Flux Fraction [%]:

Photometric data

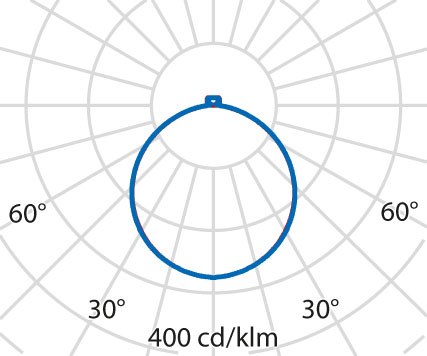

Photometric Lvk FL ROUND+ 777 SM OP CORONA 1

Technical drawings

Optional accessories

FL ROUND+ 777 SM

Part number	Description	Downloads
3122584	Casambi module for installation	Add to technical datasheetRemove from technical datasheet
3122586	Single wireless wall switch	Add to technical datasheetRemove from technical datasheet
3122587	Double wireless wall switch	Add to technical datasheetRemove from technical datasheet
