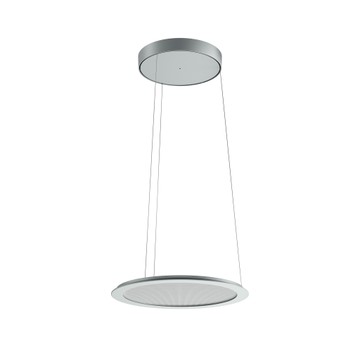

Name: SL713 RS PL 7/17 S/C 840 GR9006 MP
Brand: Performance in Lighting
SKU: 3122343

Product data

ETIM Group:

EG000027

ETIM Class:

EC001743

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1500/3200

Luminaire lumen output
[lm]:

1140/2430

Luminaire
wattage [W]:

8/18.5 W

Luminous efficacy [lm/W]:

143

CRI:

80

Colour
temperature [K]:

4000

Colour /
Finishing:

GR-RAL9006 / Grey RAL9006 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK05 0.7J xx3

Protection class:

I

Optic:

S/C - Symmetric direct-indirect

Beam
angle:

2 x 52Â°/53Â°

Net weight [kg]:

4.086

Overall diameter [mm]:

350

Overall height [mm]:

13

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 Â°C

Electrical features

Voltage type:

AC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 50/60Hz

Power factor / COS Φ:

0.9

Installation

Application area:

Indoor

Mounting type:

Suspended

Min. ambient temperature [°C]:

10

Max. ambient temperature [°C]:

40

Light features

MacAdam:

3

Lumen maintenance:

L80B10@50000h

DFF - Downward Flux Fraction [%]:

38

UFF - Upward Flux Fraction [%]:

62

UGR max.:

15.0

SL713PL ROUND LED MICROPRISMATIC S

Product data

General information

Mechanical features

Electrical features

Installation

Light features

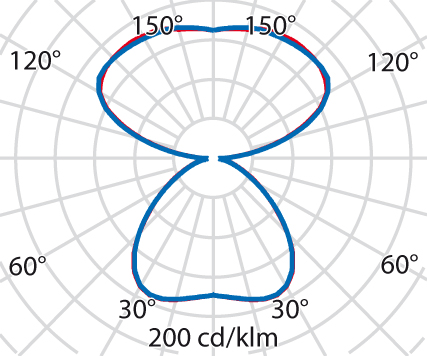

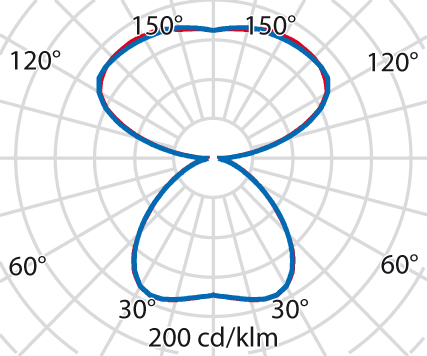

Photometric data

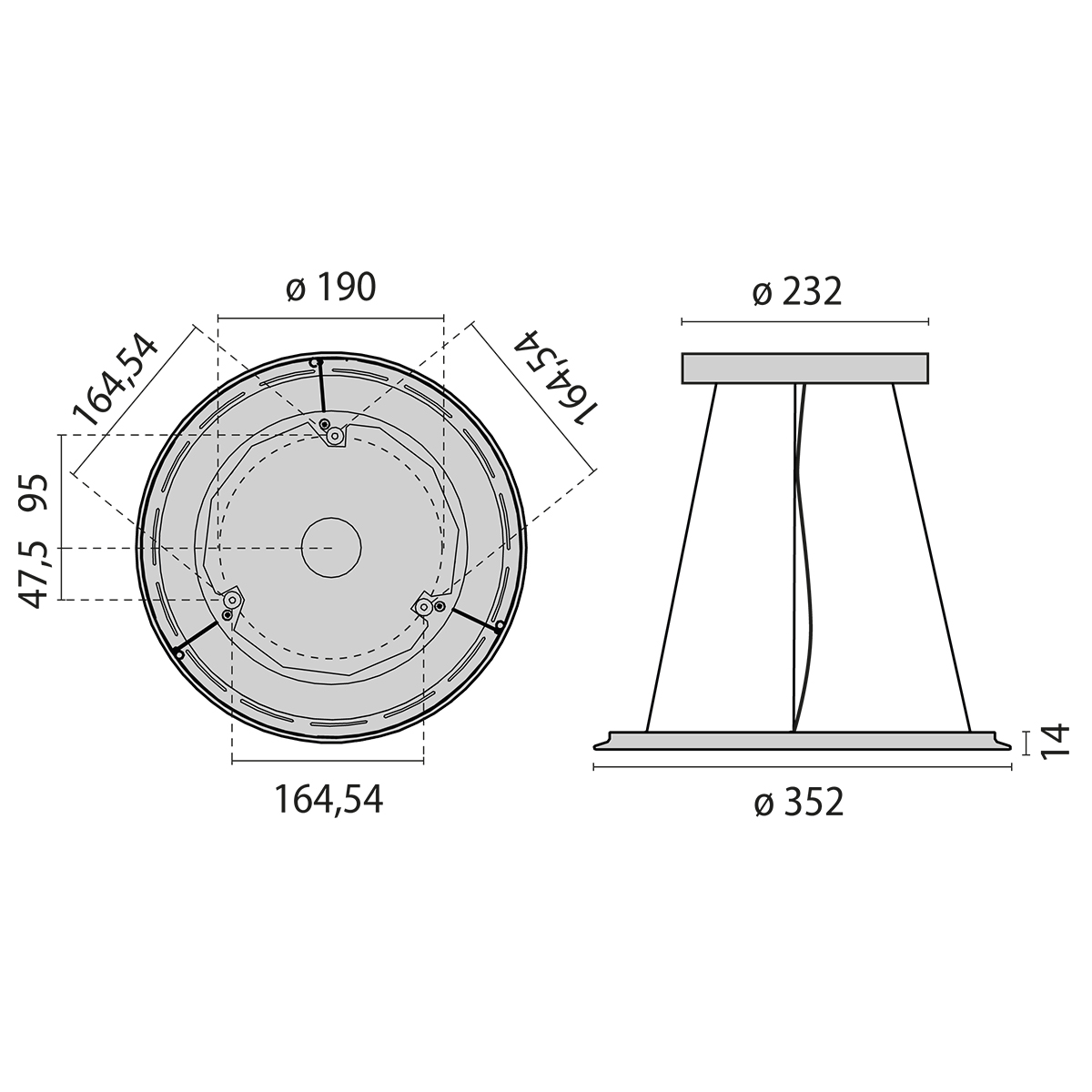

Technical drawings
