GROOVE 21 1000
GROOVE 21 1000
GROOVE 21 1000 - 1
GROOVE 21 1000 - 2

GROOVE 21 1000

Part number 3106622
  • Series of class III reduced depth in-ground luminaires, comprising:
  • - Extruded anodised aluminium housing
  • - IP-67-rated double resin coating - transparent in the lower part to protect the LED from mechanical stresses and to guarantee maximum luminous efficiency - satin finish in the visible part, even in joints proximity, to ensure a homogeneous light distribution over the entire emitting area
  • - Technopolymer external box for electrical connection suitable for Ø 6 - 9 mm rubber cables. This is connected to the appliance with a 25 cm cable. It allows the appliance to be installed and connected without having to open it
  • - External power supply 48V has to be ordered separately
  • - Through-wiring designed
  • - Two-part fitting, consisting of LED luminaire and stainless steel recess box with anti-deformation cover (included). Tool-free installation of the luminaire in the recess box
  • - Recessed box to be ordered separately
  • - RGBW and Tunable White versions to be powered with SELV drivers 48V DC, available as accessories to be ordered separately. Colour management through DMX interface
  • - DMX signal generator for RGBW and Tunable White versions to be ordered separately
  • - Continuous mounted options and many other configurations are available at www.light-performer.com
  • - Design by Artec Studio

Product data

ETIM Group:
EG000027
ETIM Class:
EC000758

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
1040
Luminaire lumen output
[lm]:
330
Luminaire
wattage [W]:
10 W
Luminous efficacy [lm/W]:
33
CRI:
90
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-11 / Anodised grey / Matt
IP degree
of protection:
IP67
Impact resistance / impact energy:
IK10 20J xx9
Protection class:
III
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
1.097
Overall length [mm]:
994
Overall width [mm]:
30
Overall height [mm]:
39

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
650 °C
Static load [kg]:
3000
Shear load [kN]:
5
Resistance to torque [Nm]:
50

Electrical features

Voltage type:
DC
Power factor / COS Φ:
>0.95

Installation

Application area:
Outdoor
Mounting type:
Inground
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
40
Glass temperature [°C]:
35
Ingrounds classification:

Light features

MacAdam:
3
Lumen maintenance:
L80B10@40000h

Photometric data

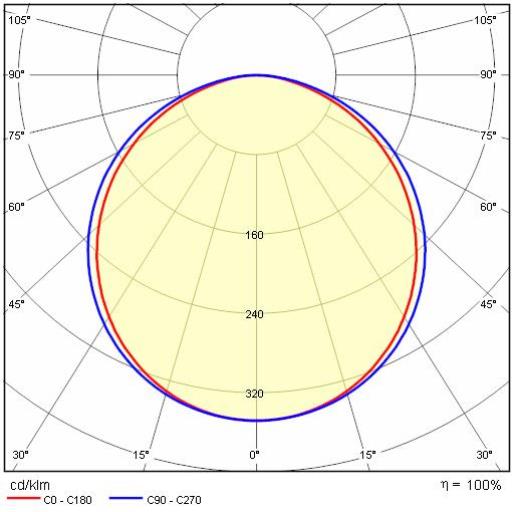

Photometric Lvk GROOVE 21 1000 1

Technical drawings

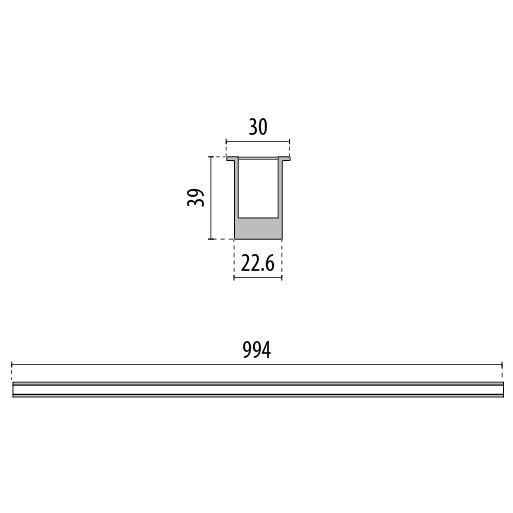

Tech Design GROOVE 21 1000 1++

Control gear

GROOVE 21

Part number Colour /
Finishing		 Description Downloads

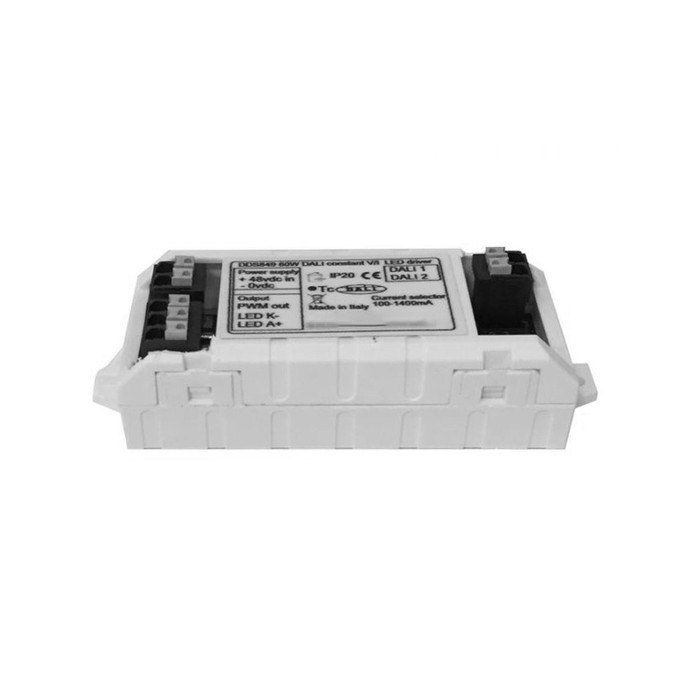

KIT CONTROLLER 48 V - DALI
3106660
KIT CONTROLLER 48 V - DALI
Driver - CV 100 W - 48 V kit
310950
Driver - CV 100 W - 48 V kit
Driver - CV 500 W - 48 V kit
310951
Driver - CV 500 W - 48 V kit

Mandatory accessories

GROOVE 21

Part number Colour /
Finishing		 Description Downloads
Shaped joint (n. 2)
3111705
Shaped joint (n. 2)
Kit closing cap (n. 2)
3111707
Kit closing cap (n. 2)
Kit closing cap (n. 2)
3106662
Kit closing cap (n. 2)

GROOVE 21 1000

Part number Colour /
Finishing		 Description Downloads
Recessed fixing kit GROOVE 21 1000
3106653
Recessed fixing kit GROOVE 21 1000
Downloads

Optional accessories

GROOVE 21

Part number Colour /
Finishing		 Description Downloads
Two-component epoxy resin - 50 ml
3116962
Two-component epoxy resin - 50 ml
Injector gun - aspect ratios 1:1/2:1
3116961
Injector gun - aspect ratios 1:1/2:1
