CHIP OVALE 25
CHIP OVALE 25 - 1

CHIP OVALE 25

Part number 005702
  • Series of ceiling, wall, bracket and post mounted luminaires for indoor and outdoor, comprising::
  • - Technopolymer housing, trim or screen
  • - Pressed glass diffuser, internally coated
  • - Aluminium reflector for E27 versions
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Stainless steel locking hardware
  • - Built-in driver
  • - Side entry for 20 mm conduits (drill out holes in housing arrangement)
  • - Anti-tampering screws available upon request
  • - Design by ROBERTO FIORATO

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
E27
Light source:
Fluorescent lamps
Luminaire
wattage [W]:
1x21 W
Colour /
Finishing:
BK-81 / Black / Textured
IP degree
of protection:
IP55
Impact resistance / impact energy:
IK06 1J xx3
Protection class:
II
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
0.936
Overall length [mm]:
260
Overall width [mm]:
121
Overall height [mm]:
157

Mechanical features

Shape:
Rectangular
Housing material:
Plastic
Diffuser material:
Glass
Glow wire test [°C]:
750 °C

Installation

Application area:
Outdoor
Mounting type:
Wall / Ceiling surface
Min. ambient temperature [°C]:
-30
Max. ambient temperature [°C]:
45

Light features

Photometric data

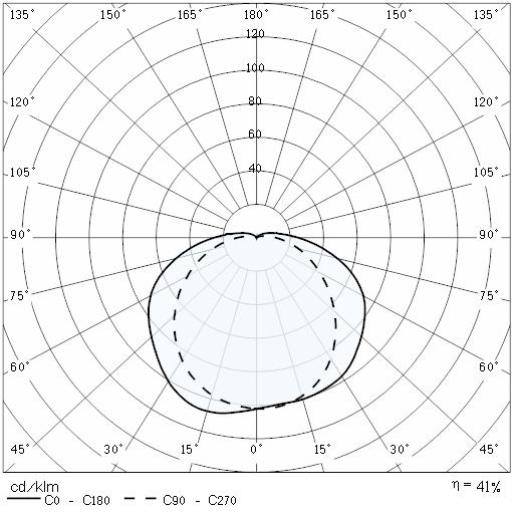

Photometric Lvk CHIP OVALE 25 1

Technical drawings

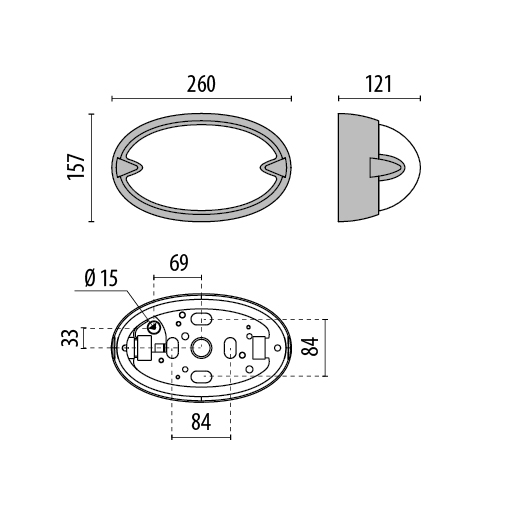

Tech Design CHIP OVALE 25 1++

Optional accessories

CHIP OVALE 25

Part number Colour /
Finishing		 Description Downloads
Corner bracket (vertical mount)
000790
Corner bracket (vertical mount)
Downloads
Corner bracket(angled mount)
000792
Corner bracket(angled mount)
Downloads
Angled bracket 40°
000502
Angled bracket 40°
Downloads
Angled bracket for 42 mm post
000800
Angled bracket for 42 mm post
Downloads
Angled bracket for Ø 60 mm post
000802
Angled bracket for Ø 60 mm post
Downloads
Twin angled bracket for 60 mm post
000810
Twin angled bracket for 60 mm post
Downloads
