SHIELD+ 1 EXTREME-40°
SHIELD+ 1 EXTREME-40°
SHIELD+ 1 EXTREME-40°
SHIELD+ 1 EXTREME-40° - 1
SHIELD+ 1 EXTREME-40° - 2
SHIELD+ 1 EXTREME-40° - 3

SHIELD+ 1 EXTREME-40°

Part number 3106360
  • Wall-mounted LED luminaire, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra clear, toughened, flat glass diffuser
  • - High-efficiency metallized technopolymer reflector with protective surface treatment
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - EXTREME options are suitable for extreme operating temp. conditions , -40°C
  • - Through-wiring designed
  • - Twilight models (C versions) complete with dusk sensor available. Consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
3514
Luminaire lumen output
[lm]:
2808
Luminaire
wattage [W]:
27 W
Luminous efficacy [lm/W]:
104
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
AN-96 / Anthracite gray / Textured
IP degree
of protection:
IP66
Impact resistance / impact energy:
IK07 2J xx5
Protection class:
I
Optic:
A/EW - Asymmetric Extra-Wide
Net weight [kg]:
2.398
Overall length [mm]:
220
Overall width [mm]:
114
Overall height [mm]:
230

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
82 / 1
C10 1.5 mm²:
16
C16 2.5 mm²:
25
B10 1.5 mm²:
16
B16 2.5 mm²:
25

Installation

Application area:
Outdoor
Mounting type:
Exterior wall
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@220000h
Distribution of light emission:
Direct
Zero light pollution (ULR = 0%):

Photometric data

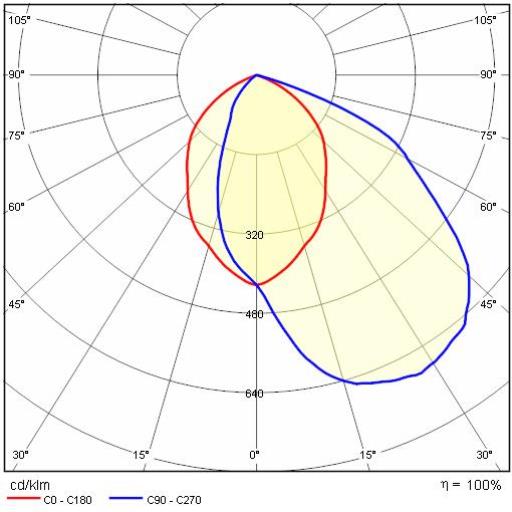

Photometric Lvk SHIELD+ 1 EXTREME-40° 1

Technical drawings

Tech Design SHIELD+ 1 EXTREME-40° 1++
