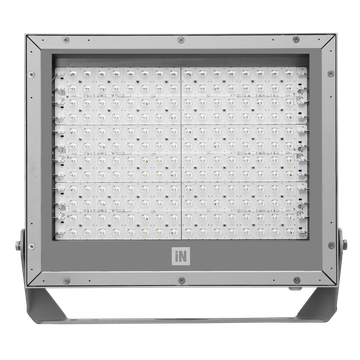

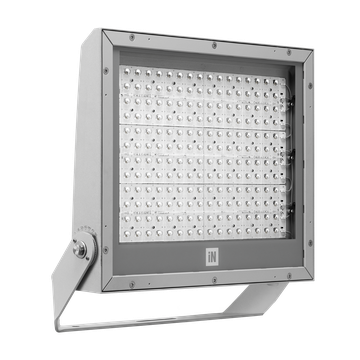

WIN PRO 40 A/M
WIN PRO 40 A/M
WIN PRO 40 A/M
WIN PRO 40 A/M
WIN PRO 40 A/M - 1
WIN PRO 40 A/M - 2
WIN PRO 40 A/M - 3
WIN PRO 40 A/M - 4

WIN PRO 40 A/M

Part number 3118167
  • High-powered LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra clear, toughened, flat glass diffuser
  • - High-transparency polycarbonate optics
  • - Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
  • - Tempered glass hinged to the housing by polyester powder coat finish die-cast aluminium brackets ISO 9227/12944 - ISO 9223 (C5)
  • - M20x1.5 cable gland for cables Ø10–Ø14 mm
  • - Supplied with 0,5 m pre-wired H07RN-F 3G2,5 mm² cable
  • - Stainless steel locking hardware
  • - Powder-coated steel tiltable bracket
  • - All WIN PRO 40 power consumption includes power unit losses
  • - Integral graduated goniometer for aiming purposes
  • - Openable and maintainable luminaire (future-proof)
  • - For WIN PRO 40, use only the power supply units available as accessories (ordered separately)
  • - IP66-rated power control gears are available in RPA, DALI and DMX-RDM. Maximum distance of 100 m cable length between control gear and luminaire (1CH)
  • - Standard supplied with two stainless steel brackets allowing the control gear to be fixed directly to the back of the luminaire
  • - The power supply groups are made up of drivers with protection against mains power surges of up to 10 kV (CM/DM)
  • - For up lighting installation, consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
97382
Luminaire lumen output
[lm]:
83322
Luminaire
wattage [W]:
575 W
Luminous efficacy [lm/W]:
145
CRI:
70
Colour
temperature [K]:
4000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP66
Impact resistance / impact energy:
IK08 5J xx5
Protection class:
I
Optic:
A55/M - Asymmetric Medium
Net weight [kg]:
11.339
Overall length [mm]:
585
Overall width [mm]:
520
Overall height [mm]:
180

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Frontal exposed area [m²]:
0.03
Lateral exposed area [m²]:
0.06
Top exposed area [m²]:
0.34

Electrical features

Voltage type:
DC
Power factor / COS Φ:
>0.95

Installation

Application area:
Outdoor
Mounting type:
Floodlighting
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
45
Min. distance from lighted object [m]:
1.00

Light features

MacAdam:
3
Lumen maintenance:
L80B10@170000h
Distribution of light emission:
Direct
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):
IPEA* (road lighting):
A3+
IPEA* (large areas, roundabouts):
A6+
IPEA* (cycle-pedestrian):
A4+
IPEA* (green areas):
A4+
IPEA* (historic city centers):
A8+

Photometric data

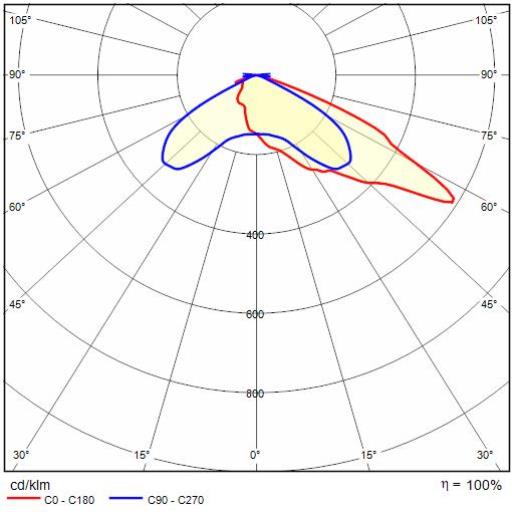

Photometric Lvk WIN PRO 40 A/M 1

Technical drawings

Tech Design WIN PRO 40 A/M 1++

Control gear

WIN PRO 40

Part number Colour /
Finishing		 Description Downloads
DRIVER BOX 600 W - 2 A - 1 CH - RPA
3118130
DRIVER BOX 600 W - 2 A - 1 CH - RPA
DRIVER BOX 600 W - 2 A - 1 CH - DALI
3118131
DRIVER BOX 600 W - 2 A - 1 CH - DALI
DRIVER BOX 600 W - 2 A - 1 CH - DMX
3118132
DRIVER BOX 600 W - 2 A - 1 CH - DMX

Optional accessories

WIN PRO 40

Part number Colour /
Finishing		 Description Downloads
Louvre WIN PRO 40 - 5°
3118121
Louvre WIN PRO 40 - 5°
Downloads
Louvre WIN PRO 40 - 10°
3118182
Louvre WIN PRO 40 - 10°
Downloads
Connection Kit 5P Ø 8÷17 mm - IP68
3115887
Connection Kit 5P Ø 8÷17 mm - IP68
Downloads
Strengthening bracket. Suitable for one floodlight single point fixing M20 screw in centre of the bracket
3118332
Strengthening bracket. Suitable for one floodlight single point fixing M20 screw in centre of the bracket
Downloads
