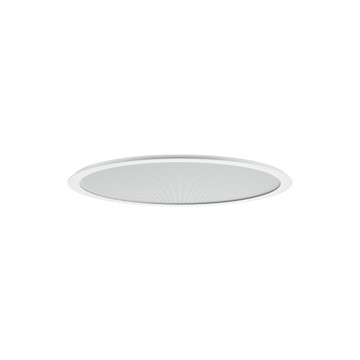

SL713AB ROUND LED MICROPRISMATIC M

Part number 8713661346314

Surface-mounted round LED luminaire for indoor, comprising:
- Aluminium profile lightframe, steel sheet canopy, painted
- Micro-prismatic diffuser for efficient light distribution, glare reduction and high uniformity (MP)
- Predominantly direct light distribution
- LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Built-in driver
- VDU application suitable acc. to EN 12464-1
- Special colour versions available. Consult factory

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

4370

Luminaire lumen output
[lm]:

3570

Luminaire
wattage [W]:

26 W

Luminous efficacy [lm/W]:

137

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

WH-RAL9016 / White RAL9016 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK05 0.7J xx3

Protection class:

Optic:

S/B - Symmetric mainly direct

Beam
angle:

2 x 47Â°

Net weight [kg]:

Overall diameter [mm]:

572

Overall height [mm]:

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 Â°C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 0/50/60Hz

Power factor / COS Φ:

0.9

EEI:

Installation

Application area:

Indoor

Mounting type:

Wall / Ceiling surface

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

DFF - Downward Flux Fraction [%]:

UFF - Upward Flux Fraction [%]:

UGR max.:

18.0

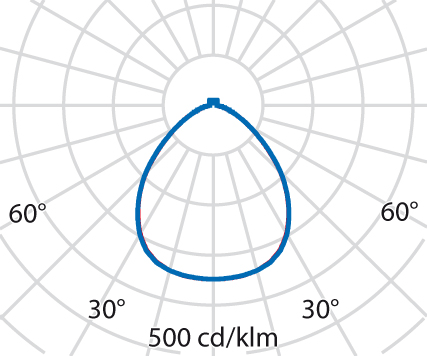

Photometric data

Photometric Lvk SL713AB ROUND LED MICROPRISMATIC M 1

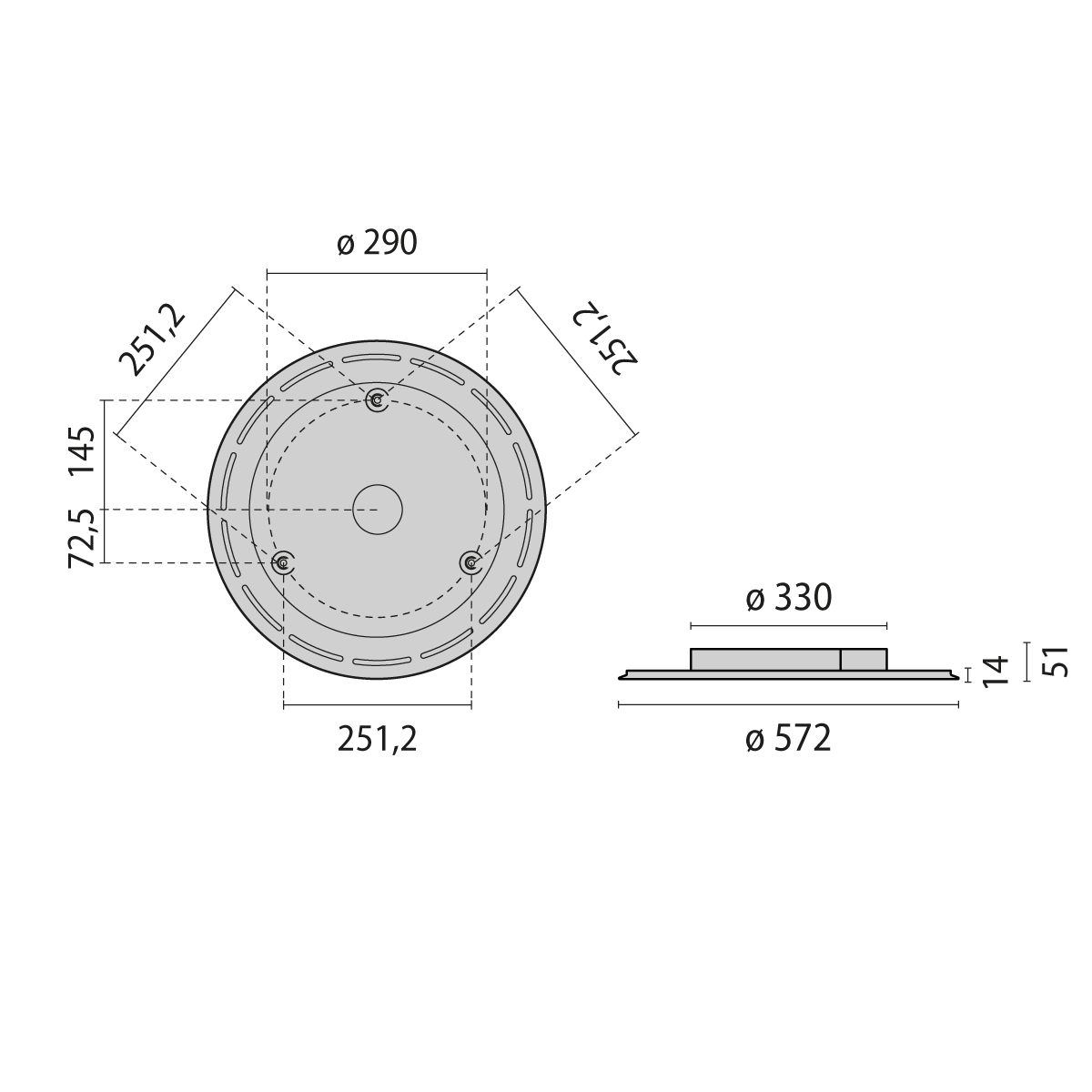

Technical drawings

Optional accessories

SL713AB ROUND LED

Part number	Description	Downloads
3122584	Casambi module for installation	Add to technical datasheetRemove from technical datasheet
3122586	Single wireless wall switch	Add to technical datasheetRemove from technical datasheet
3122587	Double wireless wall switch	Add to technical datasheetRemove from technical datasheet
