AMON WALL B A/M
AMON WALL B A/M
AMON WALL B A/M
AMON WALL B A/M
AMON WALL B A/M - 1
AMON WALL B A/M - 2
AMON WALL B A/M - 3
AMON WALL B A/M - 4

AMON WALL B A/M

Part number 306319
  • Wall-mounted LED luminaire, comprising:
  • - Extruded aluminium profile housing, powder-coated ISO 9227/12944 - ISO 9223 (C5)
  • - Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
  • - High-transparency polycarbonate optics
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Coated die-cast aluminium trims hinged to the housing
  • - Built-in driver
  • - Aluminium heat sink
  • - Stainless steel locking hardware
  • - Coated die-cast aluminium bracket features simplified installation system (WALL models)
  • - Dimmable DALI options available. Consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
5700
Luminaire lumen output
[lm]:
3334
Luminaire
wattage [W]:
54 W
Luminous efficacy [lm/W]:
62
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
AN-96 / Anthracite gray / Textured
IP degree
of protection:
IP65
Impact resistance / impact energy:
IK08 5J xx5
Protection class:
I
Optic:
A15/M - Asymmetric Medium
Net weight [kg]:
5.159
Overall length [mm]:
238
Overall width [mm]:
173
Overall height [mm]:
270

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Frontal exposed area [m²]:
0.07
Lateral exposed area [m²]:
0.05
Top exposed area [m²]:
0.04

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
0.9
Surge protection | Differential [kV]:
4.000000
Inrush current [A/μs]:
5 / 55
C10 1.5 mm²:
50
C16 2.5 mm²:
80
B10 1.5 mm²:
50
B16 2.5 mm²:
80

Installation

Application area:
Outdoor
Mounting type:
Exterior wall
Min. ambient temperature [°C]:
-25
Max. ambient temperature [°C]:
30

Light features

MacAdam:
3
Lumen maintenance:
L70B10@80000h
Distribution of light emission:
Direct/Indirect
Luminous Intensity Class:
G*3
Zero light pollution (ULR = 0%):

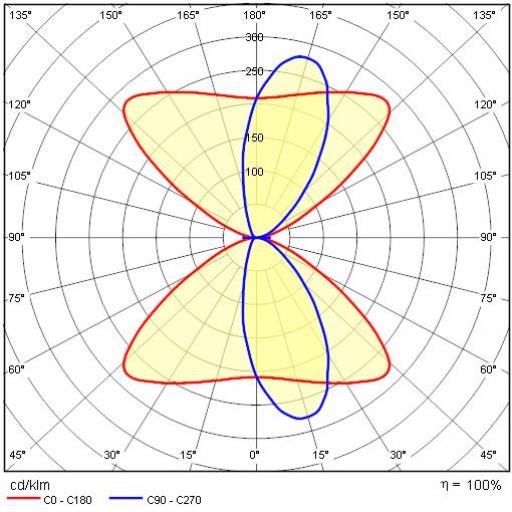

Photometric data

Photometric Lvk AMON WALL B A/M 1

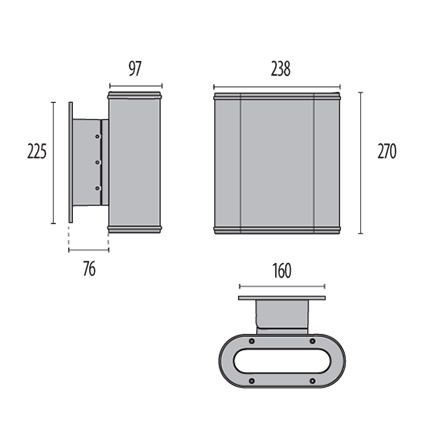

Technical drawings

Tech Design AMON WALL B A/M 1++
