Name: BLIZ MARINE 13.5 S/EW 830 BR-10
Brand: Performance in Lighting
SKU: 3100278

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1584

Luminaire lumen output
[lm]:

616

Luminaire
wattage [W]:

13.5 W

Luminous efficacy [lm/W]:

46

CRI:

80

Colour
temperature [K]:

3000

Colour /
Finishing:

BR-10 / Natural brass / Glossy

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK07 2J xx5

Protection class:

I

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

3.32

Overall length [mm]:

270

Overall width [mm]:

91

Overall height [mm]:

169

Mechanical features

Shape:

Rectangular

Housing material:

Brass

Diffuser material:

Glass

Electrical features

Voltage type:

AC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.95

Surge protection | Common [kV]:

4.000000

Inrush current [A/μs]:

45 / 20

C10 1.5 mm²:

50

C16 2.5 mm²:

80

B10 1.5 mm²:

30

B16 2.5 mm²:

48

Installation

Application area:

Outdoor

Mounting type:

Bulkhead

Min. ambient temperature [°C]:

-10

Max. ambient temperature [°C]:

35

Light features

MacAdam:

3

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

BLIZ MARINE

Product data

General information

Mechanical features

Electrical features

Installation

Light features

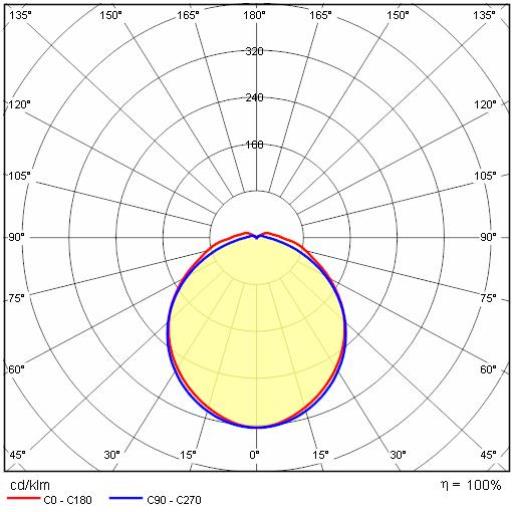

Photometric data

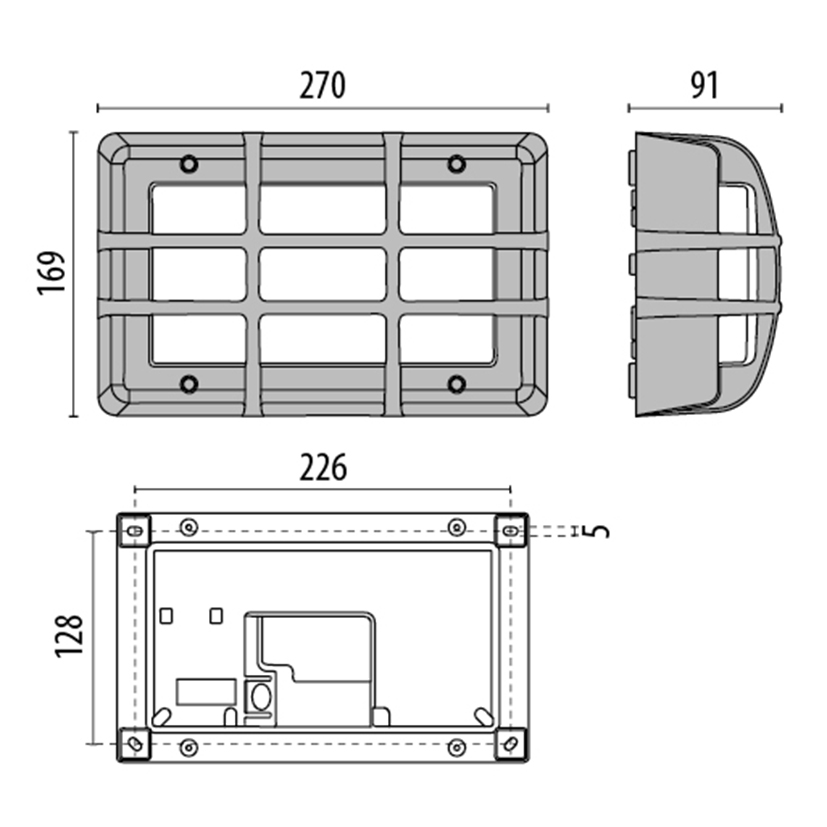

Technical drawings
