LANTERNA NK 27
LANTERNA NK 27

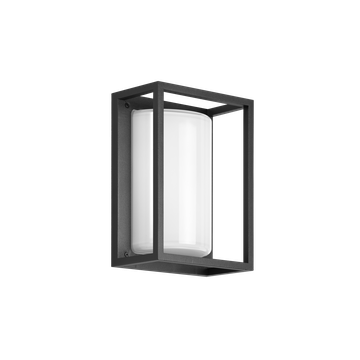

LANTERNA NK 27 - 1

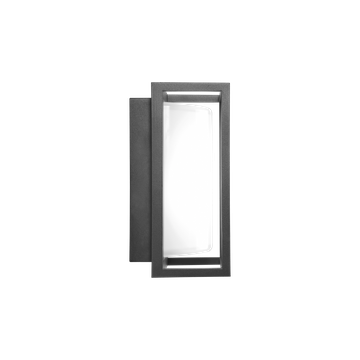

LANTERNA NK 27 - 2

LANTERNA NK 27

Part number 3102564
  • Indoor and outdoor wall-mount luminaire, comprising:
  • - Die-cast aluminium housing and trim, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Pressed glass diffuser, internally coated, secured with the ring
  • - Aluminium reflector and gear tray
  • - Technopolymer silicone sealing gasket
  • - Burnished stainless steel fixing screws
  • - Built-in driver
  • - Design by ROBERTO FIORATO

Product data

ETIM Group:
EG000027
ETIM Class:
EC001745

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
1644
Luminaire lumen output
[lm]:
990
Luminaire
wattage [W]:
15 W
Luminous efficacy [lm/W]:
66
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
AN-96 / Anthracite gray / Textured
IP degree
of protection:
IP65
Impact resistance / impact energy:
IK06 1J xx3
Protection class:
I
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
2.721
Overall length [mm]:
200
Overall width [mm]:
146
Overall height [mm]:
278

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
0.9
Inrush current [A/μs]:
10 / 40
C10 1.5 mm²:
72
C16 2.5 mm²:
116
B10 1.5 mm²:
43
B16 2.5 mm²:
68

Installation

Application area:
Outdoor
Mounting type:
Wall / Ceiling surface
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@100000h
Distribution of light emission:
Direct

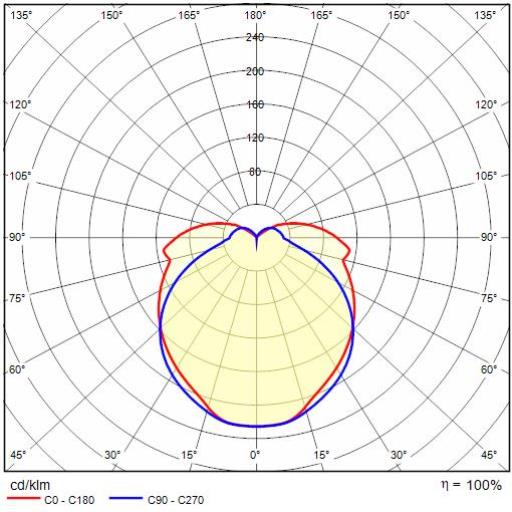

Photometric data

Photometric Lvk LANTERNA NK 27 1

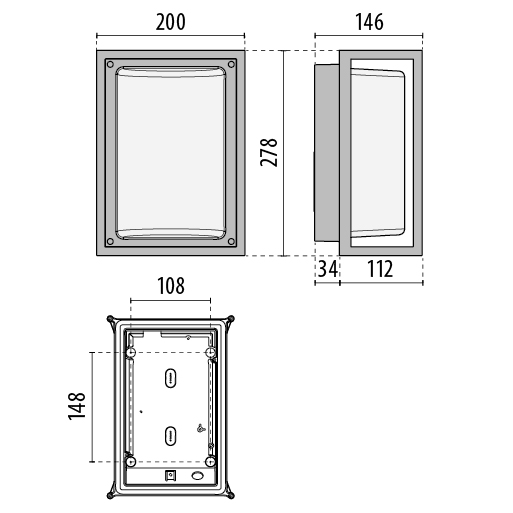

Technical drawings

Tech Design LANTERNA NK 27 1++
