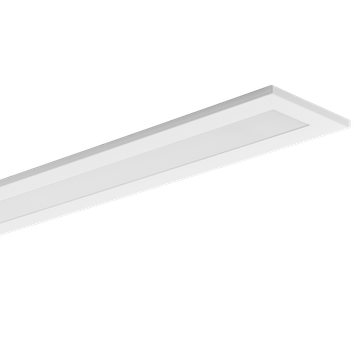

FLEXILED IL OPAL
FLEXILED IL OPAL - 1

FLEXILED IL OPAL

Part number 3123271
  • Inlayed for indoor use consisting of:
  • - Housing made of form-stable 1.0 mm sheet steel
  • - Impact-resistant, impression-resistant powder coating
  • - Opal PMMA diffuser for optimal light distribution and uniformity
  • - Maintenance and installation-friendly design (complies with the EU Eco-Design Directive 2019/2020)
  • - Maximum values for efficiency and service life for the allocation of subsidies and building certification (e.g. BEG subsidy, LEED, BREEAM)
  • - Reliable and low-maintenance 50,000h L80B10
  • - Colour tolerance according to MacAdam ≤ 3 SDCM
  • - 2 power levels adjustable
  • - Configurable via LIGHT-PERFORMER®
  • - Special colour versions available. Consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
2560/4200
Luminaire lumen output
[lm]:
2170/3560
Luminous efficacy [lm/W]:
155
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
WH-RAL9016 / White RAL9016 / Textured
IP degree
of protection:
IP20
Impact resistance / impact energy:
IK05 0.7J xx3
Protection class:
I
Optic:
S/A - Symmetric direct
Beam
angle:
2 x 55°
Net weight [kg]:
3.879
Overall length [mm]:
1500
Overall width [mm]:
150
Overall height [mm]:
12
Minimum installation depth [mm]:
80

Mechanical features

Shape:
Rectangular
Diffuser material:
Opal plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
>0.9

Installation

Application area:
Indoor
Mounting type:
Ceiling recessed
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct
DFF - Downward Flux Fraction [%]:
100
UFF - Upward Flux Fraction [%]:
0

Photometric data

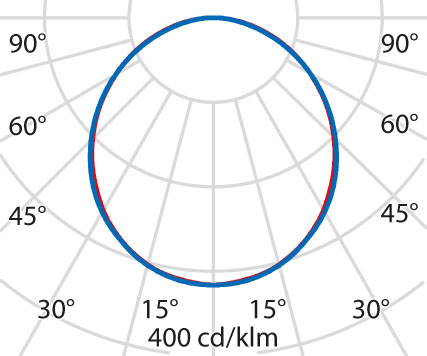

Photometric Lvk FLEXILED IL OPAL 1
Photometric Lvk FLEXILED IL OPAL 2

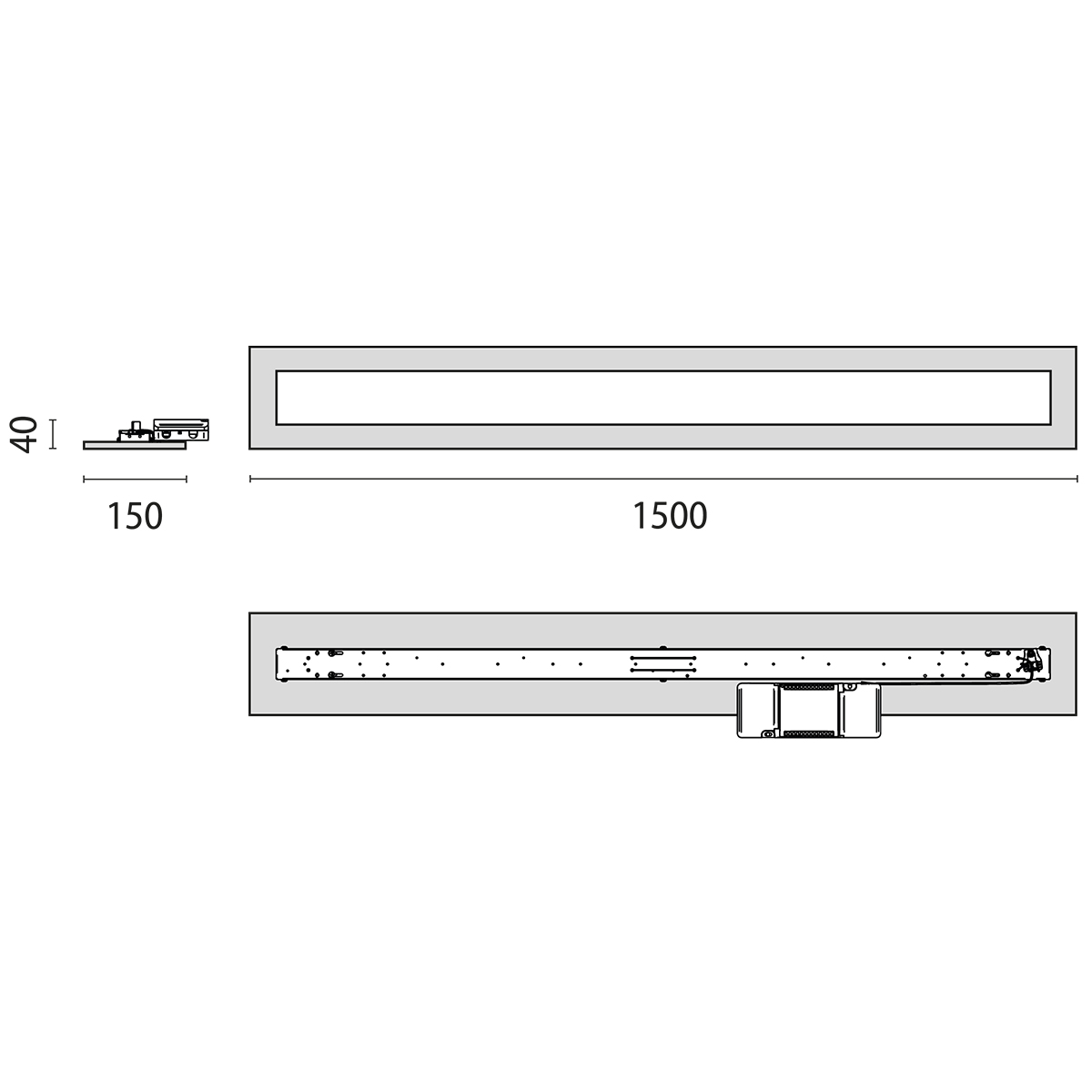

Technical drawings

Tech Design FLEXILED IL OPAL 1++
