SL713SL LED MICROPRISMATIC COVER

Part number 3122118

Free-standing (SL) LED luminaire for indoor, comprising:
- Luminaire head and tube made of aluminium profile, base made of sheet steel, powder-coated
- Angle of the lamp head adjustable using a set screw
- Micro-prismatic diffuser for efficient light distribution, glare reduction and high uniformity (MP)
- Direct / indirect light distribution
- LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
- Colour tolerance according to MacAdam ≤ 3 SDCM
- VDU application suitable acc. to EN 12464-1
- Complete with flexible power cord with plug
- Sensor device available with task oriented PIR detector and daylight control
- Special colour versions available. Consult factory

Product data

ETIM Group:

EG000027

ETIM Class:

EC000300

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

12320

Luminaire lumen output
[lm]:

8910

Luminaire
wattage [W]:

72 W

Luminous efficacy [lm/W]:

124

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

BK-RAL9005 / Black RAL9005 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK05 0.7J xx3

Protection class:

Optic:

S/D - Symmetric mainly indirect

Beam
angle:

2 x 50Â°/47Â°

Net weight [kg]:

16.144

Overall length [mm]:

726

Overall width [mm]:

449

Overall height [mm]:

2055

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 Â°C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 50/60Hz

Power factor / COS Φ:

0.9

Installation

Application area:

Indoor

Mounting type:

Free standing

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

DFF - Downward Flux Fraction [%]:

UFF - Upward Flux Fraction [%]:

UGR max.:

14.0

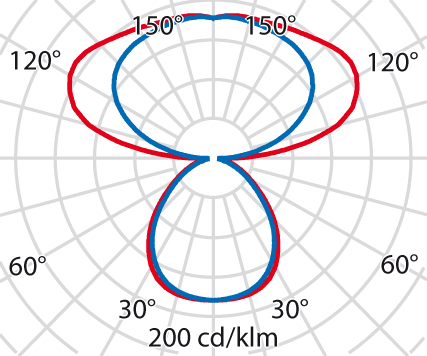

Photometric data

Photometric Lvk SL713SL LED MICROPRISMATIC COVER 1

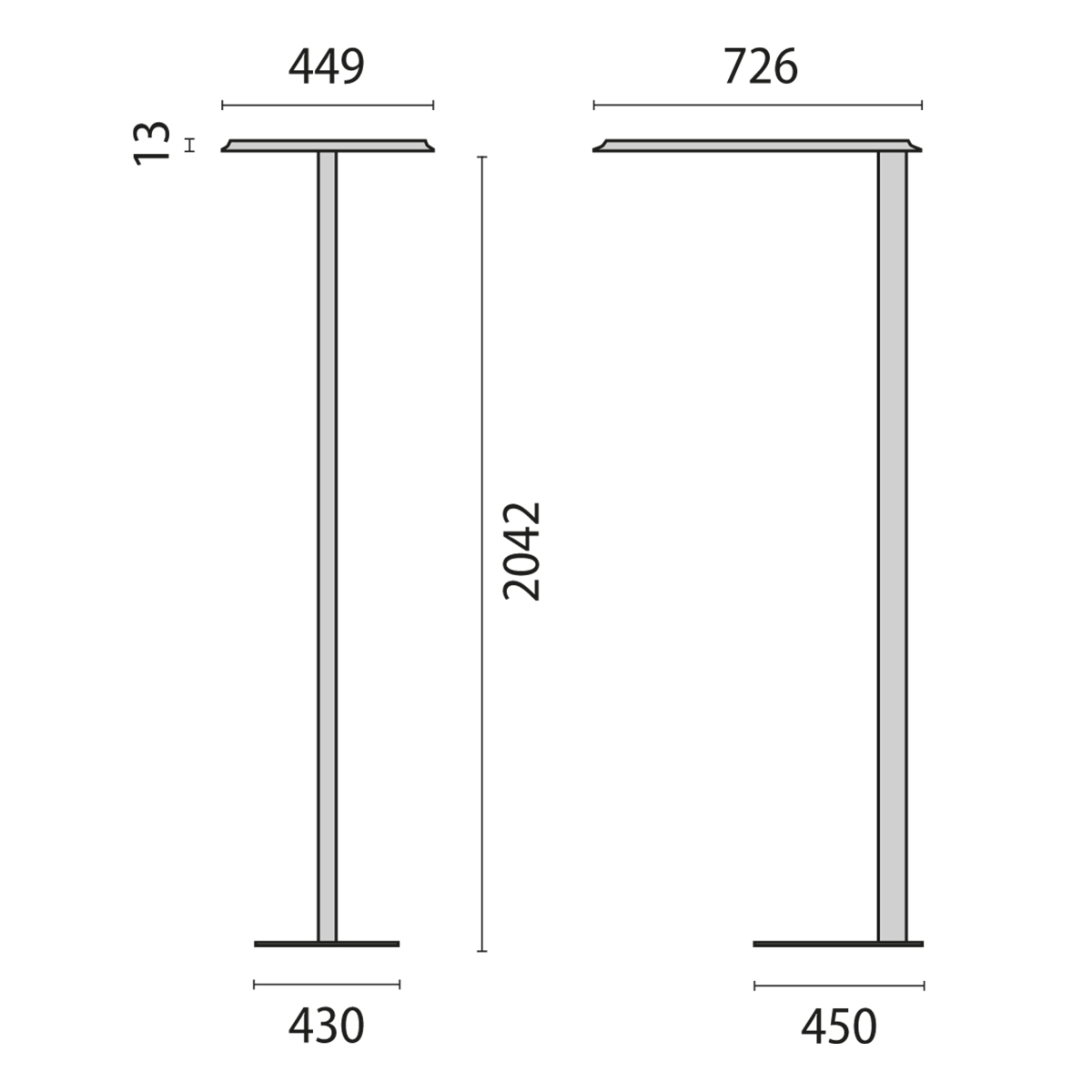

Technical drawings

Optional accessories

SL713SL LED

	Part number	Colour / Finishing	Description	Downloads
	8118000647		Remote control "User" for versions with a sensor function	Add to technical datasheetRemove from technical datasheet
	8118000257		Remote control "Master" for versions with a sensor function	Add to technical datasheetRemove from technical datasheet
