INSERT+ ZERO POST 300
INSERT+ ZERO POST 300
INSERT+ ZERO POST 300 - 1
INSERT+ ZERO POST 300 - 2

INSERT+ ZERO POST 300

Part number 3118127
  • Post mounted outdoor luminaire for general lighting, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Inner satin toughened flat glass diffuser
  • - Driver On Board 220-240V 50/60Hz LED module protected against surges up to 500 V
  • - Use of protection against voltage surges that may be on the electrical line is recommended in order to protect the appliances
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Extruded aluminium post with base plate, polyester powder coat finish
  • - Rapid spring-type installation
  • - No visible screws

Product data

ETIM Group:
EG000027
ETIM Class:
EC000301

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
377
Luminaire lumen output
[lm]:
151
Luminaire
wattage [W]:
4 W
Luminous efficacy [lm/W]:
38
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP65
Impact resistance / impact energy:
IK08 5J xx5
Protection class:
I
Optic:
A/W - Asymmetric Wide
Net weight [kg]:
1.801
Overall length [mm]:
130
Overall width [mm]:
53
Overall height [mm]:
305

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Opal glass

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
0.8
Inrush current [A/μs]:
4 / 414
C10 1.5 mm²:
160
C16 2.5 mm²:
256
B10 1.5 mm²:
100
B16 2.5 mm²:
160

Installation

Application area:
Outdoor
Mounting type:
Garden post
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@65000h
Distribution of light emission:
Direct
DFF - Downward Flux Fraction [%]:
97
UFF - Upward Flux Fraction [%]:
3
Luminous Intensity Class:
G*1

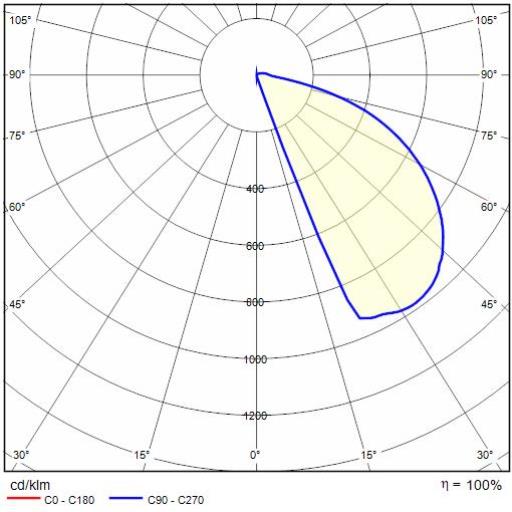

Photometric data

Photometric Lvk INSERT+ ZERO POST 300 1

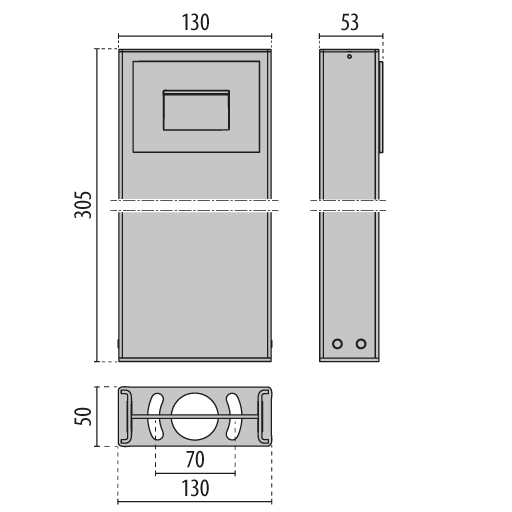

Technical drawings

Tech Design INSERT+ ZERO POST 300 1++
