SMART [3]E 800 OPAL
SMART [3]E 800 OPAL - 1

SMART [3]E 800 OPAL

Part number GWS3120EP857
  • Watertight fixture IP66/69 for industrial applications, ideal for production areas, warehouses, and logistics areas
  • - Designed to replace fluorescent devices and lowbays up to 6,500lm
  • - IK08 body in RAL7035 colored self-exhausting polycarbonate
  • - Available in 2 sizes: 800 mm and 1200 mm
  • - Available in 4000K and 5700K with CRI ≥80
  • - Available with powers ranging from 34 W to 52 W and flux ranging from 3,700 lm to 6,300 lm
  • - Mid-power LED with wire bonding
  • - Equipped with integrated On/Off driver
  • - The through wiring version has pre-wired mechanical and electrical connections as accessories (to be ordered separately), allowing up to 25 fixtures installed in a continuous row
  • - Available in 2 different optical solutions: trasparent or opal diffuser in UV-stabilized, self-extinguishing polycarbonate
  • - The device can be hung or wall-mounted through bracket accessory with a tilt of 30° or 45° on the vertical axis
  • - Available with external emergency kit with 3h autonomy compatible with through wiring versions (to be ordered separately)
  • - L80B20 (Tq 25°C) = 90.000 h; L80B20 (Tq 40°C) = 50.000 h

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Luminaire lumen output
[lm]:
3700
Luminaire
wattage [W]:
34 W
Luminous efficacy [lm/W]:
109
CRI:
80
Colour
temperature [K]:
5700
Colour /
Finishing:
Grey RAL 7035 / Grey RAL7035
IP degree
of protection:
IP66
IP above/below ceiling:
IP66/IP69
IK-J-xxIP:
IK08 5J xx5
Protection class:
II
Optic:
OPAL - Opal
Net weight [kg]:
1.723
Overall length [mm]:
800
Overall width [mm]:
110
Overall height [mm]:
90

Mechanical features

Housing material:
Plastic
Diffuser material:
Opal plastic
Glow wire test [°C]:
850 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60

Installation

Application area:
Indoor
Mounting type:
Weatherproofs
Min. ambient temperature [°C]:
-25
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B20@90000h
Distribution of light emission:
Direct

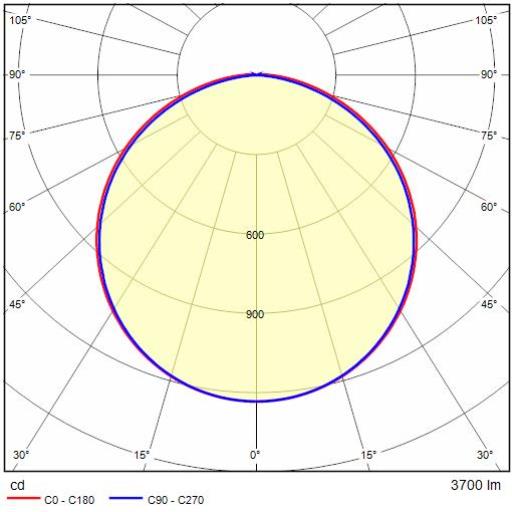

Photometric data

Technical drawings

Tech Design SMART [3]E 800 OPAL 1++

Optional accessories

SMART [3]E

Part number Colour /
Finishing
Description Downloads
Wall-mounting bracket 30°/45°
GWS3191
Wall-mounting bracket 30°/45°
Downloads
Rigid pipe adaptor
GWS3193
Rigid pipe adaptor
Downloads
RINA clamp kit
GWS3296
RINA clamp kit
Downloads
