TRY S/EW EM
TRY S/EW EM
TRY S/EW EM
TRY S/EW EM
TRY S/EW EM - 1
TRY S/EW EM - 2
TRY S/EW EM - 3
TRY S/EW EM - 4
TRY S/EW EM - 5

TRY S/EW EM

Part number 305931
  • LED system for indoor lighting consisting of luminaires and electrified RAIL, suitable for commercial and industrial applications, comprising:
  • - Extruded aluminium luminaire housing, polyester powder coat, white finish
  • - High-transparency polycarbonate optics
  • - Tool-free springs installation of the luminaire to the electric RAIL
  • - Integrated emergency unit
  • - 3 hours
  • - To be combined with the 7-pole EM RAIL
  • - RAILs feature internal 3 phases 2.5 mm² cables, fast connectors and circuit breakers for a quick installation of the luminaire

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
6292
Luminaire lumen output
[lm]:
5390
Luminaire
wattage [W]:
34 W
Luminous efficacy [lm/W]:
159
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
WH-RAL9003 / White RAL9003 / Glossy
IP degree
of protection:
IP40
Impact resistance / impact energy:
IK05 0.8J xx3
Protection class:
I
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
2.2
Overall length [mm]:
1434
Overall width [mm]:
66
Overall height [mm]:
66

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
0.9
Inrush current [A/μs]:
40 / 140
C10 1.5 mm²:
12
C16 2.5 mm²:
20
B10 1.5 mm²:
7
B16 2.5 mm²:
12

Installation

Application area:
Indoor
Mounting type:
Trunking system
Min. ambient temperature [°C]:
5
Max. ambient temperature [°C]:
35

Light features

MacAdam:
3
Lumen maintenance:
L80B10@60000h
Distribution of light emission:
Direct

Photometric data

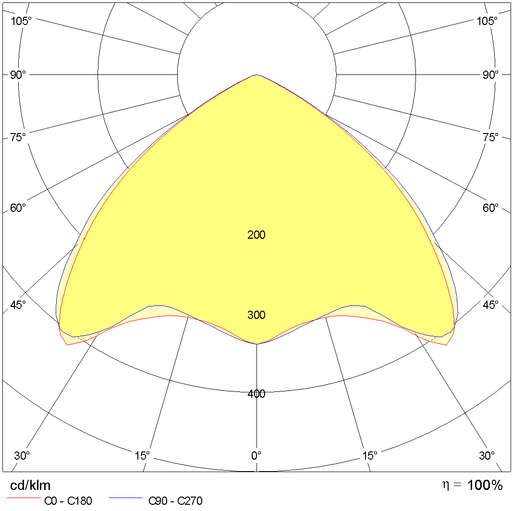

Photometric Lvk TRY S/EW EM 1

Technical drawings

Tech Design TRY S/EW EM 1++

Mandatory accessories

RAIL-A TRY 7P EM

Part number Colour /
Finishing		 Description Downloads
RAIL-A TRY 7P EM - L 1435 mm (2 stainless steel brackets included)
310562
RAIL-A TRY 7P EM - L 1435 mm (2 stainless steel brackets included)
Downloads

RAIL-M TRY 7P EM

Part number Colour /
Finishing		 Description Downloads
RAIL-M TRY 7P EM - L 1435 mm (2 stainless steel brackets included)
310563
RAIL-M TRY 7P EM - L 1435 mm (2 stainless steel brackets included)
Downloads
RAIL-M TRY 7P EM - L 2870 mm (4 stainless steel brackets included)
310564
RAIL-M TRY 7P EM - L 2870 mm (4 stainless steel brackets included)
Downloads
RAIL-M TRY 7P EM - L 4305 mm (6 stainless steel brackets included)
310565
RAIL-M TRY 7P EM - L 4305 mm (6 stainless steel brackets included)
Downloads

RAIL-A TRY 9P DALI/EM

Part number Colour /
Finishing		 Description Downloads
RAIL-A TRY 9P DALI/EM - L 1435 mm (2 stainless steel brackets included)
310934
RAIL-A TRY 9P DALI/EM - L 1435 mm (2 stainless steel brackets included)
Downloads

RAIL-M TRY 9P DALI/EM

Part number Colour /
Finishing		 Description Downloads
RAIL-M TRY 9P DALI/EM - L 1435 mm (2 stainless steel brackets included)
310935
RAIL-M TRY 9P DALI/EM - L 1435 mm (2 stainless steel brackets included)
Downloads
RAIL-M TRY 9P DALI/EM - L 2870 mm (4 stainless steel brackets included)
310936
RAIL-M TRY 9P DALI/EM - L 2870 mm (4 stainless steel brackets included)
Downloads
RAIL-M TRY 9P DALI/EM - L 4305 mm (6 stainless steel brackets included)
310937
RAIL-M TRY 9P DALI/EM - L 4305 mm (6 stainless steel brackets included)
Downloads

Optional accessories

TRY

Part number Colour /
Finishing		 Description Downloads
Suspension kit (2 m)
14-00354
Suspension kit (2 m)
Chain suspension
310550
Chain suspension
Closing plates for RAIL (nr. 2)
310551
Closing plates for RAIL (nr. 2)
Cover PC RAIL - L 1435 mm
310553
Cover PC RAIL - L 1435 mm
Stainless steel fast fit strong for quick ceiling mount (2 pieces)
3100243
Stainless steel fast fit strong for quick ceiling mount (2 pieces)
Stainless steel fast fit strong for quick ceiling mount (50 pieces)
3100244
Stainless steel fast fit strong for quick ceiling mount (50 pieces)
Stainless steel fast fit strong for quick ceiling mount+ hooks (2 pieces)
3100245
Stainless steel fast fit strong for quick ceiling mount+ hooks (2 pieces)
Stainless steel fast fit strong for quick ceiling mount + hooks (50 pieces)
3100246
Stainless steel fast fit strong for quick ceiling mount + hooks (50 pieces)
