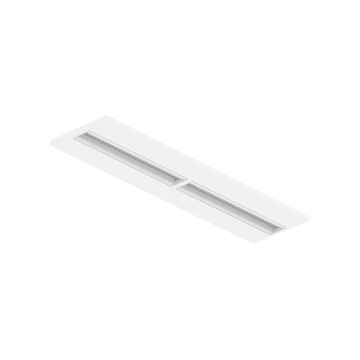

VISIO [16] M1 1200
VISIO [16] M1 1200 - 1

VISIO [16] M1 1200

Part number GWF1810LL930
  • Modular recessed LED luminaire ideal for work and study environments. It was designed to ensure maximum visual comfort, thanks to an advanced low-glare optical system (UGR <16) and a high colour rendering LED source
  • - Available in 3 different sizes (300 x 1200 mm, 600 x 600 mm and 620 x 620 mm), it is suitable for flush-mounting in modular ceilings and can alternatively be ceiling or suspension-mounted using dedicated accessories (to be ordered separately)
  • - The range allows for great flexibility with its multiple possible combinations of colour temperatures and control systems: it can be ordered in 3,000 K (warm white) or 4,000 K (neutral white), both with a colour rendering index (CRI) above 90 for a crisp light; and with an On/Off or DALI external power supply (included with the product)
  • - The luminaire is easy to install thanks to its quick coupling connector for fast electrical wiring
  • - External emergency kit with 3h autonomy available (to be ordered separately)

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Luminaire lumen output
[lm]:
3000
Luminaire
wattage [W]:
35 W
Luminous efficacy [lm/W]:
86
CRI:
90
Colour
temperature [K]:
3000
Colour /
Finishing:
WH-RAL9016 / White RAL9016
IP degree
of protection:
IP40
IK-J-xxIP:
IK06 1J xx3
Protection class:
II
Optic:
SYMM - Symmetric
Beam
angle:
80°
Net weight [kg]:
3.55
Overall length [mm]:
1195
Overall width [mm]:
295
Overall height [mm]:
24

Mechanical features

Housing material:
Painted steel
Diffuser material:
Plastic
Glow wire test [°C]:
850 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60

Installation

Application area:
Indoor
Mounting type:
Ceiling recessed
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
45

Light features

MacAdam:
6
Lumen maintenance:
L80B50@50000h
Distribution of light emission:
Direct
UGR max.:
16.0

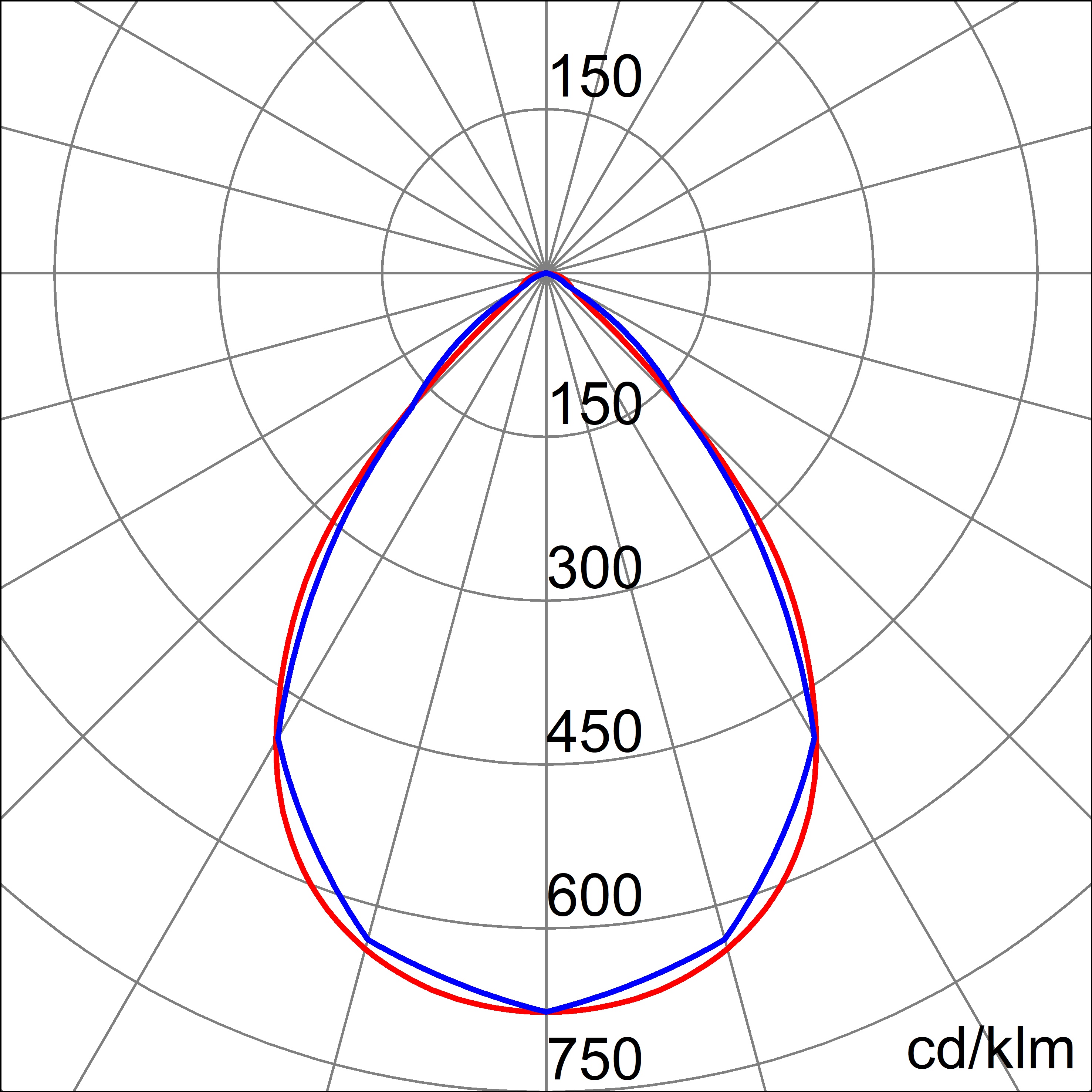

Photometric data

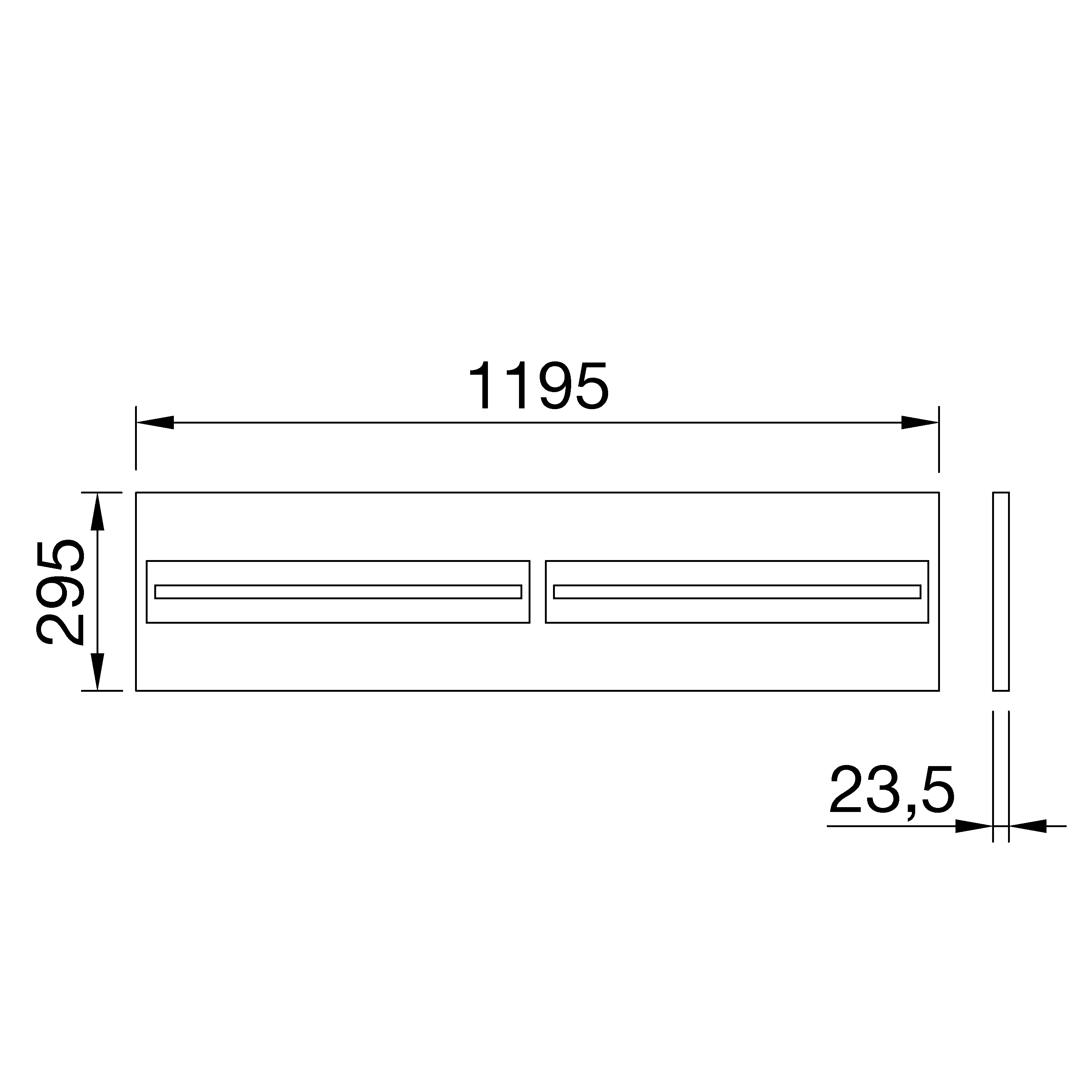

Technical drawings

Tech Design VISIO [16] M1 1200 1++

Optional accessories

VISIO [16] M1 1200

Part number Colour /
Finishing
Description Downloads
Suspension kit with 4 cables
GWF1928
Suspension kit with 4 cables
Downloads
Safety cable kit
GWF1923
Safety cable kit
Downloads
Kit with 4 springs for flush-mounting
GWF1929
Kit with 4 springs for flush-mounting
Downloads
Ceiling box kit 300x1200 mm - white
GWF1932
Ceiling box kit 300x1200 mm - white
Downloads
Emergency kit 3h
GWS2992
Emergency kit 3h
Downloads
