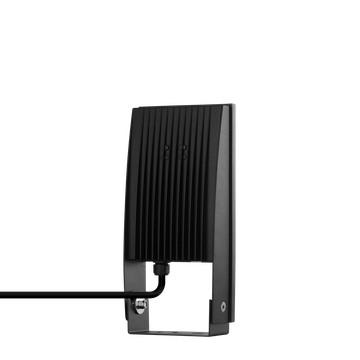

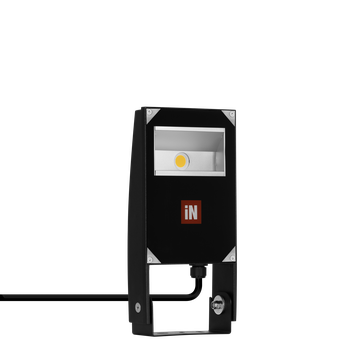

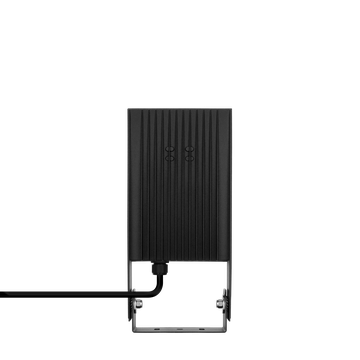

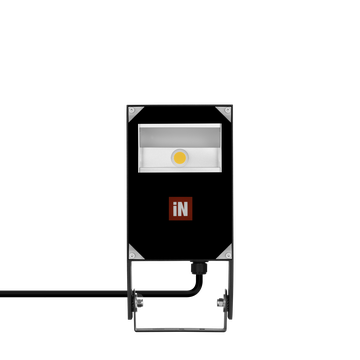

SPIDER+ 20 A/EW
SPIDER+ 20 A/EW
SPIDER+ 20 A/EW
SPIDER+ 20 A/EW
SPIDER+ 20 A/EW - 1
SPIDER+ 20 A/EW - 2
SPIDER+ 20 A/EW - 3
SPIDER+ 20 A/EW - 4

SPIDER+ 20 A/EW

Part number 3118356
  • LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - Stainless steel fasteners for glass
  • - Extra pure polished aluminium reflector
  • - Stainless steel locking hardware
  • - Polyester powder-coated steel bracket with simplified mounting system
  • - Complete with 0,7 m factory pre-wired cable H05RN-F 3G1 mm²
  • - Design by GIORGIO LODI

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
6965
Luminaire lumen output
[lm]:
6005
Luminaire
wattage [W]:
51 W
Luminous efficacy [lm/W]:
118
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
BK-81 / Black / Textured
IP degree
of protection:
IP66
Impact resistance / impact energy:
IK05 0.8J xx3
Protection class:
I
Optic:
A35/EW - Asymmetric Extra-Wide
Net weight [kg]:
1.735
Overall length [mm]:
164
Overall width [mm]:
350
Overall height [mm]:
64

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
960 °C
Frontal exposed area [m²]:
0.01
Lateral exposed area [m²]:
0.02
Top exposed area [m²]:
0.04

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.95
Inrush current [A/μs]:
40 / 150
C10 1.5 mm²:
26
C16 2.5 mm²:
43
B10 1.5 mm²:
16
B16 2.5 mm²:
27

Installation

Application area:
Outdoor
Mounting type:
Floodlighting
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
30

Light features

MacAdam:
3
Lumen maintenance:
L70B10@70000h
Distribution of light emission:
Direct
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):
IPEA* (road lighting):
A5+
IPEA* (large areas, roundabouts):
A5+
IPEA* (cycle-pedestrian):
A4+
IPEA* (green areas):
A4+
IPEA* (historic city centers):
A8+

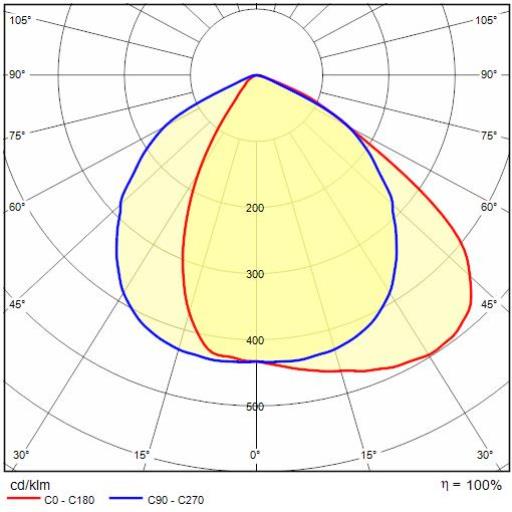

Photometric data

Photometric Lvk SPIDER+ 20 A/EW 1

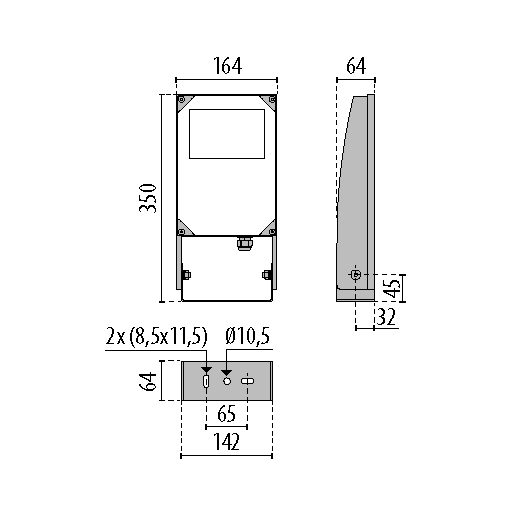

Technical drawings

Tech Design SPIDER+ 20 A/EW 1++
