TYK+ 15 C/IW
TYK+ 15 C/IW
TYK+ 15 C/IW
TYK+ 15 C/IW
TYK+ 15 C/IW - 1
TYK+ 15 C/IW - 2
TYK+ 15 C/IW - 3
TYK+ 15 C/IW - 4
TYK+ 15 C/IW - 5

TYK+ 15 C/IW

Part number LTS1603FJ830
  • LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium separate housing compartments to maximise heat dissipation between electronic components and the LEDs, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
  • - Glazing diffuser permanently sealed to the housing trough high-temperature resistant silicone
  • - High-transparency polycarbonate optics
  • - Optics assembly specifically developed for architectural lighting: custom-made optics achieve targeted illumination with precisely controlled beams without chromatic aberration
  • - Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
  • - Tear-proof nickelled brass cable gland M20x1.5 for cables Ø 10 mm- Ø 14 mm
  • - Stainless steel locking hardware
  • - Stainless steel wall-mounting bracket
  • - Integral graduated stainless steel goniometer for precise aimings

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
2400
Luminaire lumen output
[lm]:
1730
Luminaire
wattage [W]:
24 W
Luminous efficacy [lm/W]:
72
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
AN-96 / Anthracite gray / Textured
IP degree
of protection:
IP66
Impact resistance / impact energy:
IK07 4J xx5
Protection class:
I
Optic:
C/IW - Circular Wide
Beam
angle:
65°
Net weight [kg]:
1.962
Overall diameter [mm]:
160
Overall length [mm]:
160
Overall width [mm]:
102
Overall height [mm]:
190

Mechanical features

Shape:
Round 150 ≤ x ≤ 300 mm
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Frontal exposed area [m²]:
0.02
Lateral exposed area [m²]:
0.02
Top exposed area [m²]:
0.02

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Inrush current [A/μs]:
5 / 70
C10 1.5 mm²:
30
C16 2.5 mm²:
40
B10 1.5 mm²:
20
B16 2.5 mm²:
30

Installation

Application area:
Outdoor
Mounting type:
Architectural floodlight
Min. ambient temperature [°C]:
-20
Max. ambient temperature [°C]:
40
Glass temperature [°C]:
58
Min. distance from lighted object [m]:
0.50

Light features

MacAdam:
3
Lumen maintenance:
L90B10@75000h
Distribution of light emission:
Direct
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):

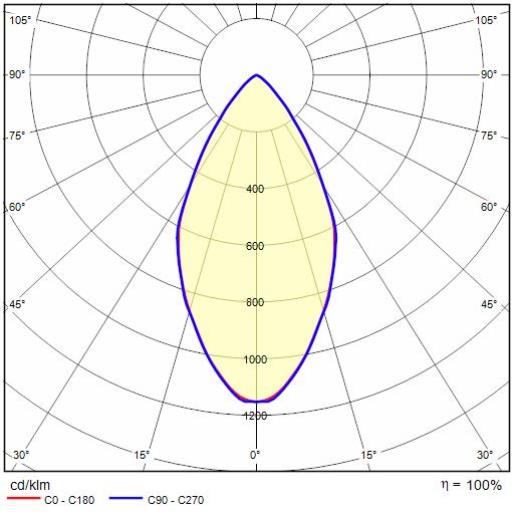

Photometric data

Photometric Lvk TYK+ 15 C/IW 1

Technical drawings

Tech Design TYK+ 15 C/IW 1++

Optional accessories

TYK+ 15

Part number Colour /
Finishing		 Description Downloads
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 1 luminaire
14029094
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 1 luminaire
Downloads
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 2 opposed luminaires
14047194
Gliding support made of painted aluminium for the installation on 60-76 mm Ø posts. 2 opposed luminaires
Downloads
Gliding support made of painted aluminium for the installation on Ø 90 mm posts
14099696
Gliding support made of painted aluminium for the installation on Ø 90 mm posts
Downloads
Gliding support made of painted aluminium for the installation on Ø 60 mm posts
14099896
Gliding support made of painted aluminium for the installation on Ø 60 mm posts
Downloads
Two-axis rotation bracket for gliding support
3107473
Two-axis rotation bracket for gliding support
Downloads
Ground spike
700191
Ground spike
Extra rotation bracket +55°/-90°
LTS1A2533
Extra rotation bracket +55°/-90°
Downloads
Barndoors painted
LTS1A3561
Barndoors painted
Downloads
Anti-glare snoot
LTS1A3571
Anti-glare snoot
Downloads
