FL ROUND+ 333 RE OP

Part number 3123862

Recessed round LED luminaire for indoor, comprising:
- Housing made from sheet steel and die-cast aluminium, powder-coated
- Future-proof thanks to simple revisions (replaceable light engine and converter)
- Opal white diffuser for optimum light distribution and excellent uniformity (OP)
- LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
- In the tunable white version, the illuminance level and light colour can be manually adjusted from 2700K to 6500K (DALI DT8)
- Direct light distribution
- 2 power levels adjustable
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Built-in driver

Documentation

Documentation
Technical Datasheets
Instruction sheets
Tender Text

2D / 3D
3D .3ds

Photometric data

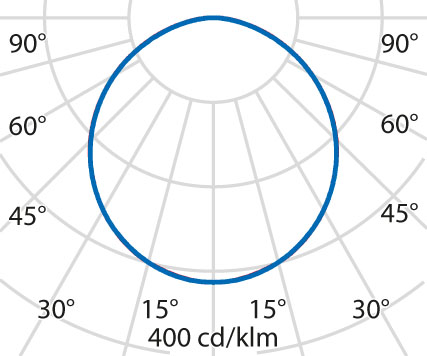

Polar Diagram .jpg
Photometric file .ldt
Photometric file .ies
DIALUX .uld
Select items to download
Send by email
Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1300/4000

Luminaire lumen output
[lm]:

1050/3180

Luminous efficacy [lm/W]:

131

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

WH-RAL9016 / White RAL9016 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

S/A - Symmetric direct

Beam
angle:

2 x 56/56

Net weight [kg]:

2.727

Overall diameter [mm]:

329

Overall height [mm]:

Cut-out dimensions [mm]:

203 X 203

Minimum installation depth [mm]:

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Opal plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 0/50/60Hz

Power factor / COS Φ:

>0.9

Installation

Application area:

Indoor

Mounting type:

Ceiling recessed

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

DFF - Downward Flux Fraction [%]:

100

UFF - Upward Flux Fraction [%]:

Photometric data

Technical drawings

Optional accessories

FL ROUND+ 333 RE

Part number	Description	Downloads
3122585	External Casambi module	Add to technical datasheetRemove from technical datasheet
3122586	Single wireless wall switch	Add to technical datasheetRemove from technical datasheet
3122587	Double wireless wall switch	Add to technical datasheetRemove from technical datasheet
