FL ROUND+ 777 PL OP CORONA

Part number 3124048

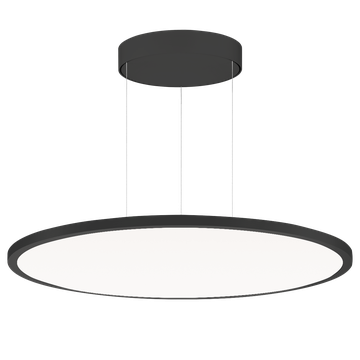

Suspended, round LED luminaire for indoor, comprising:
- Housing made from sheet steel and die-cast aluminium, powder-coated
- Future-proof thanks to simple revisions (replaceable light engine and converter)
- Opal white diffuser for optimum light distribution and excellent uniformity (OP)
- LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
- Predominantly direct light distribution
- In the tunable white version, the illuminance level and light colour can be manually adjusted from 2700K to 6500K (DALI DT8)
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Built-in driver
- Complete with steel suspension cable (1.5 m), transparent power cable and canopy

Documentation

Documentation
Technical Datasheets
Instruction sheets
Tender Text

2D / 3D
3D .3ds

Photometric data

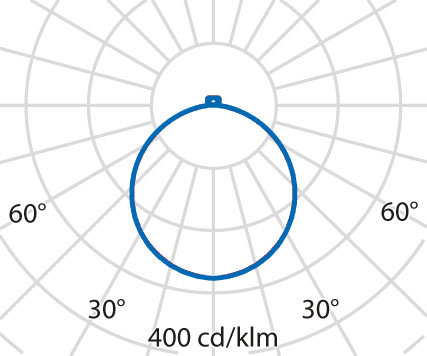

Polar Diagram .jpg
Photometric file .ies
Photometric file .ldt
DIALUX .uld
Select items to download
Send by email
Add selected items to my portfolio

Product data

ETIM Group:

EG000027

ETIM Class:

EC001743

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

6980

Luminaire lumen output
[lm]:

5180

Luminaire
wattage [W]:

38 W

Luminous efficacy [lm/W]:

136

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

BK-RAL9005 / Black RAL9005 / Textured

IP degree
of protection:

IP20

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

S/B - Symmetric mainly direct

Beam
angle:

2 x 56/56

Net weight [kg]:

7.315

Overall diameter [mm]:

725

Overall height [mm]:

Mechanical features

Shape:

Round ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Opal plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 50/60Hz

Power factor / COS Φ:

>0.9

Installation

Application area:

Indoor

Mounting type:

Suspended

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct/Indirect

DFF - Downward Flux Fraction [%]:

UFF - Upward Flux Fraction [%]:

UGR max.:

21.0
