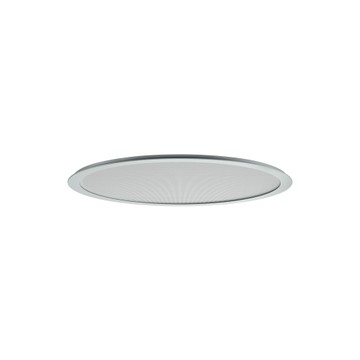

SL713AB ROUND LED MICROPRISMATIC M
SL713AB ROUND LED MICROPRISMATIC M - 1

SL713AB ROUND LED MICROPRISMATIC M

Part number 8713661343434
  • Surface-mounted round LED luminaire for indoor, comprising:
  • - Aluminium profile lightframe, steel sheet canopy, painted
  • - Micro-prismatic diffuser for efficient light distribution, glare reduction and high uniformity (MP)
  • - Predominantly direct light distribution
  • - LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
  • - Colour tolerance according to MacAdam ≤ 3 SDCM
  • - Built-in driver
  • - VDU application suitable acc. to EN 12464-1
  • - Special colour versions available. Consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
4500
Luminaire lumen output
[lm]:
3680
Luminaire
wattage [W]:
26 W
Luminous efficacy [lm/W]:
142
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
GR-RAL9006 / Grey RAL9006 / Textured
IP degree
of protection:
IP20
Impact resistance / impact energy:
IK05 0.7J xx3
Protection class:
I
Optic:
S/B - Symmetric mainly direct
Beam
angle:
2 x 47°
Net weight [kg]:
6
Overall diameter [mm]:
572
Overall height [mm]:
56

Mechanical features

Shape:
Round ≥ 300 mm
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
0.9
EEI:
A2

Installation

Application area:
Indoor
Mounting type:
Wall / Ceiling surface
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
DFF - Downward Flux Fraction [%]:
94
UFF - Upward Flux Fraction [%]:
6
UGR max.:
19.0

Photometric data

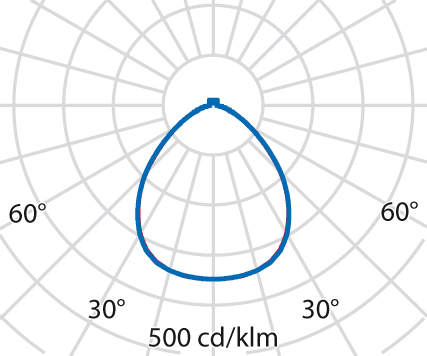

Photometric Lvk SL713AB ROUND LED MICROPRISMATIC M 1

Technical drawings

Tech Design SL713AB ROUND LED MICROPRISMATIC M 1++
