TRY S/EW
TRY S/EW
TRY S/EW
TRY S/EW
TRY S/EW - 1
TRY S/EW - 2
TRY S/EW - 3
TRY S/EW - 4
TRY S/EW - 5

TRY S/EW

Part number 305692
  • LED system for indoor lighting consisting of luminaires and electrified RAIL, suitable for commercial and industrial applications, comprising:
  • - Extruded aluminium luminaire housing, polyester powder coat, white finish
  • - High-transparency polycarbonate optics
  • - Built-in driver
  • - Tool-free springs installation of the luminaire to the electric RAIL
  • - To be combined with the 7-pole DALI RAIL
  • - RAILs feature internal 3 phases 2.5 mm² cables, fast connectors and circuit breakers for a quick installation of the luminaire

Product data

ETIM Group:
EG000027
ETIM Class:
EC002892

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
7334
Luminaire lumen output
[lm]:
6281
Luminaire
wattage [W]:
42 W
Luminous efficacy [lm/W]:
150
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
WH-RAL9003 / White RAL9003 / Glossy
IP degree
of protection:
IP40
Impact resistance / impact energy:
IK05 0.8J xx3
Protection class:
I
Optic:
S/EW - Symmetric Extra-Wide
Net weight [kg]:
2.2
Overall length [mm]:
1434
Overall width [mm]:
66
Overall height [mm]:
66

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC/DC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
0/50/60
Power factor / COS Φ:
0.9
Input voltage [V DC]:
168/275
Inrush current [A/μs]:
25 / 214
C10 1.5 mm²:
21
C16 2.5 mm²:
35
B10 1.5 mm²:
13
B16 2.5 mm²:
21

Installation

Application area:
Indoor
Mounting type:
Trunking system
Min. ambient temperature [°C]:
-25
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@60000h
Distribution of light emission:
Direct

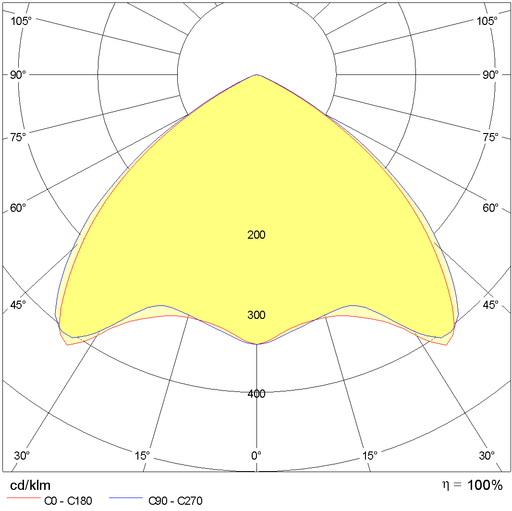

Photometric data

Photometric Lvk TRY S/EW 1

Technical drawings

Tech Design TRY S/EW 1++

Mandatory accessories

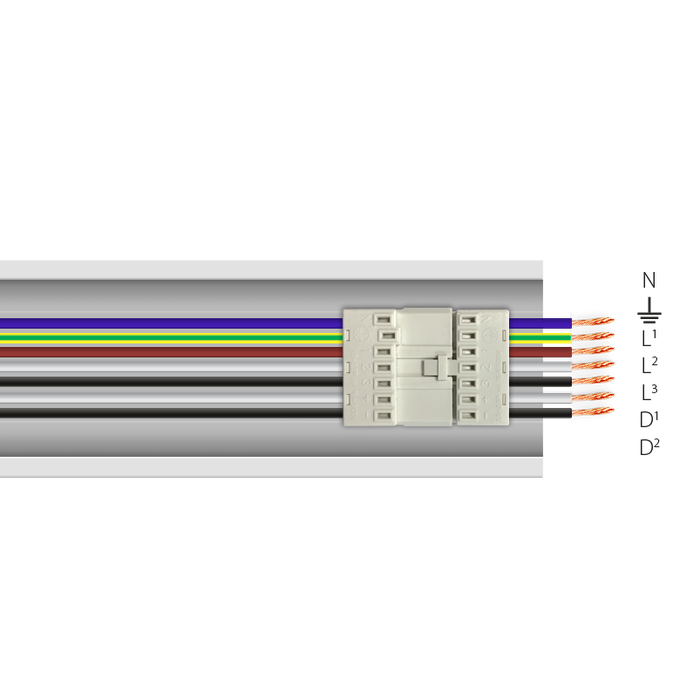

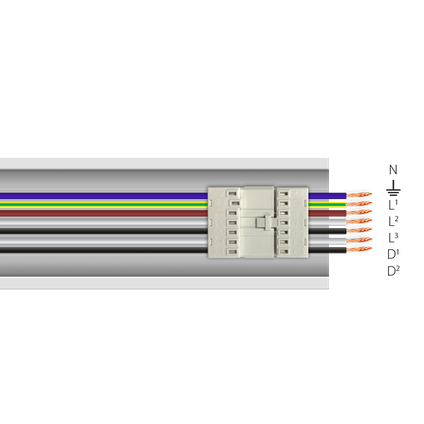

RAIL-A TRY 7P DALI

Part number Colour /
Finishing		 Description Downloads
RAIL-A TRY 7P DALI - L 1435 mm (2 stainless steel brackets included)
310558
RAIL-A TRY 7P DALI - L 1435 mm (2 stainless steel brackets included)
Downloads

RAIL-M TRY 7P DALI

Part number Colour /
Finishing		 Description Downloads
RAIL-M TRY 7P DALI - L 1435 mm (2 stainless steel brackets included)
310559
RAIL-M TRY 7P DALI - L 1435 mm (2 stainless steel brackets included)
Downloads
RAIL-M TRY 7P DALI - L 2870 mm (4 stainless steel brackets included)
310560
RAIL-M TRY 7P DALI - L 2870 mm (4 stainless steel brackets included)
Downloads
RAIL-M TRY 7P DALI - L 4305 mm (6 stainless steel brackets included)
310561
RAIL-M TRY 7P DALI - L 4305 mm (6 stainless steel brackets included)
Downloads

Optional accessories

TRY

Part number Colour /
Finishing		 Description Downloads
Suspension kit (2 m)
14-00354
Suspension kit (2 m)
Chain suspension
310550
Chain suspension
Closing plates for RAIL (nr. 2)
310551
Closing plates for RAIL (nr. 2)
Cover PC RAIL - L 1435 mm
310553
Cover PC RAIL - L 1435 mm
Stainless steel fast fit strong for quick ceiling mount (2 pieces)
3100243
Stainless steel fast fit strong for quick ceiling mount (2 pieces)
Stainless steel fast fit strong for quick ceiling mount (50 pieces)
3100244
Stainless steel fast fit strong for quick ceiling mount (50 pieces)
Stainless steel fast fit strong for quick ceiling mount+ hooks (2 pieces)
3100245
Stainless steel fast fit strong for quick ceiling mount+ hooks (2 pieces)
Stainless steel fast fit strong for quick ceiling mount + hooks (50 pieces)
3100246
Stainless steel fast fit strong for quick ceiling mount + hooks (50 pieces)

SMART accessories

TRY SMART

Part number Colour /
Finishing		 Description Downloads

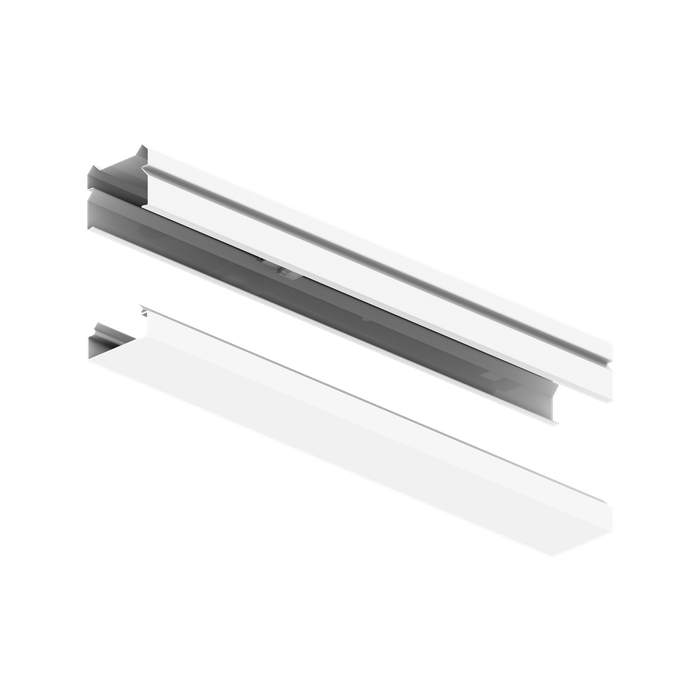

Kit TRY SMART A receiver
310568
Kit TRY SMART A receiver
Downloads

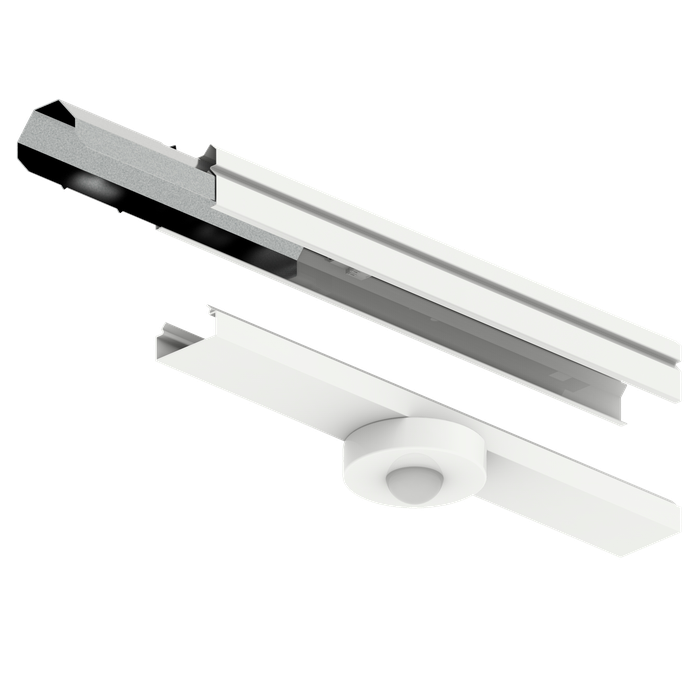

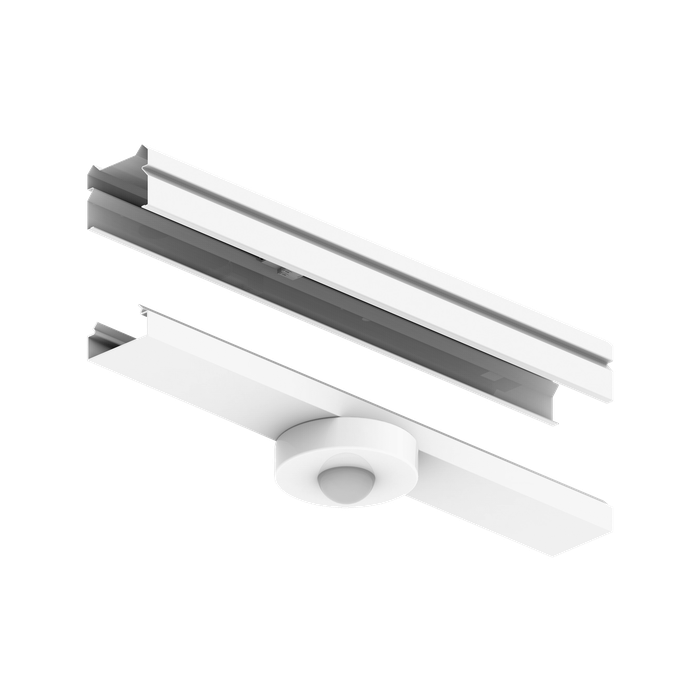

Kit TRY SMART A receiver + sensor
310914
Kit TRY SMART A receiver + sensor
Downloads
Kit TRY SMART M sensor
310567
Kit TRY SMART M sensor
Downloads
USB flash drive to use with PC for wireless programming
14469720
USB flash drive to use with PC for wireless programming
Remote control with four configurable buttons
14469820
Remote control with four configurable buttons
Wireless control pad with four configurable buttons
14477420
Wireless control pad with four configurable buttons
