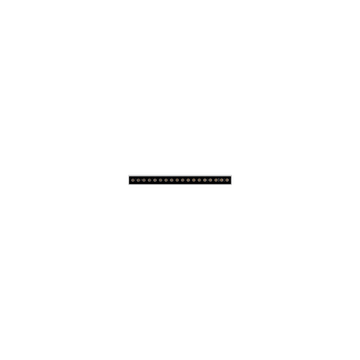

NOTTURNO 500

Part number 3107536

Series of linear wall LED luminaires for indoor and outdoor, comprising:
- Extruded anodised aluminium housing
- Toughened, glass diffuser, silk-screened on the inside
- Stainless steel AISI 304 end caps
- Aluminium heat sink
- For luminaire installation, please select the appropriate bracket (available as mandatory accessory)

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2016

Luminaire lumen output
[lm]:

1606

Luminaire
wattage [W]:

20 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

GR-11 / Anodised grey / Matt

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK07 2J xx5

Protection class:

III

Optic:

ELL - Elliptical

Beam
angle:

13°x36°

Net weight [kg]:

1.121

Overall length [mm]:

504

Overall width [mm]:

Overall height [mm]:

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

850 °C

Electrical features

Voltage type:

Power factor / COS Φ:

>0.9

Installation

Application area:

Outdoor

Mounting type:

Architectural floodlight

Min. ambient temperature [°C]:

-30

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Zero light pollution (ULR = 0%):

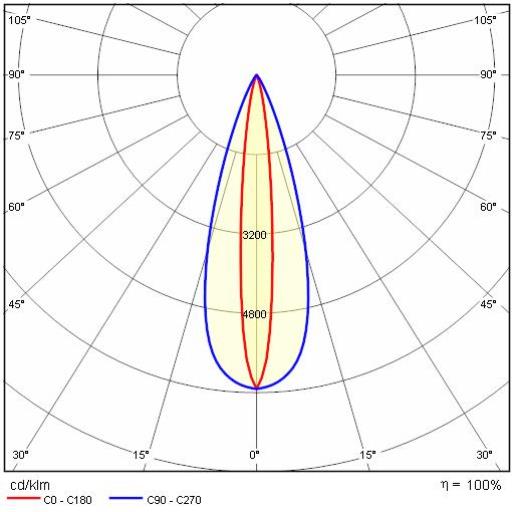

Photometric data

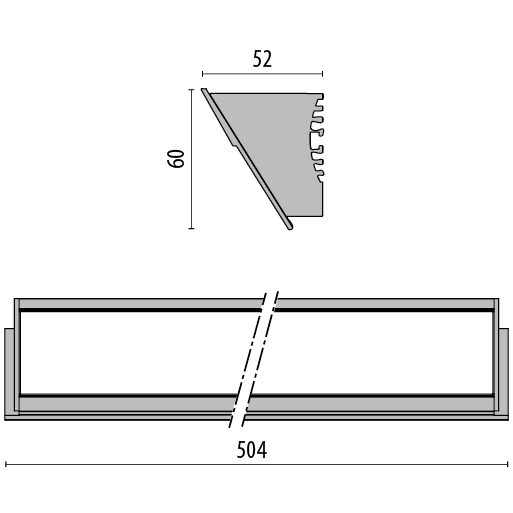

Technical drawings

Control gear

NOTTURNO - DALI

	Part number	Colour / Finishing	Description	Downloads

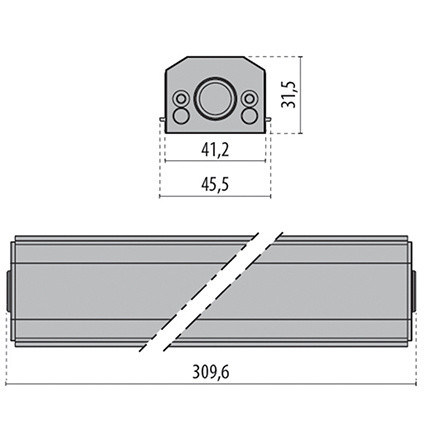

	3107574		Power Supply Unit DALI IN L500	Add to technical datasheetRemove from technical datasheet
	3107575		Boîtier d’alimentation DALI IN / OUT L500	Add to technical datasheetRemove from technical datasheet
