SL787+ RE OP

Part number 3109610

Series of recessed LED luminaires, comprising:
- Extruded aluminium profile housing, die-cast aluminium end caps, powder-coated
- Opal PMMA diffuser for optimal light distribution and uniformity
- Streamlined, simple design with flush end caps
- High-quality workmanship of profile connections for a perfect look
- UGR <19 for all luminosities
- Through-wiring designed
- Simple and convenient lighting installation
- Interchangeable lighting inserts
- Direct light distribution
- Colour tolerance according to MacAdam ≤ 3 SDCM
- Includes recessed mounting kit
- Continuous mounted options and many other configurations are available at www.light-performer.com

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1720

Luminaire lumen output
[lm]:

1530

Luminaire
wattage [W]:

10 W

Luminous efficacy [lm/W]:

153

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

WH-RAL9016 / White RAL9016 / Textured

IP degree
of protection:

IP40

IP above/below ceiling:

IP40/IP43

Impact resistance / impact energy:

IK05 0.7J xx3

Protection class:

Optic:

S/A - Symmetric direct

Beam
angle:

2 x 48°/51°

Net weight [kg]:

3.615

Overall length [mm]:

1132

Overall width [mm]:

Overall height [mm]:

110

Cut-out dimensions [mm]:

1134 X 72

Minimum installation depth [mm]:

110

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Opal plastic

Glow wire test [°C]:

650 °C

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 50/60Hz

Power factor / COS Φ:

0.9

Input voltage [V DC]:

176/280

Inrush current [A/μs]:

21 / 126

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

EEI:

Installation

Application area:

Indoor

Mounting type:

Ceiling recessed

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@50000h

Distribution of light emission:

Direct

DFF - Downward Flux Fraction [%]:

100

UFF - Upward Flux Fraction [%]:

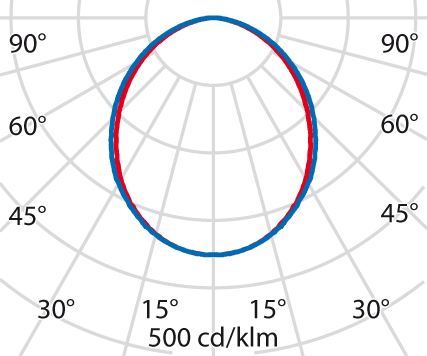

Photometric data

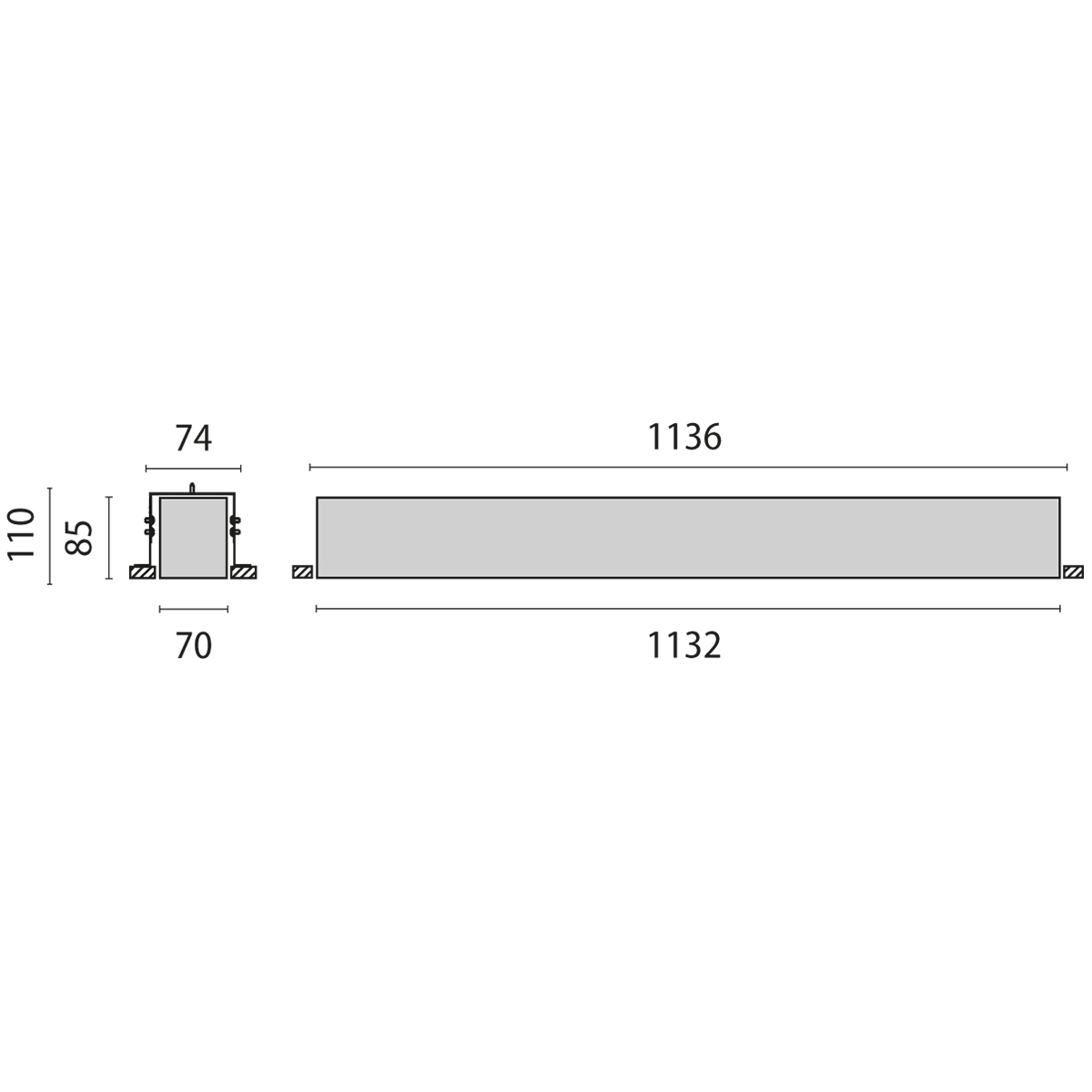

Technical drawings
