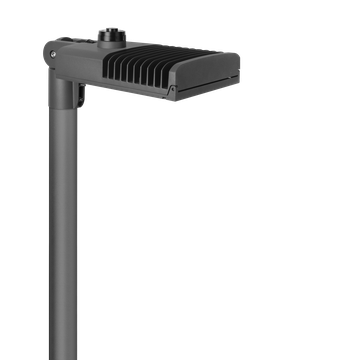

THEOS GLASS MINI SR/100 NEMA

Part number 3108903

Series of LED street lighting luminaires, ,comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Coated die-cast aluminium captive trim, hinged to the housing
- Coated die-cast aluminium pole-top adaptor for pole Ø 60 / 76 mm
- High-transparency polycarbonate optics
- The Secure Light Distribution (SLD) system guarantees uniform light distribution even in the remote case of LED failures
- Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
- Extra clear, toughened, flat glass diffuser
- The integral switch splitter automatically disconnects the driver from mains when opened
- Built-in driver
- Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM)
- Stainless steel locking hardware
- Complete with 1 m factory pre-wired cable H07RN-F 2x1.5 mm²
- Complete with NEMA socket connected to DALI driver and waterproof short-circuit cap for On/Off operation mode and SMART-compatible mounting solutions (NEMA options)
- UNI 10819 light pollution standards compliant (0% ULOR rating)
- Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory
- Third-party controls NEMA 7-pin socket options available. Consult factory
- CLO (Constant Light Output) options available. Consult factory
- Design by SILVIA PAOLA PENNACCHIO

Product data

ETIM Group:

EG000027

ETIM Class:

EC000062

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

5974

Luminaire lumen output
[lm]:

5503

Luminaire
wattage [W]:

35 W

Luminous efficacy [lm/W]:

157

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK08 9J xx5

Protection class:

Optic:

SR/100 - Street

Net weight [kg]:

6.68

Overall length [mm]:

506

Overall width [mm]:

280

Overall height [mm]:

247

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

650 °C

Lateral exposed area [m²]:

0.04

Top exposed area [m²]:

0.11

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.95

Surge protection | Common [kV]:

8.000000

Surge protection | Differential [kV]:

10.000000

Inrush current [A/μs]:

65 / 100

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Street lighting

Min. ambient temperature [°C]:

-40

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.50

Light features

MacAdam:

Lumen maintenance:

L90B10@100000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*4

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A8+

IPEA* (large areas, roundabouts):

A9+

IPEA* (cycle-pedestrian):

A7+

IPEA* (green areas):

A7+

IPEA* (historic city centers):

A12+

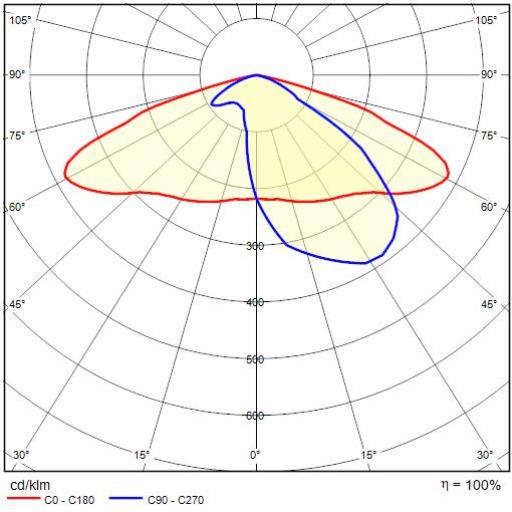

Photometric data

Photometric Lvk THEOS GLASS MINI SR/100 NEMA 1

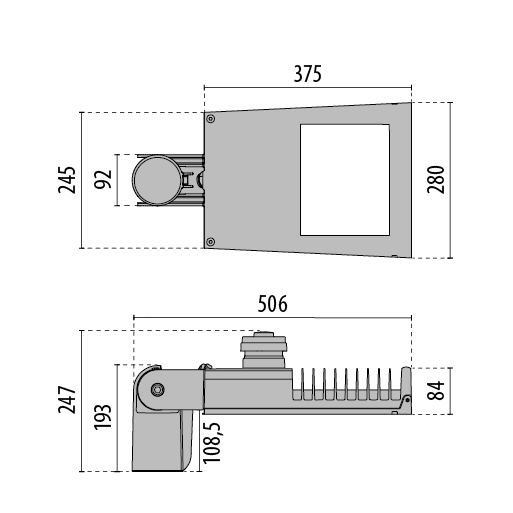

Technical drawings

Optional accessories

THEOS GLASS

	Part number	Colour / Finishing	Description	Downloads
	14174796		Wall mount bracket THEOS	Add to technical datasheetRemove from technical datasheet Downloads Documentation: THEOS GLASS - 14174796
	14077796		Hot-dipped galvanized wall angled steel bracket, cataphoresis and polyester powder	Add to technical datasheetRemove from technical datasheet
