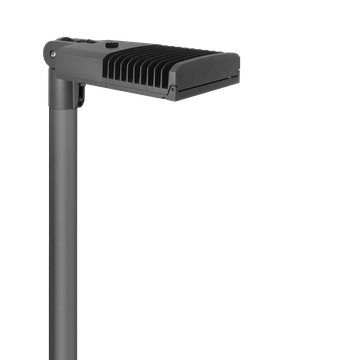

THEOS GLASS MINI SR/100 ZHAGA

Part number 3112853

LED street luminaire, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Coated die-cast aluminium captive trim, hinged to the housing
- Coated die-cast aluminium pole-top adaptor for pole Ø 60 / 76 mm
- High-transparency polycarbonate optics
- The Secure Light Distribution (SLD) system guarantees uniform light distribution even in the remote case of LED failures
- Anti-ageing custom moulded silicone sealing gasket(s) with resilient elastic return capacity
- Extra clear, toughened, flat glass diffuser
- Built-in driver
- Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM)
- Stainless steel locking hardware
- Complete with 1 m factory pre-wired cable H07RN-F 2x1.5 mm²
- UNI 10819 light pollution standards compliant (0% ULOR rating)
- Complete with ZHAGA socket positioned on the upper part of the luminaire (UP position) and D4i driver. Ready for "radio frequency node" smart, twilight and other compatible solutions (ZHAGA options). Consult factory for more options
- Upon request, luminaires can be provided with ZHAGA socket positioned in the lower part of the luminaire (DOWN position) or mixed (UP position + DOWN position) to be able to connect presence and/or motion detectors or combined solutions
- Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory
- Design by SILVIA PAOLA PENNACCHIO

Product data

ETIM Group:

EG000027

ETIM Class:

EC000062

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

5974

Luminaire lumen output
[lm]:

5503

Luminaire
wattage [W]:

35 W

Luminous efficacy [lm/W]:

157

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK08 9J xx5

Protection class:

Optic:

SR/100 - Street

Net weight [kg]:

6.5

Overall length [mm]:

506

Overall width [mm]:

280

Overall height [mm]:

195

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

650 Â°C

Lateral exposed area [m²]:

0.07

Top exposed area [m²]:

0.17

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

0.9

Surge protection | Common [kV]:

10.000000

Surge protection | Differential [kV]:

10.000000

Inrush current [A/μs]:

26 / 180

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Street lighting

Min. ambient temperature [°C]:

-40

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.50

Light features

MacAdam:

Lumen maintenance:

L90B10@100000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*4

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A8+

IPEA* (large areas, roundabouts):

A9+

IPEA* (cycle-pedestrian):

A7+

IPEA* (green areas):

A7+

IPEA* (historic city centers):

A12+

Photometric data

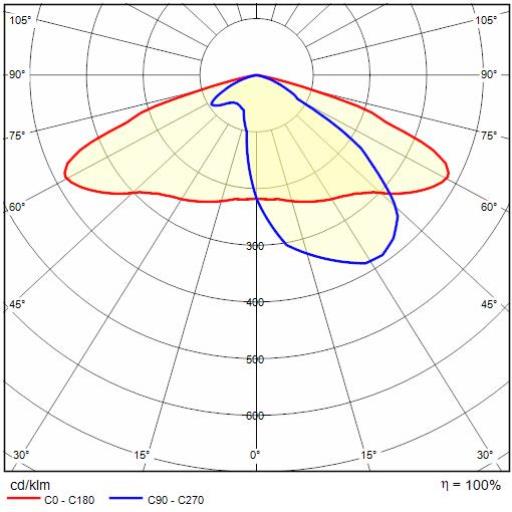

Photometric Lvk THEOS GLASS MINI SR/100 ZHAGA 1

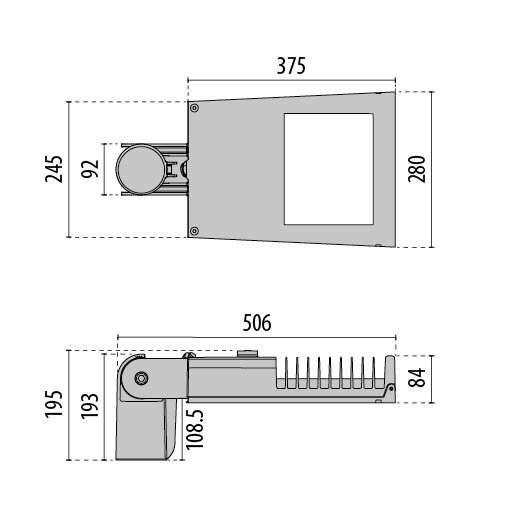

Technical drawings

Optional accessories

THEOS GLASS

	Part number	Colour / Finishing	Description	Downloads
	14174796		Wall mount bracket THEOS	Add to technical datasheetRemove from technical datasheet Downloads Documentation: THEOS GLASS - 14174796
	14077796		Hot-dipped galvanized wall angled steel bracket, cataphoresis and polyester powder	Add to technical datasheetRemove from technical datasheet
