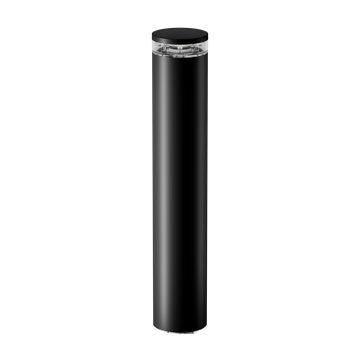

INDEX+ 86 C/EW

Part number 3121749

Series of bollards, comprising:
- Die-cast aluminium cover painted prior chemical preparation of the surface
- UV stabilised transparent polycarbonate diffuser
- UV and heat stabilised high-transparency polycarbonate optics. The optical unit compartment features superior heat dissipation and IK10-rated impact resistance grating specific light distributions
- Aluminium heat sink
- Anti-ageing custom moulded silicone sealing gasket(s)
- Technopolymer cable compartment cover
- Stainless steel locking hardware
- Each luminaire is supplied with two IP 68 cable gland allowing a single or a through power connection
- Die-cast aluminium floor mount base polyester powder coat finish prior chemical surface conversion
- AISI 304 stainless steel sheet metal sturdy bases for floor mounting are available as accessories. For purpose illumination: promoting safe navigation through campuses, car parks and public spaces
- Concrete installation fixing rods are available as accessories. Compatible with standard die-cast aluminium and optional stainless steel heavy use (HU) baseplates

Product data

ETIM Group:

EG000027

ETIM Class:

EC000301

General information

Lampholder:

LED

Light source:

Lightsource lumen output
[lm]:

2130

Luminaire lumen output
[lm]:

1547

Luminaire
wattage [W]:

13 W

Luminous efficacy [lm/W]:

119

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

BK-81 / Black / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK10 20J xx9

Protection class:

Optic:

C/EW - Circular Extra-Wide

Net weight [kg]:

5.232

Overall diameter [mm]:

154

Overall height [mm]:

860

Mechanical features

Shape:

Round 150 ≤ x ≤ 300 mm

Housing material:

Plastic

Diffuser material:

Transparent plastic

Glow wire test [°C]:

750 °C

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 50/60Hz

Power factor / COS Φ:

>0.95

Input voltage [V DC]:

170/280

Surge protection | Common [kV]:

4.000000

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Bollards

Light features

MacAdam:

Lumen maintenance:

L70B10@147000h

Distribution of light emission:

Direct

Luminous Intensity Class:

None

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A5+

IPEA* (large areas, roundabouts):

A6+

IPEA* (cycle-pedestrian):

A4+

IPEA* (green areas):

A4+

IPEA* (historic city centers):

A8+

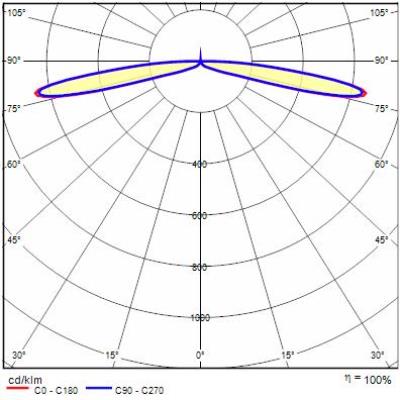

Photometric data

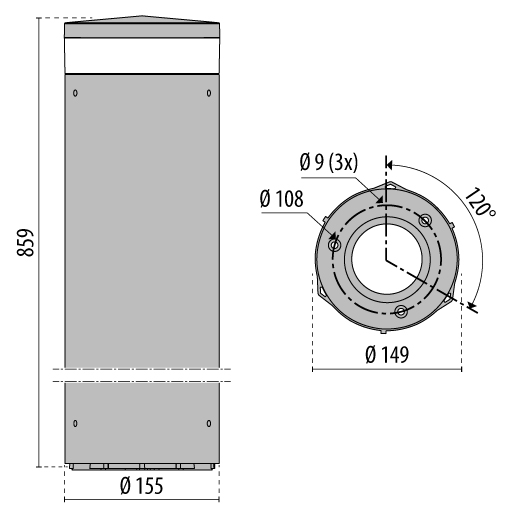

Technical drawings

Optional accessories

INDEX+

Part number	Description	Downloads
3114401	AISI 316 stainless steel floor installation base	Add to technical datasheetRemove from technical datasheet Downloads Documentation: INDEX+ - 3114401
3114402	AISI 316 stainless steel floor installation base	Add to technical datasheetRemove from technical datasheet Downloads Documentation: INDEX+ - 3114402
14049320	Concrete mounting adaptor with stainless steel plate and galvanised steel rods	Add to technical datasheetRemove from technical datasheet Downloads Documentation: INDEX+ - 14049320
