SL720+ PL MP S/C
SL720+ PL MP S/C
SL720+ PL MP S/C - 1
SL720+ PL MP S/C - 2

SL720+ PL MP S/C

Part number 3113292
  • Suspended, LED luminaire for indoor, comprising:
  • - Extruded aluminium housing profile, powder-coated
  • - Micro-prismatic diffuser for efficient light distribution, glare reduction and high uniformity (MP)
  • - LED Sidelight-Technology for a homogenous light distribution over the entire area of the cover
  • - Easy, subsequent replacement of the LED modules in just a few simple steps (can also be carried out without an electrician)
  • - Direct / indirect light distribution
  • - Colour tolerance according to MacAdam ≤ 3 SDCM
  • - DALI dimmable
  • - With the “OSRAM BT Control” Bluetooth control, the light can be easily configured, personalised or grouped via the app using various parameters
  • - Complete with steel suspension cable (1.5 m), transparent power cord and canopy
  • - VDU application suitable acc. to EN 12464-1
  • - Special colour versions available. Consult factory

Product data

ETIM Group:
EG000027
ETIM Class:
EC001743

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
11010
Luminaire lumen output
[lm]:
9010
Luminaire
wattage [W]:
69 W
Luminous efficacy [lm/W]:
131
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
WH-RAL9016 / White RAL9016 / Textured
IP degree
of protection:
IP20
Impact resistance / impact energy:
IK05 0.7J xx3
Protection class:
I
Optic:
S/C - Symmetric direct-indirect
Beam
angle:
2 x 41°/41°
Net weight [kg]:
5.29
Overall length [mm]:
1538
Overall width [mm]:
240

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Transparent plastic
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
0.9
EEI:
A1

Installation

Application area:
Indoor
Mounting type:
Suspended
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct/Indirect
DFF - Downward Flux Fraction [%]:
36
UFF - Upward Flux Fraction [%]:
64
UGR max.:
14.0

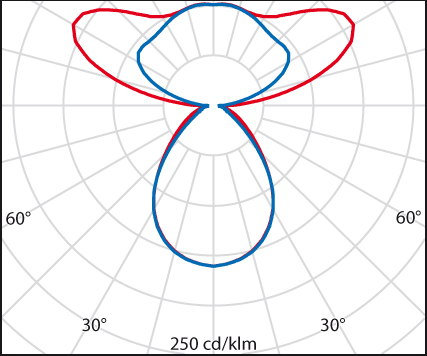

Photometric data

Photometric Lvk SL720+ PL MP S/C 1

Technical drawings

Tech Design SL720+ PL MP S/C 1++
