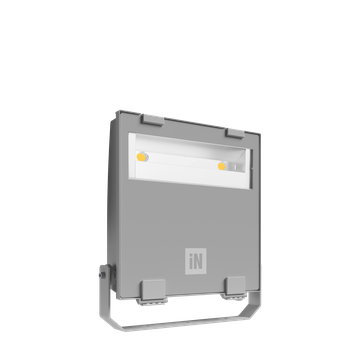

Name: GUELL 2.5+ 175 A40/W 840 GR94
Brand: Performance in Lighting
SKU: LTF1623FA840

Product data

ETIM Group:

EG000027

ETIM Class:

EC001744

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

28602

Luminaire lumen output
[lm]:

23365

Luminaire
wattage [W]:

175 W

Luminous efficacy [lm/W]:

134

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

GR-94 / Metallic grey / Textured

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK07 3J xx5

Protection class:

Optic:

A40/W - Asymmetric Wide

Net weight [kg]:

6.409

Overall length [mm]:

355

Overall width [mm]:

425

Overall height [mm]:

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Glow wire test [°C]:

650 °C

Frontal exposed area [m²]:

0.03

Lateral exposed area [m²]:

0.03

Top exposed area [m²]:

0.14

Electrical features

Voltage type:

Input voltage [V AC]:

100/305

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Surge protection | Common [kV]:

10.000000

Surge protection | Differential [kV]:

6.000000

Inrush current [A/μs]:

120 / 200

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Professional floodlight

Min. ambient temperature [°C]:

-40

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

1.00

Light features

MacAdam:

Lumen maintenance:

L80B10@78000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*6

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

A3+

IPEA* (large areas, roundabouts):

A7+

IPEA* (cycle-pedestrian):

A4+

IPEA* (green areas):

A4+

IPEA* (historic city centers):

A9+

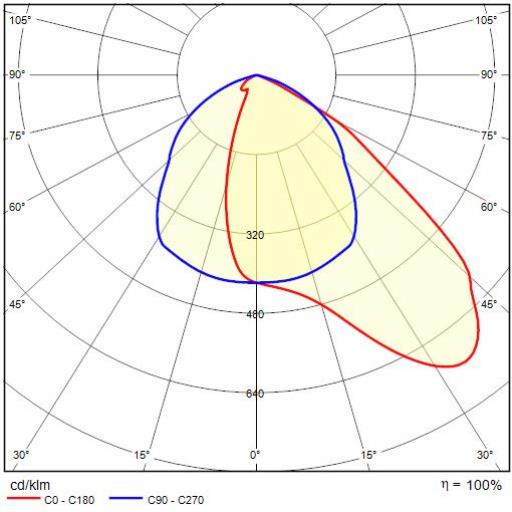

Photometric data

Technical drawings

Optional accessories

GUELL 2.5+

Part number	Description	Downloads
LTF1A3652	Louvre GUELL 2.5+	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 2.5+ - LTF1A3652
LTF1A5603	Protective grid GUELL 2.5+	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 2.5+ - LTF1A5603
14012294	Steel ‘U’ bolt clamp for Ø 60-80 mm poles painted aluminium grey	Add to technical datasheetRemove from technical datasheet
310966	Single pole top support GUELL 2.5	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 2.5+ - 310966
310967	Double pole top support GUELL 2.5	Add to technical datasheetRemove from technical datasheet Downloads Documentation: GUELL 2.5+ - 310967

GUELL 2.5+ A/W
