GUELL 2.5+ S/W
GUELL 2.5+ S/W
GUELL 2.5+ S/W
GUELL 2.5+ S/W - 1
GUELL 2.5+ S/W - 2
GUELL 2.5+ S/W - 3

GUELL 2.5+ S/W

Part number LTF1625FS830
  • LED floodlight for indoor and outdoor, comprising:
  • - Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
  • - Extra clear, toughened, flat glass diffuser
  • - High-performance polished, oxidised, iridescence-free, aluminium reflector (Al 99.99)
  • - Anti-ageing custom moulded silicone sealing gasket(s)
  • - M20x1.5 cable gland for cables Ø10–Ø14 mm
  • - Stainless steel locking hardware
  • - Fully integrated stainless steel aluminium spring clips
  • - Powder-coated steel tiltable bracket
  • - Openable and maintainable luminaire (future-proof)
  • - Protected against power surges up to 10 kV
  • - Other colour temperatures (CCT) and colour rendering index (CRI) options available. Consult factory
  • - Design by GIORGIO LODI
  • - Design by GIORGIO LODI

Product data

ETIM Group:
EG000027
ETIM Class:
EC001744

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
30960
Luminaire lumen output
[lm]:
25800
Luminaire
wattage [W]:
212 W
Luminous efficacy [lm/W]:
122
CRI:
80
Colour
temperature [K]:
3000
Colour /
Finishing:
GR-94 / Metallic grey / Textured
IP degree
of protection:
IP66
Impact resistance / impact energy:
IK07 3J xx5
Protection class:
I
Optic:
S/W - Symmetric Wide
Net weight [kg]:
6.533
Overall length [mm]:
355
Overall width [mm]:
425
Overall height [mm]:
85

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
Glass
Glow wire test [°C]:
650 °C
Frontal exposed area [m²]:
0.03
Lateral exposed area [m²]:
0.03
Top exposed area [m²]:
0.14

Electrical features

Voltage type:
AC
Input voltage [V AC]:
100/305
Input frequency [Hz]:
50/60
Power factor / COS Φ:
>0.9
Surge protection | Common [kV]:
10.000000
Surge protection | Differential [kV]:
6.000000
Inrush current [A/μs]:
120 / 200
C10 1.5 mm²:
5
C16 2.5 mm²:
9
B10 1.5 mm²:
3
B16 2.5 mm²:
5

Installation

Application area:
Outdoor
Mounting type:
Professional floodlight
Min. ambient temperature [°C]:
-40
Max. ambient temperature [°C]:
25
Min. distance from lighted object [m]:
1.00

Light features

MacAdam:
3
Lumen maintenance:
L80B10@78000h
Distribution of light emission:
Direct
DFF - Downward Flux Fraction [%]:
100
UFF - Upward Flux Fraction [%]:
0
Luminous Intensity Class:
G*6
Zero light pollution (ULR = 0%):
IPEA* (road lighting):
A+
IPEA* (large areas, roundabouts):
A5+
IPEA* (cycle-pedestrian):
A++
IPEA* (green areas):
A++
IPEA* (historic city centers):
A6+

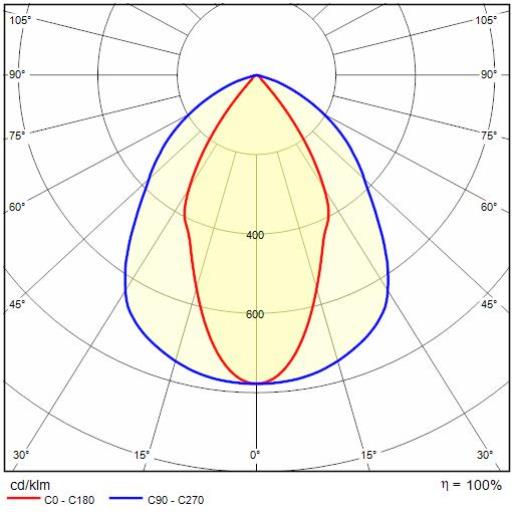

Photometric data

Technical drawings

Tech Design GUELL 2.5+ S/W 1++

Optional accessories

GUELL 2.5+

Part number Colour /
Finishing
Description Downloads
Protective grid GUELL 2.5+
LTF1A5603
Protective grid GUELL 2.5+
Downloads
Steel ‘U’ bolt clamp for Ø 60-80 mm poles painted aluminium grey
14012294
Steel ‘U’ bolt clamp for Ø 60-80 mm poles painted aluminium grey
Single pole top support GUELL 2.5
310966
Single pole top support GUELL 2.5
Downloads
Double pole top support GUELL 2.5
310967
Double pole top support GUELL 2.5
Downloads
