MIMIK 50 B CP/T2 EM3P

Part number 3104529

Wall-mounted LED luminaire, comprising:
- Die-cast aluminium housing, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Anti-ageing custom moulded silicone sealing gasket(s)
- Extra-clear, toughened, flat glass diffuser, silk-screened on the inside
- High-transparency polycarbonate optics
- Built-in driver
- Stainless steel locking hardware
- EM/3P version is designed for multipurpose 3 hours sustained emergency lighting
- Ni-Cd 3,6 V, 4 Ah batteries, 24 hours recharge time
- Single (M) and dual (B) emission versions available
- Standard separate switch (DA) for individual upward and downward light emission (B versions)
- Double emission (B) DALI versions have two drivers.Dual ignition is possible by assigning and managing addresses within the DALI protocol
- DALI versions have an operating temperature up to -40°C
- Optimised asymmetric distribution for wide spacing and lighting-class levels matching (CP options)
- Openable and maintainable luminaire (future-proof)

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED+LED

Light source:

LED LED

Lightsource lumen output
[lm]:

18000

Luminaire lumen output
[lm]:

13198

Luminaire
wattage [W]:

53 W + 53 W

Luminous efficacy [lm/W]:

125

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK06 1J xx3

Protection class:

Optic:

CP/T2 - Cycle/Pedestrian Type II

Net weight [kg]:

10.589

Overall length [mm]:

500

Overall width [mm]:

Overall height [mm]:

500

Mechanical features

Shape:

Square ≥ 300 mm

Housing material:

Aluminium

Diffuser material:

Glass

Electrical features

Voltage type:

AC/DC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

0/50/60

Power factor / COS Φ:

>0.9

Input voltage [V DC]:

186/250

Surge protection | Common [kV]:

10.000000

Surge protection | Differential [kV]:

6.000000

Inrush current [A/μs]:

85 / 260

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Exterior wall

Min. ambient temperature [°C]:

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@71000h

Distribution of light emission:

Direct/Indirect

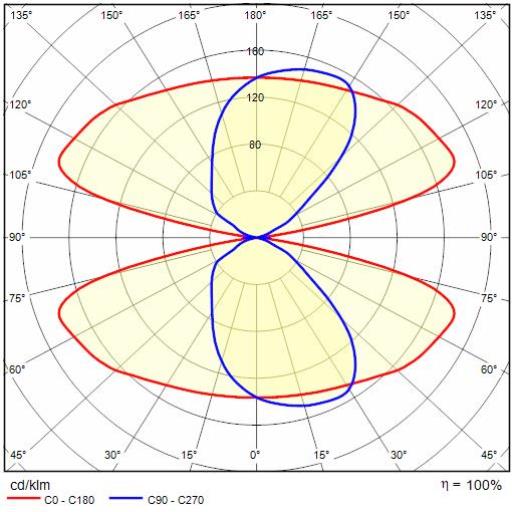

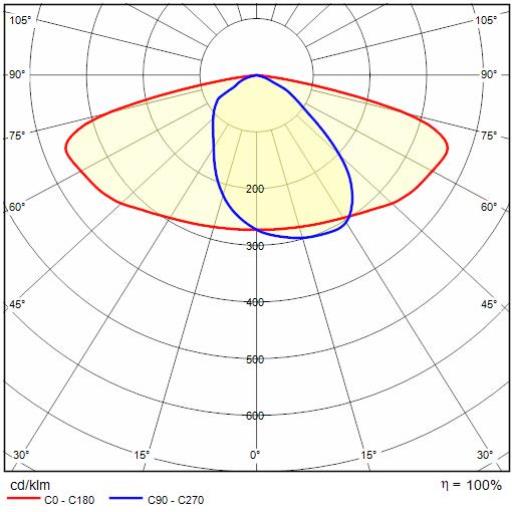

Photometric data

Technical drawings
