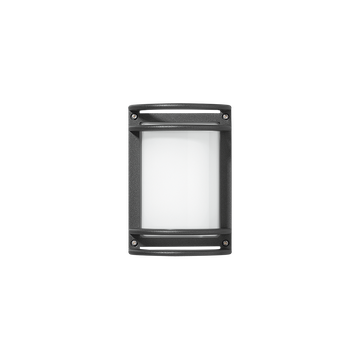

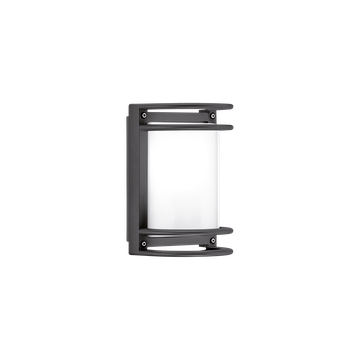

NIKKO+21 LED

Part number 301411

Wall, ceiling and post mounted luminaire for indoor and outdoor, comprising:
- Die-cast aluminium housing and trim, polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- Pressed glass diffuser, internally coated, secured with the ring
- Technopolymer silicone sealing gasket
- Stainless steel locking hardware
- Design by ROBERTO FIORATO
- Design by ROBERTO FIORATO

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

1282

Luminaire lumen output
[lm]:

745

Luminaire
wattage [W]:

10 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

4000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP65

Impact resistance / impact energy:

IK05 0.7J xx3

Protection class:

Optic:

S/EW - Symmetric Extra-Wide

Net weight [kg]:

1.625

Overall length [mm]:

148

Overall width [mm]:

130

Overall height [mm]:

213

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

0.9

Inrush current [A/μs]:

5 / 30

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Bulkhead

Min. ambient temperature [°C]:

-10

Max. ambient temperature [°C]:

Light features

MacAdam:

Lumen maintenance:

L80B10@100000h

Distribution of light emission:

Direct

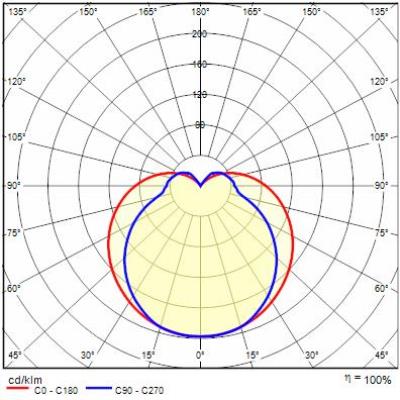

Photometric data

Technical drawings

Optional accessories

NIKKO+21

Part number	Description	Downloads
000402	Wall bracket 21	Add to technical datasheetRemove from technical datasheet Downloads Documentation: NIKKO+21/27 - 000402
000406	Post 21 235 mm	Add to technical datasheetRemove from technical datasheet Downloads Documentation: NIKKO+21/27 - 000406
000410	Post 21 583 mm	Add to technical datasheetRemove from technical datasheet Downloads Documentation: NIKKO+21/27 - 000410
