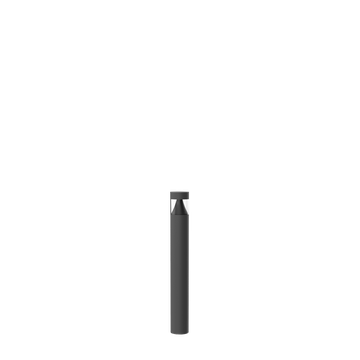

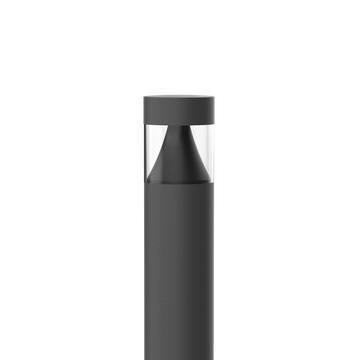

KHA CITY COMFORT 12 C/EW

Part number 3113982

Series of lighting columns, comprising:
- The COMFORT models feature aluminium housing, body and top-cap in polyester powder coat finish ISO 9227/12944 - ISO 9223 (C5)
- UV stabilised transparent polycarbonate diffuser
- UV and heat stabilised high-transparency polycarbonate optics. The optical unit compartment features superior heat dissipation and IK10-rated impact resistance grating specific light distributions
- The COMFORT options are designed to optimise visual comfort and reduce glare
- Aluminium heat sink
- Anti-ageing custom moulded silicone sealing gasket(s)
- Technopolymer electrical gearbox
- Integral surge protection device (SPD) against mains overvoltages up to 10 kV (CM/DM)
- IP68-rated, loop-through, technopolymer box (WATER-STOP), connected with factory pre-wired H07RN-F cable to the luminaire, for cables Ø 7 - 13.5 mm
- Stainless steel locking hardware
- Floor mounting AISI 304 stainless steel flange plate
- Concrete installation fixing rods are available as accessories (ordered separately)
- Floor mounting stainless steel flange plate to match prefabricated plinths (Base FR) available as accessory for KHA CITY 12 and KHA CITY 12 COMFORT (ordered separately)

Product data

ETIM Group:

EG000027

ETIM Class:

EC000301

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

3220

Luminaire lumen output
[lm]:

1955

Luminaire
wattage [W]:

23 W

Luminous efficacy [lm/W]:

CRI:

Colour
temperature [K]:

3000

Colour /
Finishing:

AN-96 / Anthracite gray / Textured

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK10 24J xx9

Protection class:

Optic:

C/EW - Circular Extra-Wide

Net weight [kg]:

7.4

Overall diameter [mm]:

155

Overall height [mm]:

1200

Mechanical features

Shape:

Round ≤ 150 mm

Housing material:

Aluminium

Diffuser material:

Plastic

Glow wire test [°C]:

650 °C

Frontal exposed area [m²]:

0.19

Lateral exposed area [m²]:

0.19

Top exposed area [m²]:

0.02

Electrical features

Voltage type:

Input voltage [V AC]:

220/240

Input frequency [Hz]:

220-240V 0/50/60Hz

Power factor / COS Φ:

>0.9

Surge protection | Common [kV]:

10.000000

Surge protection | Differential [kV]:

10.000000

Inrush current [A/μs]:

26 / 180

C10 1.5 mm²:

C16 2.5 mm²:

B10 1.5 mm²:

B16 2.5 mm²:

Installation

Application area:

Outdoor

Mounting type:

Bollard and column

Min. ambient temperature [°C]:

-25

Max. ambient temperature [°C]:

Min. distance from lighted object [m]:

0.50

Light features

MacAdam:

Lumen maintenance:

L80B10@220000h

Distribution of light emission:

Direct

Luminous Intensity Class:

G*6

Zero light pollution (ULR = 0%):

IPEA* (road lighting):

IPEA* (large areas, roundabouts):

A+

IPEA* (cycle-pedestrian):

IPEA* (green areas):

IPEA* (historic city centers):

A3+

Photometric data

Photometric Lvk KHA CITY COMFORT 12 C/EW 1

Technical drawings

Tech Design KHA CITY COMFORT 12 C/EW 1++

Optional accessories

KHA CITY 12

	Part number	Colour / Finishing	Description	Downloads
	3114402		AISI 316 stainless steel floor installation base	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KHA CITY - 3114402
	14049320		Concrete mounting adaptor with stainless steel plate and galvanised steel rods	Add to technical datasheetRemove from technical datasheet Downloads Documentation: KHA CITY - 14049320
