SMALL LINE PL REFLECTOR
SMALL LINE PL REFLECTOR
SMALL LINE PL REFLECTOR

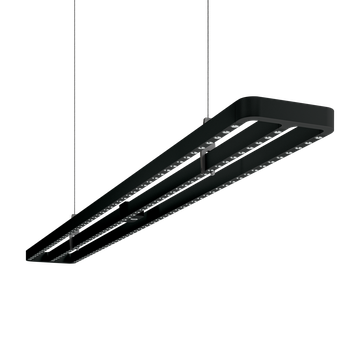

SMALL LINE PL REFLECTOR - 1

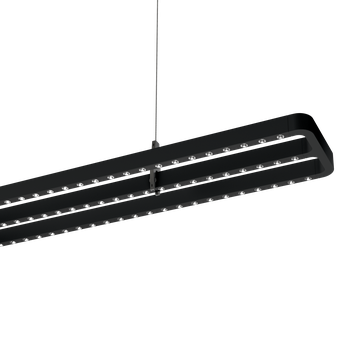

SMALL LINE PL REFLECTOR - 2

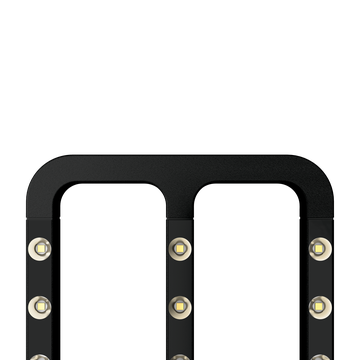

SMALL LINE PL REFLECTOR - 3

SMALL LINE PL REFLECTOR

Part number 3115695
  • Suspended, LED luminaire for indoor, comprising:
  • - Extruded aluminium profile housing, die-cast aluminium end caps, steel sheet canopy, painted
  • - Slender plates with open spaces give the luminaire a uniquely delicate design
  • - Direct / indirect light distribution
  • - Gear tray with high-shine multifaceted reflectors (metallized with ultra-pure aluminium) for maximum luminaire efficiency and neutral colour rendering
  • - Colour tolerance according to MacAdam ≤ 3 SDCM
  • - Complete with steel suspension cable (1.5 m) and canopy
  • - The luminaire unit is attached to the cable suspension without tools using clips
  • - Power is supplied via the cable suspension, no additional supply cable is required
  • - VDU application suitable acc. to EN 12464-1
  • - Sensor device available with task oriented PIR detector and daylight control
  • - Special colour versions available. Consult factory
  • - Bluetooth sensor component for use with dimSMART! light control
  • - Design by BÜRO SOMMER

Product data

ETIM Group:
EG000027
ETIM Class:
EC001743

General information

Lampholder:
LED
Light source:
LED
Lightsource lumen output
[lm]:
14430
Luminaire lumen output
[lm]:
10910
Luminaire
wattage [W]:
83 W
Luminous efficacy [lm/W]:
131
CRI:
80
Colour
temperature [K]:
4000
Colour /
Finishing:
BK-RAL9005 / Black RAL9005 / Textured
IP degree
of protection:
IP20
Impact resistance / impact energy:
IK03 0.35J xx1
Protection class:
I
Optic:
S/C - Symmetric direct-indirect
Beam
angle:
2 x 37°
Net weight [kg]:
2.594
Overall length [mm]:
1556
Overall width [mm]:
132
Overall height [mm]:
26

Mechanical features

Shape:
Rectangular
Housing material:
Aluminium
Diffuser material:
No diffuser
Glow wire test [°C]:
650 °C

Electrical features

Voltage type:
AC
Input voltage [V AC]:
220/240
Input frequency [Hz]:
220-240V 50/60Hz
Power factor / COS Φ:
>0.9

Installation

Application area:
Indoor
Mounting type:
Suspended
Min. ambient temperature [°C]:
10
Max. ambient temperature [°C]:
40

Light features

MacAdam:
3
Lumen maintenance:
L80B10@50000h
Distribution of light emission:
Direct/Indirect
DFF - Downward Flux Fraction [%]:
40
UFF - Upward Flux Fraction [%]:
60
UGR max.:
9.0

Photometric data

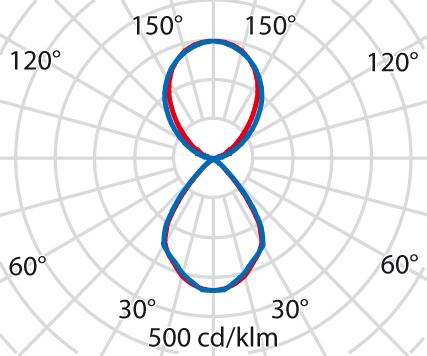

Photometric Lvk SMALL LINE PL REFLECTOR 1

Technical drawings

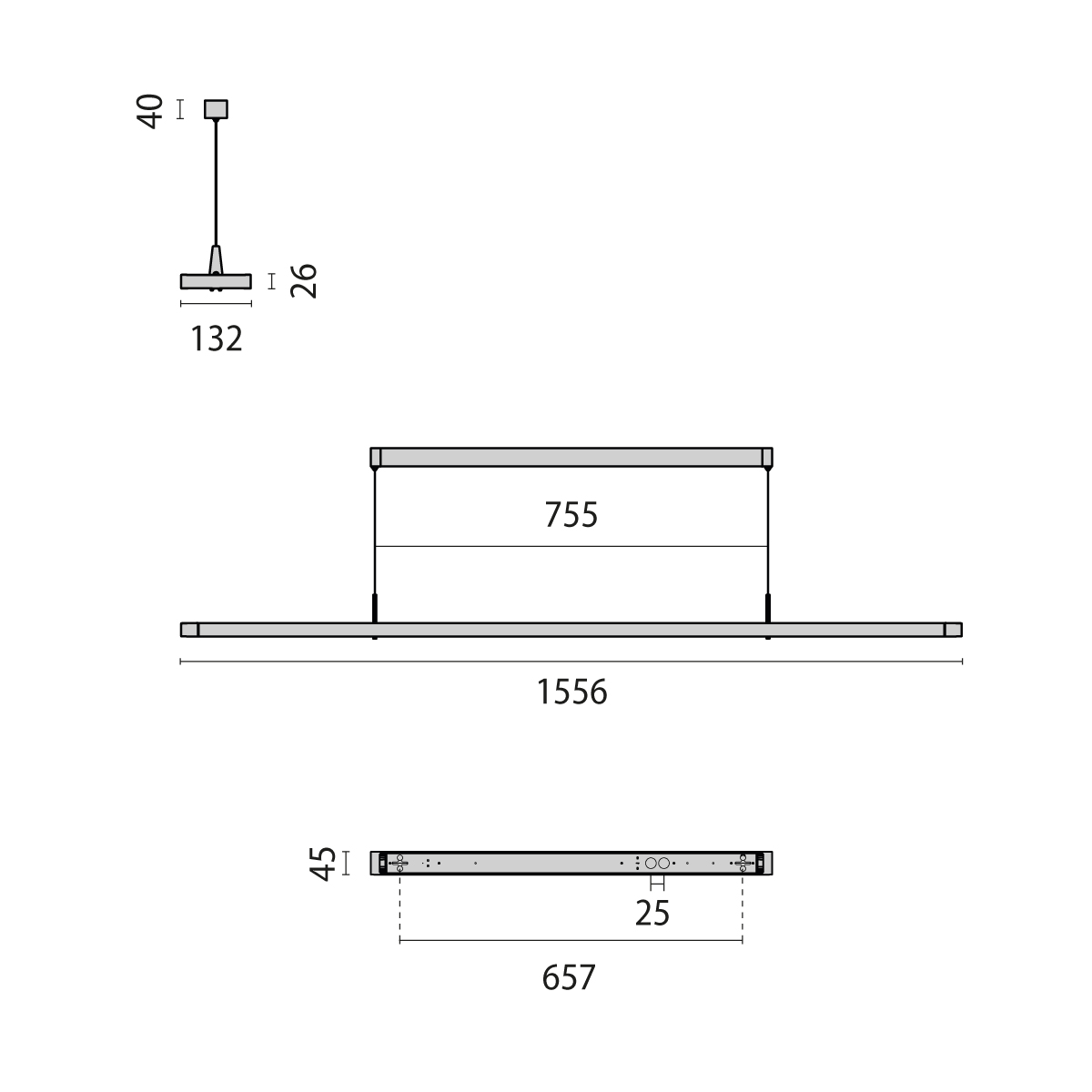

Tech Design SMALL LINE PL REFLECTOR 1++
