Name: STRIP SQUARE+ 12 A2/M30 830 GR11
Brand: Performance in Lighting
SKU: 3109277

Product data

ETIM Group:

EG000027

ETIM Class:

EC002892

General information

Lampholder:

LED

Light source:

LED

Lightsource lumen output
[lm]:

2000

Luminaire lumen output
[lm]:

1374

Luminaire
wattage [W]:

14 W

Luminous efficacy [lm/W]:

98

CRI:

80

Colour
temperature [K]:

3000

Colour /
Finishing:

GR-11 / Anodised grey / Matt

IP degree
of protection:

IP66

Impact resistance / impact energy:

IK10 20J xx9

Protection class:

II

Optic:

A18/M - Asymmetric Medium

Net weight [kg]:

3.45

Overall length [mm]:

528

Overall width [mm]:

139

Overall height [mm]:

71

Mechanical features

Shape:

Rectangular

Housing material:

Aluminium

Diffuser material:

Glass

Electrical features

Voltage type:

AC

Input voltage [V AC]:

220/240

Input frequency [Hz]:

50/60

Power factor / COS Φ:

>0.9

Inrush current [A/μs]:

5 / 50

C10 1.5 mm²:

52

C16 2.5 mm²:

85

B10 1.5 mm²:

31

B16 2.5 mm²:

50

Installation

Application area:

Outdoor

Mounting type:

Architectural floodlight

Min. ambient temperature [°C]:

-20

Max. ambient temperature [°C]:

40

Light features

MacAdam:

3

Lumen maintenance:

L80B10@60000h

Distribution of light emission:

Direct

Zero light pollution (ULR = 0%):

STRIP SQUARE+ 528

Product data

General information

Mechanical features

Electrical features

Installation

Light features

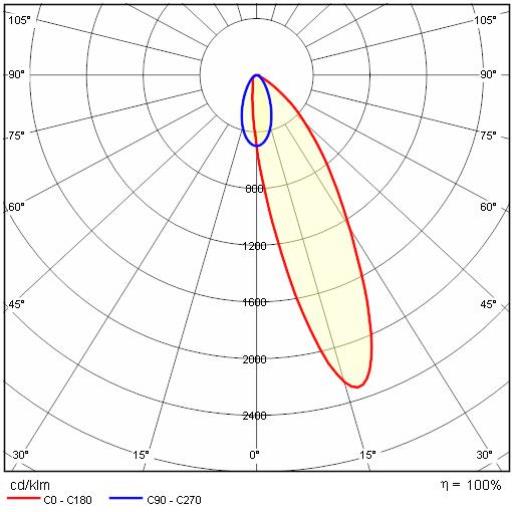

Photometric data
